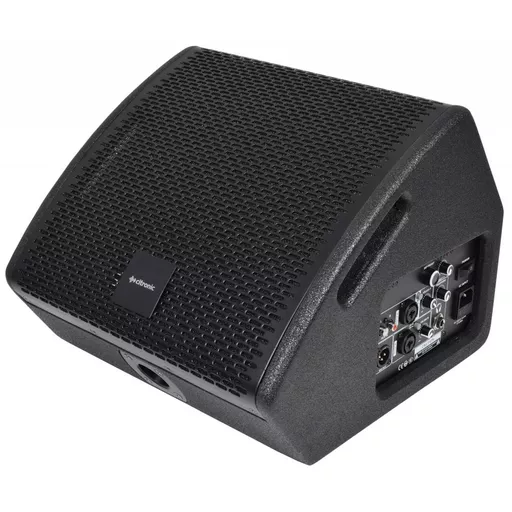

The Citronic CM10A is a compact 10-inch active wedge monitor designed for stage foldback, musician practice, keyboard and electronic drum amplification, presentations and small live sound applications. Its low-profile wooden cabinet delivers clear, powerful monitoring without occupying excessive stage space.

A 10-inch coaxial driver combines the main low-frequency cone with a centrally positioned 1.75-inch titanium compression driver. This concentric arrangement helps align the low and high frequencies from a single point, producing focused and consistent full-range sound.

The built-in 250W RMS Class-D bi-amplifier provides sufficient output for demanding stage environments, while two bass-reflex ports add depth and impact to the low-frequency response.

Bluetooth, Mic and Line Connectivity

The CM10A has two independently controlled input channels. Input A accepts a line-level signal through a combined XLR/jack socket or stereo RCA connections, while Input B can be switched between microphone and line-level operation through a second combined XLR/jack socket.

Bluetooth connectivity allows music or backing tracks to be played wirelessly from a compatible smartphone, tablet or computer. This makes the CM10A particularly useful as a musician’s practice monitor or for playing background music between performances.

An XLR Mix output carries the combined input and Bluetooth signals to another active monitor or PA speaker. A separately controlled 6.35mm headphone output also provides personal monitoring when required.

Five DSP Profiles

Five selectable DSP profiles adjust the monitor’s tonal response for different applications:

• Normal for general-purpose operation
• DJ for music playback
• Voice for speech and vocal monitoring
• Live for stage performances
• Flat for a more neutral response

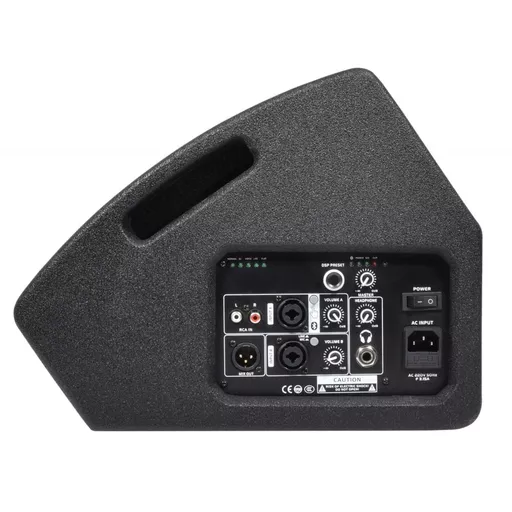

The selected profile is clearly shown by indicator LEDs on the rear control panel.

Wedge Monitor or Compact PA Speaker

The textured wooden enclosure is protected by an arched powder-coated steel grille. Openings at each side of the grille also act as carrying handles, making the monitor easier to move between performances.

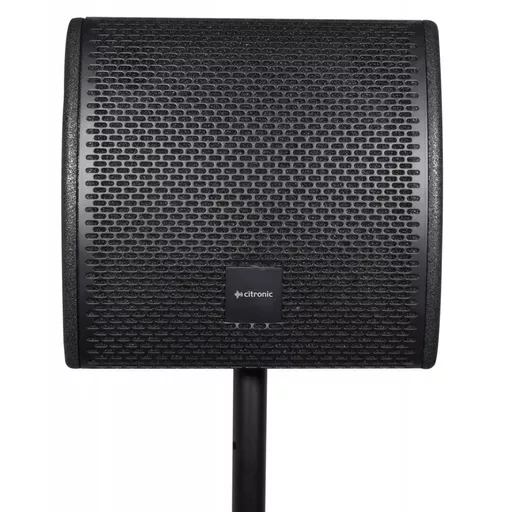

Although designed primarily as a floor wedge, the CM10A has a standard 35mm pole socket for use as a compact PA speaker. M8 mounting points provide further options for suitable fixed installations.

Key Features

• Compact active stage wedge monitor
• Suitable for stage foldback, musician practice and small PA applications
• High-power Class-D bi-amplifier
• 250W RMS output
• 10-inch coaxial low-frequency driver
• Two-inch low-frequency voice coil
• Centrally mounted 1.75-inch titanium compression driver
• Dual bass-reflex ports
• Frequency response: 65Hz–20kHz
• Sensitivity: 95dB
• Durable texture-coated wooden enclosure
• Arched powder-coated steel protective grille
• Integrated side carrying handles
• Bluetooth receiver for wireless audio playback
• Two independently controlled input channels
• Line input through combined XLR/jack and stereo RCA connections
• Switchable microphone/line input through combined XLR/jack
• Individual input level controls
• Master output-level control
• XLR Mix output for connecting another active speaker
• 6.35mm stereo headphone output with independent volume control
• Five DSP profiles: Normal, DJ, Voice, Live and Flat
• Signal, clip, power and Bluetooth status indicators
• Standard 35mm pole-mount socket
• M8 mounting points
• Supplied with an IEC mains lead
• 230V AC, 50Hz power supply
• Dimensions: 355 × 350 × 275mm
• Weight: 9.87kg

Frequently Asked Questions

Q: Is the Citronic CM10A an active stage monitor?

A: Yes. It has a built-in 250W RMS Class-D bi-amplifier, so it does not require a separate external power amplifier.

Q: Can the CM10A play music through Bluetooth?

A: Yes. A compatible smartphone, tablet or computer can be paired with the built-in Bluetooth receiver for wireless music or backing-track playback.

Q: Can a microphone be connected directly?

A: Yes. Input B has a combined XLR/jack connection that can be switched between microphone and line-level operation.

Q: Can the CM10A be used as a conventional PA speaker?

A: Yes. In addition to floor-wedge operation, it has a standard 35mm pole socket for mounting on a suitable speaker stand. It also has M8 mounting points for appropriate fixed installations.

Q: Can another active speaker be connected?

A: Yes. The XLR Mix output carries the combined signal from both input channels and Bluetooth to another compatible active speaker or monitor.

Q: What do the five DSP settings do?

A: The Normal, DJ, Voice, Live and Flat profiles adjust the monitor’s tonal response for different sources and applications.

Q: Does the CM10A have a headphone output?

A: Yes. It has a 6.35mm stereo headphone output with its own volume control for personal monitoring.
