The Citronic CM12A is a powerful 12-inch active stage monitor designed to give performers clear and focused sound during live performances, rehearsals and practice sessions. Its built-in Class-D bi-amplifier delivers 300W RMS and 600W peak output, providing the power needed for dependable stage foldback while retaining a relatively compact footprint.

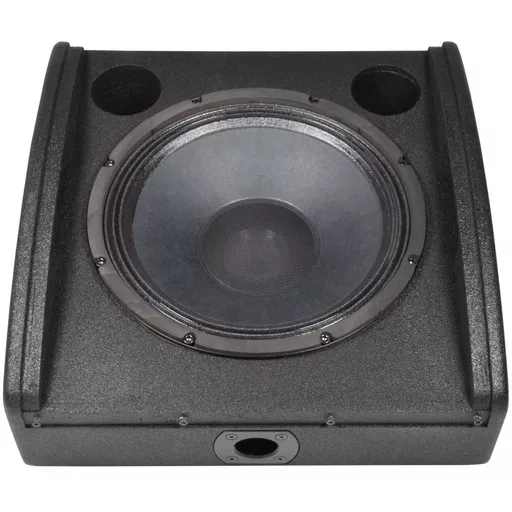

A coaxial driver arrangement places the 44mm titanium compression driver within the main 12-inch speaker. This helps align the high and low frequencies from a single point, producing a focused sound that is well suited to close-range monitoring. Two bass ports support the low-frequency response, helping the CM12A deliver a full sound for vocals, instruments and music playback.

Flexible Connections for Stage and Rehearsal Use

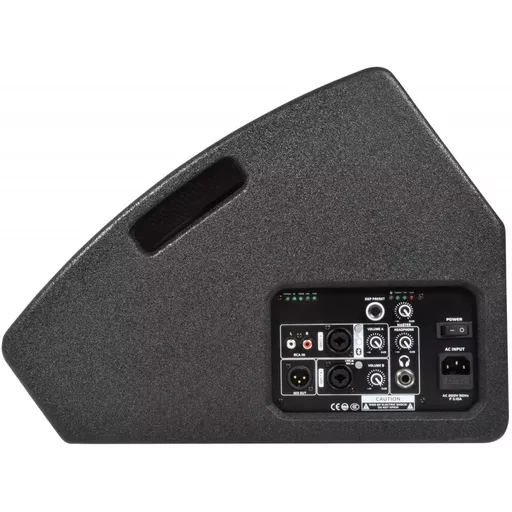

Two independently controlled input channels allow the CM12A to work with a wide range of equipment. Input A accepts a line-level signal through its combined XLR and jack connection or stereo RCA inputs. Input B can be switched between microphone and line-level operation, allowing a microphone to be connected directly when a separate mixing desk is not required.

Bluetooth connectivity provides a convenient way to play music or backing tracks from a compatible smartphone. This makes the CM12A useful for musicians practising with recorded material, fitness instruction, presentations and small performances.

An XLR Mix output carries the combined signal from Input A, Input B and Bluetooth to another active speaker or monitor. A separate 6.35mm stereo headphone output is also provided, complete with its own volume control for personal monitoring.

Five DSP Sound Profiles

The built-in DSP section offers Normal, DJ, Voice, Live and Flat settings. These profiles adjust the speaker’s response for different sources and applications, making it easier to achieve a suitable sound without requiring additional processing equipment.

The Voice setting can be useful when speech clarity is important, while the Live and Normal profiles provide practical starting points for stage monitoring. DJ and Flat settings offer further options for music playback and systems using external sound processing.

Active Floor Monitor or Compact PA Speaker

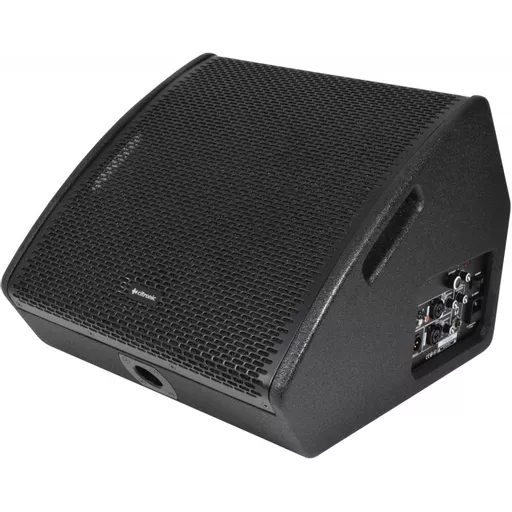

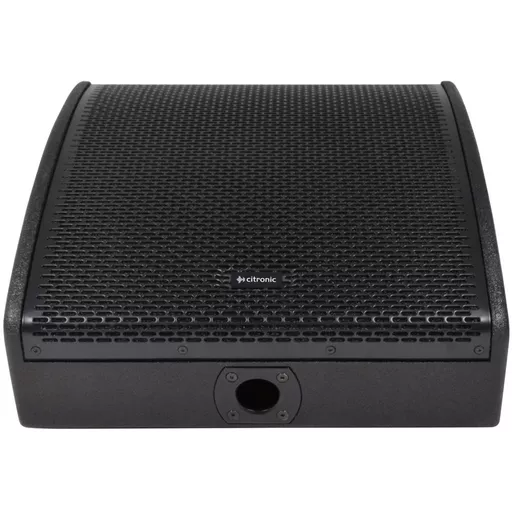

The wedge-shaped wooden enclosure allows the CM12A to sit securely on the floor and direct sound towards the performer. Its texture-coated finish and powder-coated steel grille help protect the cabinet during regular transport and stage use. Openings at each side of the grille provide convenient carrying points.

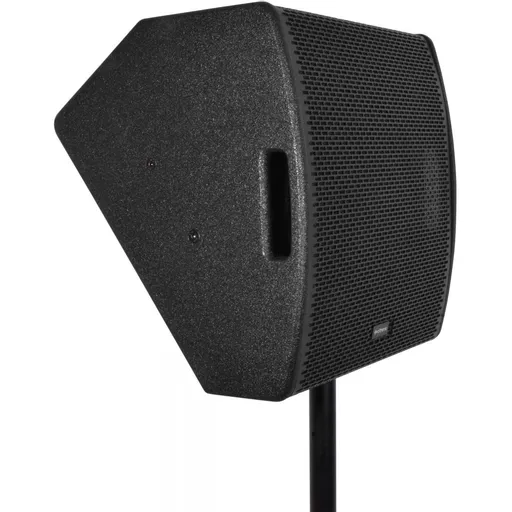

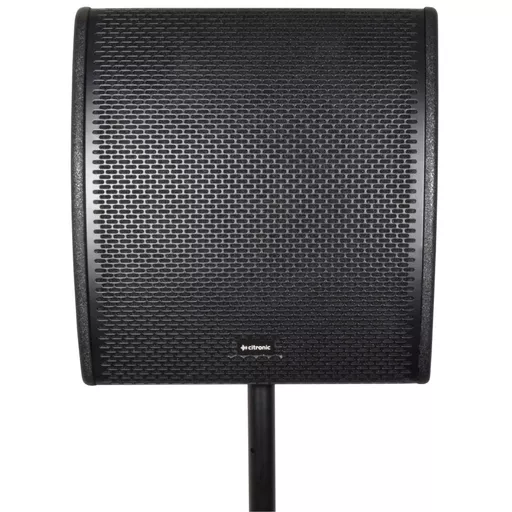

A 35mm pole socket also allows the CM12A to be mounted on a suitable speaker stand and used as a compact PA speaker. M8 mounting points provide additional installation options, making this a versatile choice for performers, bands, rehearsal rooms, schools, venues and mobile sound systems.

Key Features

• 12-inch active stage wedge monitor
• 300W RMS and 600W peak output
• High-power Class-D bi-amplifier
• 12-inch coaxial main driver with concentric tweeter
• 44mm titanium compression high-frequency driver
• 75mm main driver voice coil
• Two bass ports for enhanced low-frequency performance
• Frequency response of 55Hz to 20kHz
• 96dB sensitivity
• Five DSP profiles: Normal, DJ, Voice, Live and Flat
• Built-in Bluetooth receiver
• Input A with combined XLR/jack and stereo RCA connections
• Input B with switchable microphone or line-level combined XLR/jack connection
• Independent Input A, Input B and master volume controls
• XLR Mix output for connecting another active speaker or monitor
• 6.35mm stereo headphone output with independent volume control
• Durable texture-coated wooden cabinet
• Arched powder-coated steel grille with side carrying openings
• 35mm pole mounting socket
• M8 mounting points
• Supplied with an IEC mains lead
• Dimensions: 445 x 410 x 335mm
• Weight: 12.10kg

Frequently Asked Questions

Q: Does the Citronic CM12A require a separate amplifier?

A: No. The CM12A is an active monitor with a built-in Class-D bi-amplifier delivering 300W RMS and 600W peak output.

Q: What are the five DSP settings?

A: The available DSP profiles are Normal, DJ, Voice, Live and Flat. These provide different sound responses for speech, live performance, music playback and externally processed audio.

Q: Can I connect a microphone directly to the CM12A?

A: Yes. Input B has a combined XLR and jack connection that can be switched between microphone and line-level operation.

Q: Can I play music through the monitor using Bluetooth?

A: Yes. The built-in Bluetooth receiver allows music and backing tracks to be played from a compatible smartphone or other Bluetooth audio device.

Q: Can another active speaker be connected to the CM12A?

A: Yes. The XLR Mix output sends the combined signals from Input A, Input B and Bluetooth to another active speaker or stage monitor.

Q: Can the CM12A be used as a conventional PA speaker?

A: Yes. In addition to being used as a floor wedge, the CM12A has a 35mm pole socket for mounting on a suitable speaker stand.

Q: Is the CM12A suitable for keyboards and electronic drums?

A: Yes. Its line-level inputs, 12-inch driver and 300W RMS amplifier make it suitable for keyboard monitoring, electronic drums and other electronic instruments.
