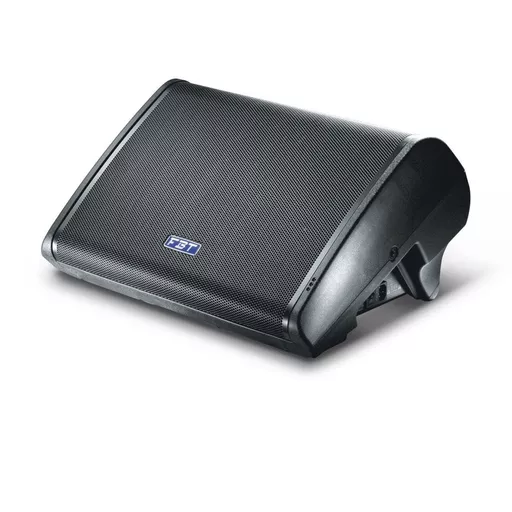

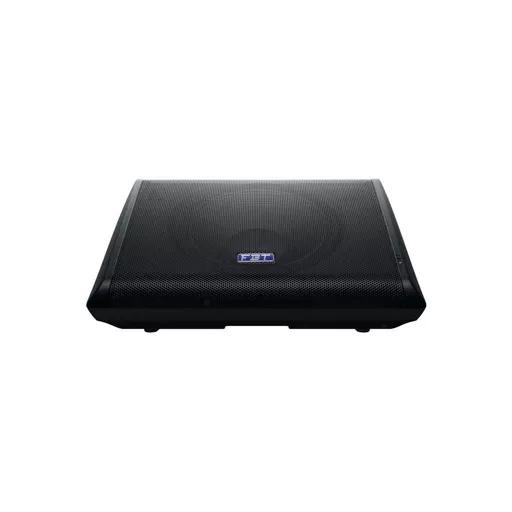

The FBT StageMaxX 12MA is a professional 12-inch active stage monitor designed to provide powerful, accurate foldback while occupying minimal space around the performer. Its coaxial B&C transducers, Class-D bi-amplification and onboard DSP deliver the clarity and output required for live music, touring, theatres, clubs and DJ monitoring.

The two-way coaxial design positions the high-frequency driver within the centre of the 12-inch woofer. This aligns the acoustic centres of both drivers, helping the StageMaxX 12MA produce consistent 90° conical coverage and a focused sound across the listening area.

A frequency response of 60Hz to 20kHz at -6dB provides full-range reproduction for vocals, guitars, keyboards, electronic instruments and playback material.

500W RMS Bi-Amplified Performance

Separate Class-D amplifier channels power the low and high-frequency drivers. The 12-inch woofer receives 400W RMS, while the high-frequency compression driver is powered by a dedicated 100W RMS amplifier.

The system produces a continuous maximum SPL of 124dB and a peak maximum SPL of 130dB. Integrated DSP processing, dynamic low-frequency equalisation and protective limiting help maintain clear performance when operating at higher levels.

The custom 12-inch B&C woofer uses a 2.5-inch voice coil, while the 1-inch exit B&C compression driver is fitted with a 1.7-inch voice coil.

Dual Monitor Angles

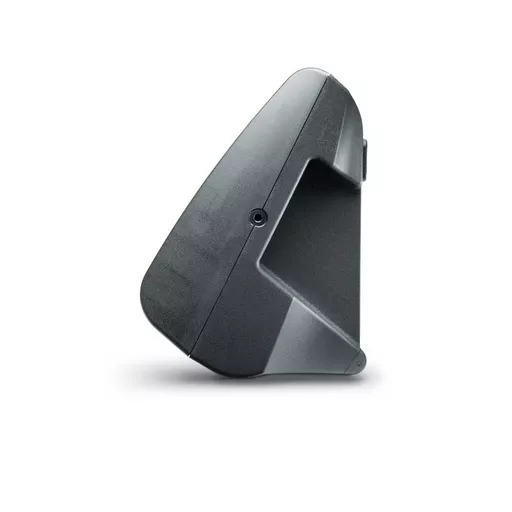

The StageMaxX 12MA can be positioned at two different monitoring angles. The 35° position is suitable for an individual performer listening at a closer distance, while the 55° position extends the coverage towards performers positioned further away or a group sharing the same monitor mix.

This dual-angle cabinet design allows the monitor to be positioned more accurately without requiring additional stands or supports during normal floor use.

Four DSP Presets

Four factory DSP presets adapt the response of the StageMaxX 12MA for different applications:

• Original
• Hi-Cut/Drum Fill
• Lo-Cut/Double
• FOH

The Original preset is designed for conventional floor monitoring. Hi-Cut/Drum Fill is intended for high-level monitoring and drum fill applications, while Lo-Cut/Double is suitable when using two monitors together. The FOH setting optimises the response when the cabinet is used away from the floor or as a front-of-house speaker.

A switchable high-pass filter provides additional control when the monitor is being used with a subwoofer or when low-frequency output needs to be reduced.

Input and Link Connections

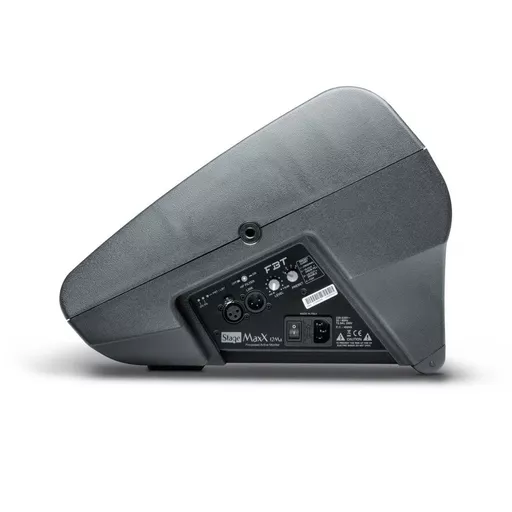

A balanced combined XLR and jack input accepts a line-level signal from a mixing console or other compatible audio source. A level control allows the input sensitivity to be adjusted from the rear panel.

The balanced XLR Link output passes the incoming signal to another active monitor or PA speaker. This makes it possible to distribute the same audio signal to multiple StageMaxX monitors.

Lightweight and Durable Cabinet

The enclosure is manufactured from gas-injected polypropylene, providing a rigid and durable cabinet while keeping the overall weight to 14.6kg. A heavy-duty perforated steel grille protects the coaxial drivers from damage during transport and regular stage use.

Three integrated handles make the monitor easier to lift, carry and reposition. Replaceable low-friction feet also help the cabinet slide across a stage when small positioning adjustments are required.

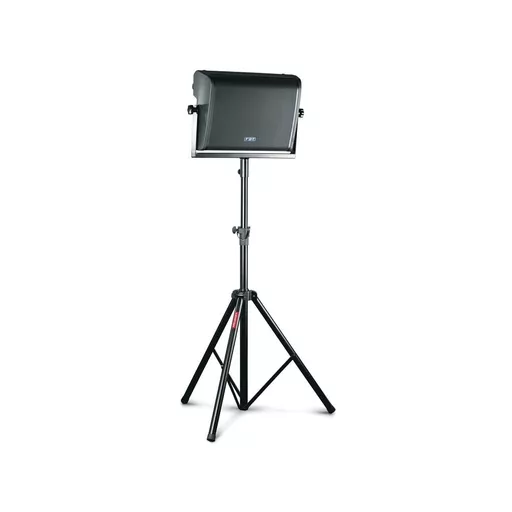

Two M10 mounting points allow the StageMaxX 12MA to be used with compatible optional accessories for wall mounting, suspended installation or mounting on a suitable speaker stand. Fixed or suspended installations should always be completed by a suitably qualified installer.

Key Features

• Professional 12-inch active coaxial stage monitor
• Two-way bi-amplified bass-reflex design
• 400W RMS low-frequency amplifier
• 100W RMS high-frequency amplifier
• 800W LF and 200W HF peak amplifier output
• Custom 12-inch B&C woofer with 2.5-inch voice coil
• 1-inch exit B&C compression driver with 1.7-inch voice coil
• Frequency response of 60Hz to 20kHz at -6dB
• Continuous maximum SPL of 124dB
• Peak maximum SPL of 130dB
• Consistent 90° conical dispersion
• 35° angle for individual performer monitoring
• 55° angle for group or longer-distance monitoring
• Four factory DSP presets
• Original, Hi-Cut/Drum Fill, Lo-Cut/Double and FOH settings
• Switchable high-pass filter
• Dynamic low-frequency equalisation
• Balanced combined XLR and jack input
• Adjustable input level control
• Balanced XLR Link output
• Three front-mounted status indicators
• Gas-injected polypropylene enclosure
• Heavy-duty perforated steel grille
• Three integrated carrying handles
• Replaceable low-friction feet
• Two M10 mounting points
• Compatible with optional wall and speaker stand mounting accessories
• Manufactured in Italy
• Dimensions: 550 x 289 x 392mm
• Weight: 14.6kg

Frequently Asked Questions

Q: Does the FBT StageMaxX 12MA require a separate amplifier?

A: No. It is an active monitor with built-in Class-D amplification providing 400W RMS for the woofer and 100W RMS for the high-frequency driver.

Q: What are the two floor monitoring angles?

A: The cabinet can be positioned at either 35° or 55°. The 35° position is intended for closer individual monitoring, while the 55° angle provides coverage for performers positioned further away or several people sharing the monitor.

Q: Which DSP presets are available?

A: The four factory presets are Original, Hi-Cut/Drum Fill, Lo-Cut/Double and FOH.

Q: Is the StageMaxX 12MA suitable for drum monitoring?

A: Yes. It has a dedicated Hi-Cut/Drum Fill DSP preset and produces a peak maximum SPL of 130dB, making it suitable for high-level drum monitoring applications.

Q: Can another active monitor be connected?

A: Yes. The balanced XLR Link output passes the incoming audio signal to another active monitor or PA speaker.

Q: Can the StageMaxX 12MA be mounted on a speaker stand?

A: Yes, but a compatible optional stand adaptor is required. The FOH DSP preset is provided for applications where the monitor is used away from the floor.

Q: Can it be used for fixed installation?

A: Yes. Two M10 mounting points allow the monitor to be installed using compatible optional mounting hardware. Installation should be carried out by a suitably qualified professional.

Q: Does the StageMaxX 12MA include Bluetooth?

A: No. The StageMaxX 12MA does not have Bluetooth. Audio is connected through its balanced XLR/jack input.
