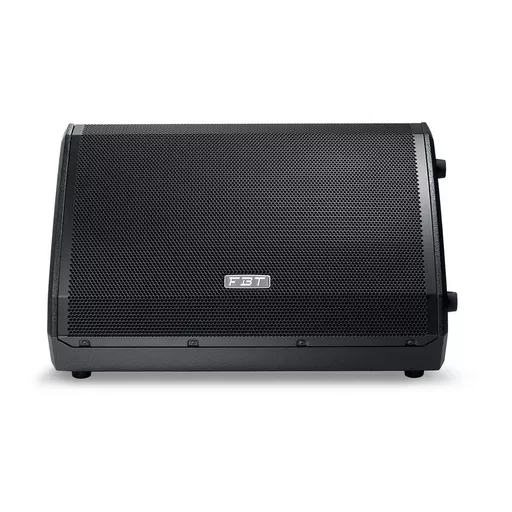

The FBT Ventis 112MA is a professional 12-inch active stage monitor designed for live sound, touring, theatres, clubs, houses of worship and fixed installations. Its coaxial driver arrangement, powerful bi-amplification and advanced onboard DSP provide the clarity, output and control needed for demanding performance environments.

A custom 12-inch low-frequency woofer and 1-inch high-frequency driver are arranged in a coaxial configuration. This positions both drivers on the same acoustic axis, helping the monitor deliver consistent full-range sound across its 90° conical coverage area.

The Ventis 112MA produces a continuous maximum SPL of 126dB and a peak maximum SPL of 132dB. Its frequency response extends from 55Hz to 20kHz at -6dB, providing detailed vocal reproduction alongside the low-frequency performance required for instruments and playback material.

Dedicated LF and HF Amplification

The bi-amplified design uses separate amplifier sections for the low and high-frequency drivers. The 12-inch woofer is powered by a 700W RMS amplifier, while a dedicated 200W RMS amplifier drives the high-frequency section.

This arrangement allows each amplifier and driver to be optimised for its particular frequency range, supporting clear reproduction at higher listening levels. Custom B&C transducers are used throughout the system.

Advanced DSP with Factory and User Presets

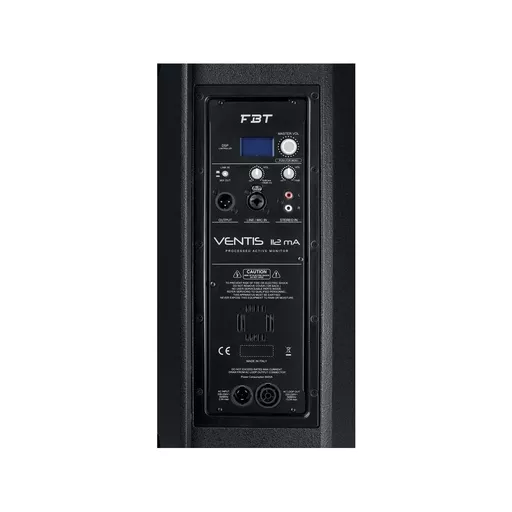

A rear-mounted DSP display provides access to the monitor’s processing and setup options. The menu is controlled using a single rotary encoder with push-to-select operation, making adjustments straightforward during setup.

Six factory presets are provided for different stage and sound reinforcement applications:

• Original
• Hi-Cut/Drumfill
• Lo-Cut/Twin
• Touring
• Vocal
• FOH

Two additional user memories allow custom settings to be created and saved. Each user memory provides five parametric equaliser filters for more detailed adjustment.

Further DSP controls include a high-pass filter, three-band low, mid and high equalisation, a delay adjustable between 0 and 10 metres and a choice of MIN, NORMAL or MAX limiter modes.

Flexible Audio Connections

A balanced combined XLR and jack input accepts microphone or line-level signals, with a Mic/Line selector allowing the input to be matched to the connected source. Stereo RCA inputs are also provided for connecting suitable playback equipment.

An XLR Link output passes the audio signal to another active monitor or PA speaker. Separate level controls provide convenient adjustment of the connected sources.

Stage Monitor, FOH Speaker or Fixed Installation

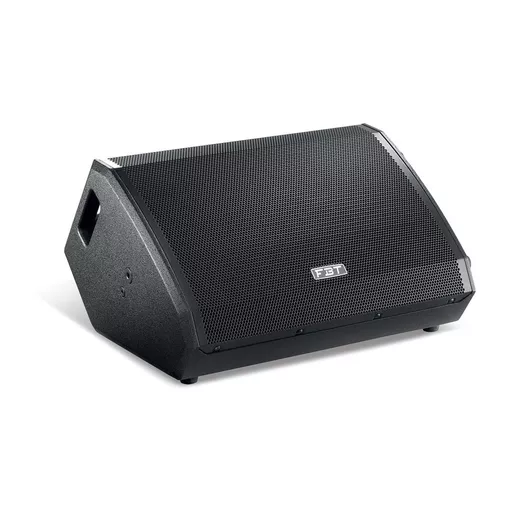

The wedge-shaped enclosure positions the Ventis 112MA at the correct angle for performer monitoring. Its 15mm birch plywood construction, internal bracing and scratch-resistant black finish provide the durability required for regular stage and touring use.

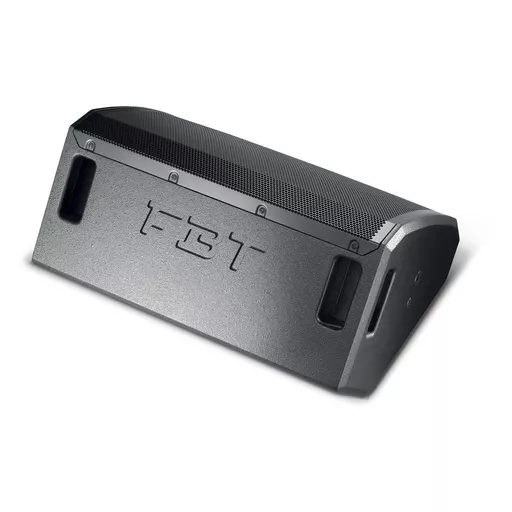

Two integrated wooden handles assist with transportation and positioning. A 35mm pole socket allows the monitor to be mounted vertically on a suitable speaker stand and used as a front-of-house PA speaker.

Threaded inserts are also provided for use with the optional mounting bracket. This allows the Ventis 112MA to be incorporated into permanent sound installations when fitted by a suitably qualified installer.

Key Features

• Professional 12-inch active coaxial stage monitor
• Two-way bi-amplified design
• 700W RMS low-frequency amplifier
• 200W RMS high-frequency amplifier
• 1400W LF and 400W HF peak amplifier output
• Custom 12-inch B&C woofer with 2.5-inch voice coil
• 1-inch exit B&C high-frequency driver with 1.7-inch voice coil
• Frequency response of 55Hz to 20kHz at -6dB
• Maximum continuous SPL of 126dB
• Maximum peak SPL of 132dB
• 90° conical dispersion
• Six factory DSP presets
• Original, Hi-Cut/Drumfill, Lo-Cut/Twin, Touring, Vocal and FOH settings
• Two user-programmable DSP memories
• Five parametric equaliser filters available for each user memory
• Adjustable high-pass filter
• Low, mid and high equalisation controls
• Adjustable delay from 0 to 10 metres
• MIN, NORMAL and MAX limiter modes
• Rear-mounted DSP display with push-to-select rotary control
• Balanced combined XLR/jack input
• Switchable microphone and line-level input sensitivity
• Stereo RCA input
• XLR Link output for connecting another active speaker
• Durable 15mm birch plywood enclosure
• Scratch and scuff-resistant black finish
• Internally braced cabinet
• Two integrated carrying handles
• 35mm pole mounting socket
• Threaded inserts for an optional mounting bracket
• Dimensions: 558 x 310 x 452mm
• Weight: 18.5kg

Frequently Asked Questions

Q: Does the FBT Ventis 112MA require a separate amplifier?

A: No. The Ventis 112MA is an active bi-amplified monitor with dedicated 700W RMS low-frequency and 200W RMS high-frequency amplifier sections.

Q: What DSP presets are available?

A: The six factory presets are Original, Hi-Cut/Drumfill, Lo-Cut/Twin, Touring, Vocal and FOH.

Q: Can I create and save my own DSP settings?

A: Yes. Two user memories are provided, with five parametric equaliser filters available for each custom setting.

Q: Can a microphone be connected directly to the Ventis 112MA?

A: Yes. The combined XLR and jack input can accept microphone or line-level signals using the Mic/Line selector.

Q: Can another active monitor be connected?

A: Yes. The XLR Link output can pass the incoming audio signal to another active monitor or PA speaker.

Q: Can the Ventis 112MA be used as a front-of-house speaker?

A: Yes. It has a 35mm pole socket for vertical stand mounting and includes a dedicated FOH DSP preset.

Q: Does the Ventis 112MA have Bluetooth?

A: No. The Ventis 112MA does not include Bluetooth. Audio sources are connected through its XLR/jack or stereo RCA inputs.

Q: Is the Ventis 112MA suitable for fixed installation?

A: Yes. Threaded mounting points allow it to be used with the appropriate optional bracket. Any suspended or fixed installation should be completed by a suitably qualified installer using compatible mounting hardware.
