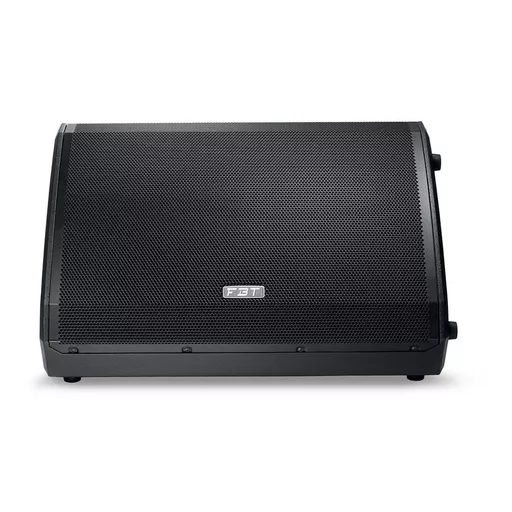

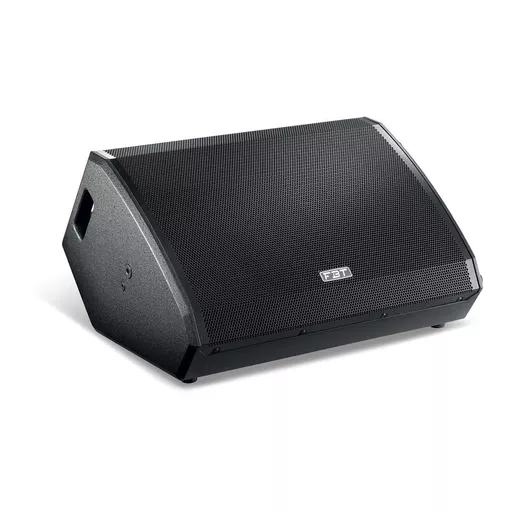

The FBT Ventis 115MA is a professional 15-inch active stage monitor created for performers, sound engineers, touring systems and permanent venue installations. Its high-output bi-amplified design combines powerful low-frequency reproduction with the clarity and focused coverage required for accurate stage monitoring.

A custom 15-inch woofer and 1-inch high-frequency driver are positioned in a coaxial arrangement. Placing both drivers on the same acoustic axis helps produce a consistent full-range response throughout the monitor’s 90° conical coverage area.

With a frequency response extending from 50Hz to 20kHz at -6dB, the Ventis 115MA is particularly suitable for sources that require strong low-frequency performance. This includes electronic drums, keyboards, bass instruments, DJ monitoring and full-range music playback.

The system produces a continuous maximum SPL of 127dB and a peak maximum SPL of 132dB, giving it the output required for demanding live stages.

Dedicated Bi-Amplified Performance

The low and high-frequency drivers are powered by separate amplifier sections. A 700W RMS amplifier drives the 15-inch woofer, while a dedicated 200W RMS amplifier powers the high-frequency driver.

Custom B&C transducers are used throughout the system. The 15-inch woofer has a 2.5-inch voice coil, while the 1-inch exit high-frequency driver uses a 1.7-inch voice coil.

This combination provides the output and low-frequency extension of a larger monitor while maintaining the vocal and instrumental detail needed for professional foldback applications.

Configurable Onboard DSP

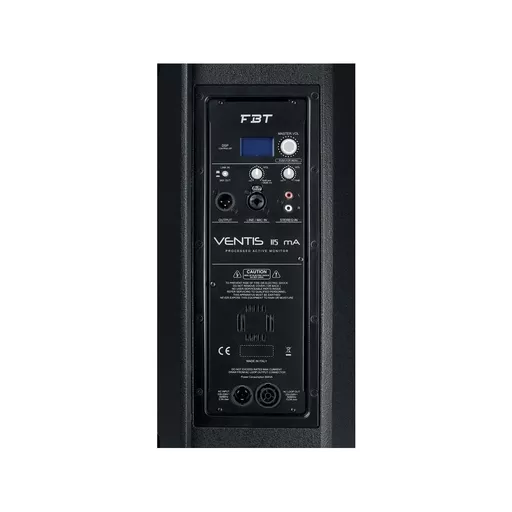

An integrated DSP system provides detailed control over the response of the Ventis 115MA. Settings are accessed through a rear-mounted display using a single push-to-select rotary control.

Six factory presets cover a range of monitoring and sound reinforcement applications:

• Original
• Hi-Cut/Drumfill
• Lo-Cut/Twin
• Touring
• Vocal
• FOH

The dedicated Hi-Cut/Drumfill setting helps configure the monitor for drum monitoring, while Vocal and Touring profiles provide practical starting points for other live applications.

Two additional user memories allow custom sound profiles to be created and saved. Each memory provides five parametric equaliser filters for detailed system adjustment.

Further processing options include a high-pass filter, low, mid and high equalisation, adjustable delay between 0 and 10 metres and MIN, NORMAL or MAX limiter settings.

Mic, Line and Playback Connections

The Ventis 115MA has a balanced combined XLR and jack input with switchable microphone and line-level sensitivity. This allows it to receive a signal from a mixing console, microphone or other compatible audio source.

Stereo RCA inputs provide an additional connection for suitable playback equipment. An XLR Link output can pass the incoming signal to another active stage monitor or PA speaker.

Separate level controls make it possible to balance the connected sources directly from the rear control panel.

Monitor, FOH and Installation Applications

The cabinet is constructed from 15mm birch plywood with internal bracing and a scratch-resistant black finish. This provides the strength required for regular stage, touring and installation use.

Two integrated wooden handles assist with lifting, transportation and positioning. A 35mm pole mounting socket allows the Ventis 115MA to be placed vertically on a suitable speaker stand and used as a front-of-house PA speaker.

Threaded mounting points are also provided for the compatible optional bracket, allowing the monitor to be incorporated into a professionally designed fixed installation.

Key Features

• Professional 15-inch active stage monitor
• Two-way coaxial bi-amplified design
• 700W RMS low-frequency amplifier
• 200W RMS high-frequency amplifier
• 1400W LF and 400W HF peak amplifier output
• Custom 15-inch B&C woofer with 2.5-inch voice coil
• 1-inch exit B&C high-frequency driver with 1.7-inch voice coil
• Frequency response of 50Hz to 20kHz at -6dB
• Continuous maximum SPL of 127dB
• Peak maximum SPL of 132dB
• Consistent 90° conical dispersion
• Six factory DSP presets
• Original, Hi-Cut/Drumfill, Lo-Cut/Twin, Touring, Vocal and FOH settings
• Two user-programmable DSP memories
• Five parametric equaliser filters for each user memory
• Adjustable high-pass filter
• Low, mid and high equalisation controls
• Adjustable delay from 0 to 10 metres
• Selectable MIN, NORMAL and MAX limiter modes
• DSP display with push-to-select rotary control
• Balanced combined XLR and jack input
• Switchable microphone and line-level input
• Stereo RCA input
• XLR Link output
• Separate input level controls
• Internally braced 15mm birch plywood enclosure
• Scratch and scuff-resistant black finish
• Two integrated carrying handles
• 35mm pole mounting socket
• Threaded inserts for an optional mounting bracket
• Dimensions: 627 x 352 x 516mm
• Weight: 22.3kg

Frequently Asked Questions

Q: Does the FBT Ventis 115MA need a separate amplifier?

A: No. It is an active bi-amplified monitor with dedicated 700W RMS low-frequency and 200W RMS high-frequency amplifier sections.

Q: Is the Ventis 115MA suitable for drum monitoring?

A: Yes. Its 15-inch woofer, 50Hz low-frequency response and dedicated Hi-Cut/Drumfill DSP preset make it particularly suitable for electronic drums and drum fill applications.

Q: What factory DSP presets are included?

A: The six presets are Original, Hi-Cut/Drumfill, Lo-Cut/Twin, Touring, Vocal and FOH.

Q: Can custom DSP settings be saved?

A: Yes. The Ventis 115MA provides two user memories, each with five parametric equaliser filters for creating and storing customised sound profiles.

Q: Can a microphone be connected directly?

A: Yes. The combined XLR and jack input can be switched between microphone and line-level sensitivity.

Q: Can the Ventis 115MA be used as a PA speaker?

A: Yes. A 35mm pole socket allows the cabinet to be mounted vertically on a suitable speaker stand, and a dedicated FOH DSP preset is provided.

Q: Can another active speaker be connected?

A: Yes. The XLR Link output passes the incoming audio signal to another compatible active monitor or PA speaker.

Q: Does the Ventis 115MA include Bluetooth?

A: No. Bluetooth connectivity is not included. Audio sources are connected through the balanced XLR/jack or stereo RCA inputs.
