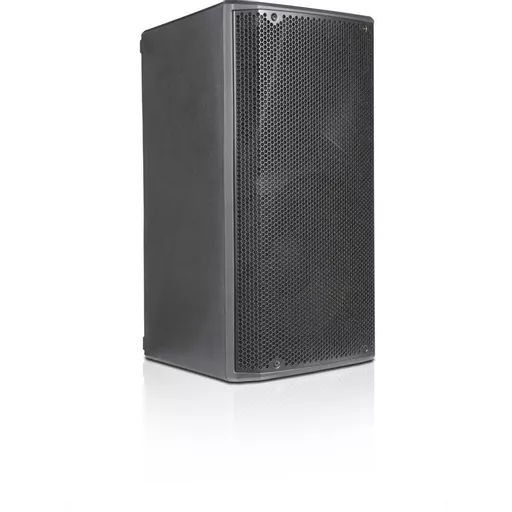

The dB Technologies OPERA 12 is a powerful 12 inch active PA speaker designed for live sound, mobile DJs, bands, venues, schools, houses of worship and event production. Built to deliver strong output with clear, controlled sound, it is equally at home as a main PA speaker, vocal speaker, playback system or stage monitor.

With a 600W RMS Class D amplifier and 1200W peak power, the OPERA 12 provides the headroom needed for speech, vocals, instruments and music playback in small to medium sized venues. The 12 inch woofer with 2 inch voice coil delivers solid low and mid frequency performance, while the 1 inch exit compression driver with 1.4 inch voice coil provides clean high frequency detail for intelligibility and projection.

A key strength of the OPERA 12 is its redesigned asymmetrical horn. The coverage pattern is engineered to project sound further at the top while spreading wider at the lower area, helping achieve more even audience coverage in real venues. With 100 degree horizontal directivity and 85 degree vertical coverage, it is designed to keep vocals and music clear across the room rather than only sounding strong directly in front of the cabinet.

Advanced 56 bit DSP processing with Linear Phase FIR filters helps the speaker deliver a coherent, balanced sound from different listening positions. The built in rotary preset system gives 8 EQ options, allowing the OPERA 12 to be optimised quickly for different uses such as club sound, vocals, playback, bass reduction, bass boost, flat response and wedge monitor applications.

Connectivity is flexible for everyday PA work. Two combo inputs allow connection of microphone, line and instrument sources, with independent level control for each channel. The balanced XLR output can be set to link channel 1 or send the mixed output of both channels, making it easy to connect another speaker or feed a wider sound system.

The multifunctional polypropylene cabinet is designed for both portable and installed use. It can be used on a 35mm speaker stand, positioned as a 45 degree floor monitor, or installed using the M10 rigging points with suitable accessories. With a full grille, top and side handles, and a manageable 14.3kg weight, the OPERA 12 is practical for mobile work while still offering the performance needed for fixed venue systems.

Best for mobile DJs, singers, live bands, schools, venues, churches, corporate events, rehearsal rooms and hire companies needing a reliable 12 inch active speaker with strong SPL, flexible inputs and professional DSP control.

• 12 inch 2 way active PA speaker
• 600W RMS Class D amplifier
• 1200W peak power
• 129dB maximum SPL
• 12 inch woofer with 2 inch voice coil
• 1 inch exit compression driver with 1.4 inch voice coil
• Frequency response 52Hz to 20kHz at -10dB
• Frequency response 67Hz to 19.6kHz at -3dB
• Redesigned asymmetrical horn for improved coverage
• 100 degree horizontal directivity, 85 degrees up and 120 degrees down
• 85 degree vertical directivity, +25 degrees and -60 degrees
• 56 bit DSP processing
• 24 bit 48kHz AD/DA converter
• Linear Phase FIR filters for coherent sound
• 8 rotary EQ presets for different applications
• Peak, RMS and thermal limiter protection

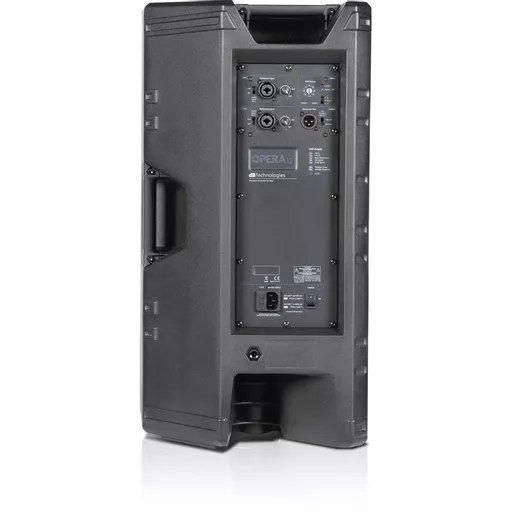

• 2 x combo XLR and 6.3mm jack inputs
• Channel 1 microphone or line input
• Channel 2 microphone or instrument input
• Selectable balanced XLR output, CH1 link or mix out
• 2000Hz crossover frequency
• Full grille polypropylene cabinet

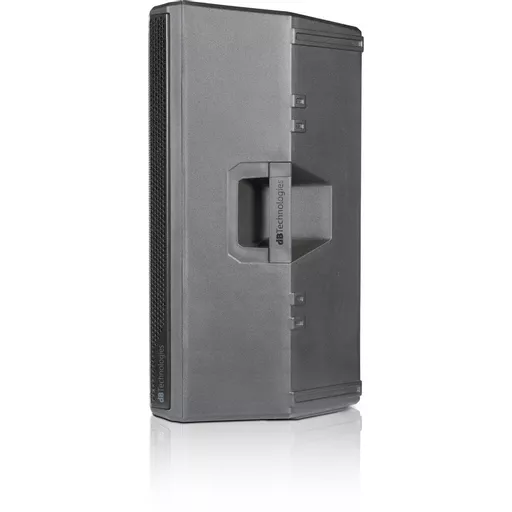

• Top and side carry handles
• 35mm pole mount

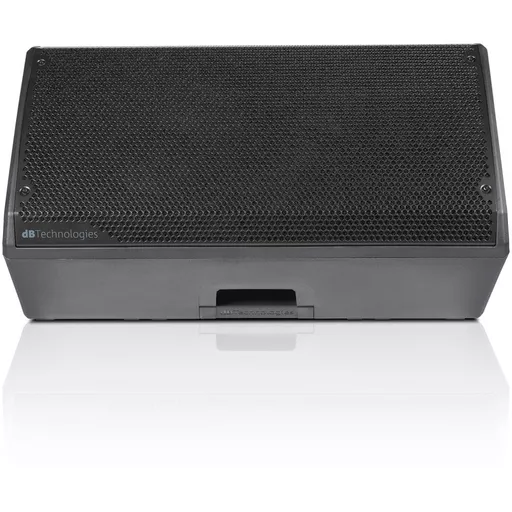

• 45 degree monitor angle for wedge use
• 2 x M10 rigging points on top and 1 x M10 rigging point on rear
• Dimensions 350 x 642 x 349mm
• Weight 14.3kg

MINI FAQ
Q: Is the dB Technologies OPERA 12 suitable for live vocals
A: Yes, the OPERA 12 is well suited to vocals, speech and live performance thanks to its 12 inch woofer, compression driver, DSP presets and clear asymmetrical horn coverage.

Q: Can the OPERA 12 be used as a stage monitor
A: Yes, the cabinet has a 45 degree monitor angle and dedicated wedge presets, making it suitable for stage monitoring as well as front of house PA use.

Q: Can I connect a microphone directly to the speaker
A: Yes, channel 1 offers microphone or line sensitivity, while channel 2 can be used for microphone or instrument sources.

Q: Can I link another speaker from the OPERA 12
A: Yes, the balanced XLR output can be set to send either channel 1 link or the mixed output of both input channels.

Q: What is the OPERA 12 best used for
A: It is best used for mobile DJs, live bands, singers, venues, schools, houses of worship, corporate events and portable PA systems needing a powerful 12 inch active speaker.
