FBT HiMaxX 60A Active Speaker

Brand: FBT

FBT HiMaxX 60A Active Speaker

Product Code: HIMAXX60A

£1265.00

3 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

The HiMaxX 60a is an Active 15" speaker with a B&C 1" compression driver featuring a 700W + 200W RMS Â– 135dB SPL DSP amplifier. It features a sturdy, gas-injected polypropylene molded enclosure, engineered in Italy to contain undesired resonance.

FBT HiMaxX takes its place alongside the FBTMaxX series, exalting all the technical features. The study of a new cabinet in polypropylene, the use of a switch mode power supply and high efficiency power amplifiers and the redesign of the loudspeakers were the activities of the FBT R&D team aimed at maximizing the power weight ratio.

Compact and light weight, HiMaxX brilliantly solve all the most demanding requests from buffs, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ format and optional accessories.

2-way, bi-amplified in Bass- Reflex design.
B&C custom designed 380 mm (15”) neodymium woofer with 75 mm (3”) voice coil.
B&C 36 mm (1.4”) compression driver with 64 mm (2.5”) voice coil.
700Wrms PWM LF power amplifier.
200Wrms Class G HF power amplifier.
Switch mode power supply for an excellent ratio weight/power.
Analog signal processor limiter/

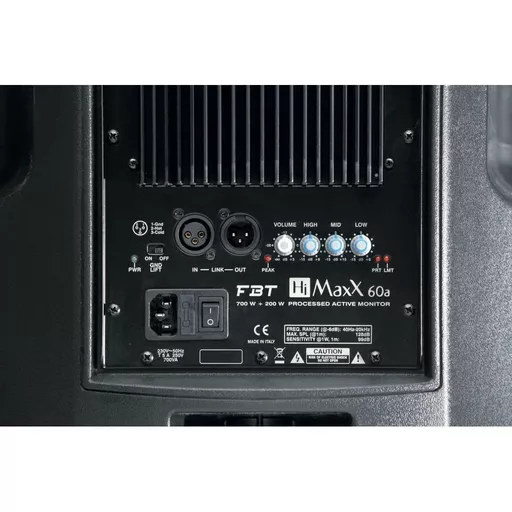

Completely redesigned control panel with:
XLR Input and XLR Link.
Gain and Volume functions in a single potentiometer to improve user friendliness improving the dynamic range and input signal/noise ratio.
3-band EQ (Bass, Mid, High).
Ground-lift.
Diagnostic LED.
90°H x 60°V constant directivity horn.

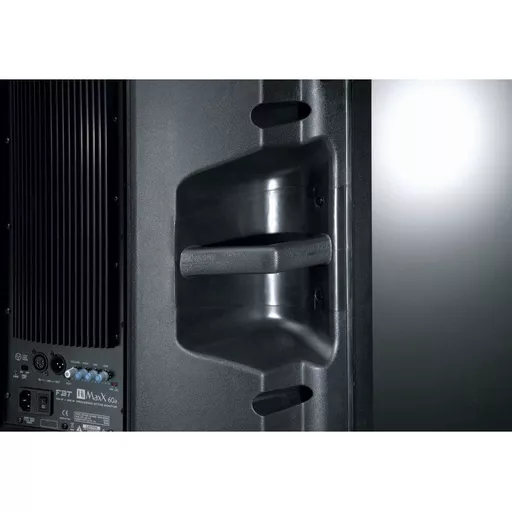

4 x M10 anchoring points, 35 mm ø (1.38”) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles.

Specifications

Configuration: 2 Way
Frequency response: 40Hz - 20 kHZ
Low frequency woofer: 15" with 3" VC
High frequency driver: 1.4" with 2.5" VC
Maximum SPL cont/peak: 129 / 135 dB
Dispersion: 90 x 60 (HxV)
Input impedance: 22 Kohm
Crossover frequency: 1.2 khz
Input connector: XLR with Link out
Net Dimension (WxHxD): 482 x 757 x 600mm / 19 x 29.8 x 16.8in
Net Weight: 28.3kg / 62.4lb
Transport Dimension (WxHxD): 520 x 867 x 600mm / 20.4 x 34.1 x 23.6in
Transport Weight: 30.3kg / 66.8lb
Built-in amplifier LF/HF: 700w/200w RMS
Built-in amplifier peak LF/HF: 1100/250w
Power cord: 5m IEC

FBT HiMaxX 60A Active Speaker

FBT HiMaxX 60A Active Speaker

£1265.00
