The FBT PROMaxX 114A is a high performance 14 inch active PA speaker designed for live sound, mobile DJs, venues, schools, houses of worship, corporate AV and professional sound reinforcement. With powerful bi amplification, advanced DSP control and a robust polypropylene cabinet, it delivers strong output, clear vocal projection and reliable full range sound for both speech and music applications.

Built around a 14 inch low frequency woofer with a 3 inch voice coil and a 1.4 inch high frequency compression driver with a 2.5 inch voice coil, the PROMaxX 114A is designed to produce a balanced, high fidelity sound with plenty of headroom. The low frequency section is powered by a 700W RMS Class D amplifier, while the high frequency section uses a 200W RMS Class H/AB amplifier, giving a combined 900W RMS output in a compact and portable cabinet.

With a frequency response of 45Hz to 20kHz and a maximum SPL of 135.5dB peak, the PROMaxX 114A is suitable for demanding portable PA and installed sound applications. It works well as a front of house speaker for bands and DJs, a vocal reinforcement speaker for presentations, a background music and announcement speaker for venues, or a high output monitor for live performance.

The constant directivity horn provides 90 x 60 degree coverage, helping deliver consistent sound across the audience area. This makes the speaker a strong choice for function rooms, clubs, auditoriums, theatres, gyms, restaurants, pubs and event spaces where clear coverage is important. Built in monitor angles of 12, 40 and 55 degrees also allow the cabinet to be used effectively as a floor monitor.

Control is handled through an onboard DSP system with graphic display, rotary encoder and push button operation. Six factory presets are available for fast setup, with two user slots for custom settings using up to five parametric EQ bands per slot. Additional DSP tools include high pass filtering, microphone and line input switching, low, mid and high EQ, delay up to 10 metres and selectable limiter modes for different performance requirements.

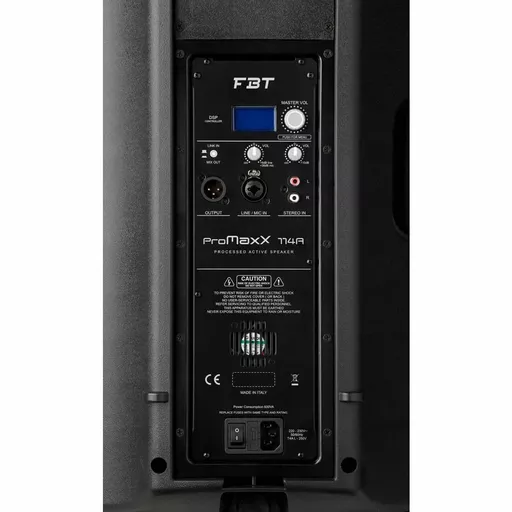

The rear panel includes a balanced XLR and jack combo input, XLR link output, RCA stereo input, dual volume controls and DSP interface, making the PROMaxX 114A easy to connect to mixers, microphones, playback devices and wider PA systems. The speaker can be used on a standard 35mm speaker stand, wall mounted using suitable accessories, or suspended using the built in M10 suspension points.

For added peace of mind, a 5 year extended warranty is available through FBT Audio UK when the speaker is purchased from an authorised UK retailer and registered within the required period. This gives professional users extra confidence when investing in FBT active speakers for regular gigging, venue or installation use.

Best for live bands, mobile DJs, singers, venues, schools, churches, corporate events, gyms, theatres, restaurants, pubs and AV installers needing a powerful 14 inch active speaker with DSP control, high SPL output and flexible mounting options.

• 14 inch active PA speaker for live sound and installations
• 2 way bi amplified bass reflex design
• 700W RMS Class D amplifier for low frequencies
• 200W RMS Class H/AB amplifier for high frequencies
• 900W RMS total built in amplifier power
• 14 inch low frequency woofer with 3 inch voice coil
• 1.4 inch high frequency compression driver with 2.5 inch voice coil
• Maximum SPL 127.5dB continuous and 135.5dB peak
• Frequency response 45Hz to 20kHz at -6dB
• 90 x 60 degree constant directivity horn coverage
• Onboard DSP with graphic display and rotary encoder
• 6 factory DSP presets plus 2 user preset slots
• Up to 5 parametric EQ bands per user preset
• High pass filter, low, mid and high EQ control
• Delay line up to 10 metres
• Selectable limiter modes including MIN, NORMAL and MAX
• Balanced XLR and jack combo input
• RCA stereo input for playback sources
• XLR link output for feeding another speaker or system
• Dual volume controls
• Microphone and line input switching
• 12, 40 and 55 degree monitor angles

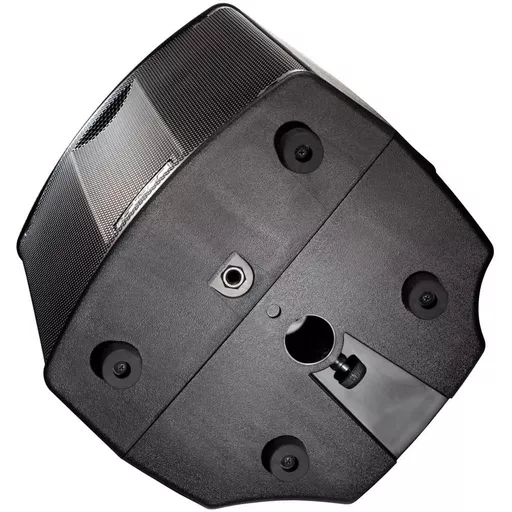

• 35mm speaker stand socket
• 2 x M10 suspension points
• Wall bracket flange plate for compatible mounting accessories
• Polypropylene cabinet with full grille design
• 5 metre power cord supplied
• Dimensions 402 x 644 x 345mm
• Net weight 18.8kg
• 5 year extended warranty available when registered with FBT Audio UK

MINI FAQ
Q: What is the FBT PROMaxX 114A best used for
A: It is ideal for live sound, mobile DJs, venues, schools, houses of worship, corporate AV, gyms, restaurants, pubs and installed sound systems needing a powerful 14 inch active speaker.

Q: How powerful is the PROMaxX 114A
A: It has a 700W RMS amplifier for the low frequency section and a 200W RMS amplifier for the high frequency section, giving 900W RMS total built in amplifier power.

Q: Can the PROMaxX 114A be used as a floor monitor
A: Yes, the cabinet includes built in monitor angles of 12, 40 and 55 degrees, making it suitable for stage monitoring as well as front of house use.

Q: What inputs does the speaker have
A: The rear panel includes a balanced XLR and jack combo input, RCA stereo input and an XLR link output for connection to other equipment.

Q: Is a 5 year warranty available
A: Yes, a 5 year extended warranty is available through FBT Audio UK when the product is purchased from an authorised UK or Ireland retailer and registered within the required period.
