FBT Vertus CLA118SA Active Subwoofer Black (Each)

Brand: FBT

FBT Vertus CLA118SA Active Subwoofer Black (Each)

Product Code: VERTUSCLA118SA

£1549.00

2 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

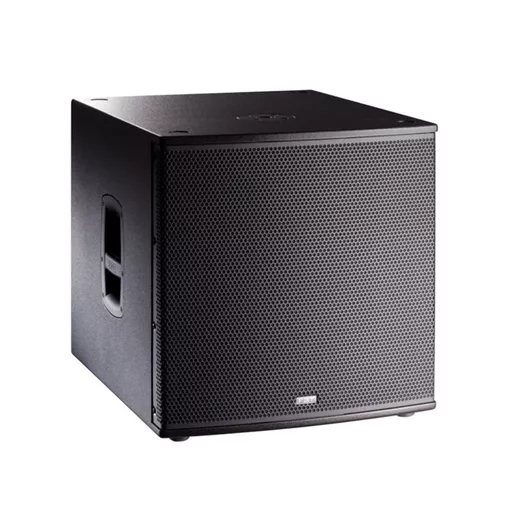

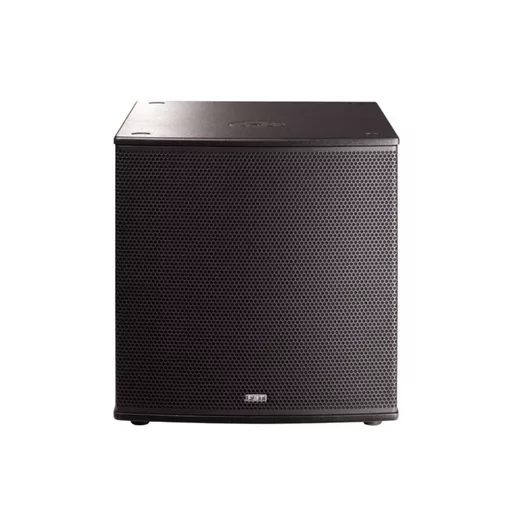

The Vertus CLA 118SA is specifically designed to work with the 206 and 406 Vertus Column Line Array series. This Active 18Â” B&C high excursion woofer with 3Â” voice coil is driven by the built in 1200W RMS amplifier delivering 138 dB SPL.This great combination is in a 15mm Baltic birch plywood cabinet completely made in Italy.

Processed Active Subwoofer

1200W - 138 dB SPL

The CLA 118SA is a subwoofer in birch plywood with a 460mm woofer from B&C in a bass reflex port with an extensive laminar airflow, minimizing turbulence and power compression. The Class-D, switching power amplifier module is constructed in die-cast aluminum with natural convection, and is rated at 1200W. Onboard DSP also offers functions such as filtering, equalization and protection.

When you need to extend the performance of the CLA406A, especially in live applications, the CLA118SA acts as a support and base for the CLA406A column that can be applied, via optional hardware, with M20 points positioned on the top of the sub.

The CLA118Sa is also modular and can be stacked thanks to special milling, increasing the SPL and raising the base of CLA406A.

Active subwoofer in bass-reflex design
460mm (18”) B&C high excursion woofer with 75mm (3”) voice coil
Frequency response from 33Hz to 100Hz
1200W RMS Class D power amplifier with swittching mode power supply
Processor DSP with 8 presets, cardioid configuration, delay
Control Panel with XLR input and link, volume, presets, delay, phase 0 ° -180 °, ground-lift
Neutrik powerCON True1 power IN and LINK connectors
15mm (5/8”) birch plywood with scratch-resistant coating Stackable
M20 (20mm) top mount speaker stand socket, two diecast aluminium carrying handles with rubber inserts
Optional 4 swivel-mount casters 80mm (3.15”) on request
Suitable for low frequency extension and reinforcement of the CLA406A array, especially for live performance
Configuration: Subwoofer
Frequency response: 33Hz - 120Hz
Low frequency woofer: 18" (3" VC)
Maximum SPL cont/peak: 134 / 138 dB SPL
Dispersion: Omnidirectional
Input impedance: 22kOhm
Input connector: XLR with Link Out
Net Dimension (WxHxD): 550 x 550 x 660mm
Net Weight: 40kg
AC Power requirements: 640VA
Built-in amplifier LF/HF: 1200w
Built-in amplifier peak LF/HF: 2400w
Power cord: 5m PowerCon True1

FBT Vertus CLA118SA Active Subwoofer Black (Each)

FBT Vertus CLA118SA Active Subwoofer Black (Each)

£1549.00
