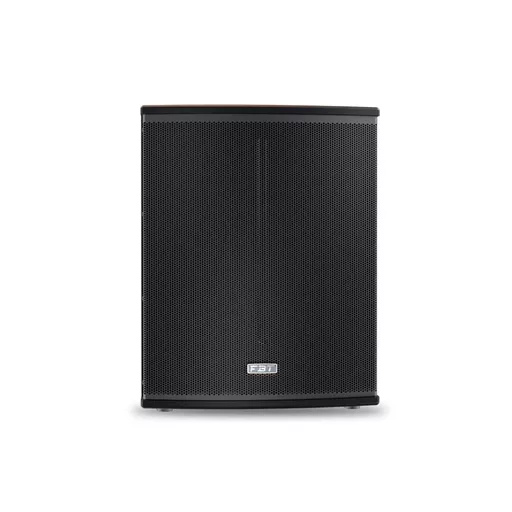

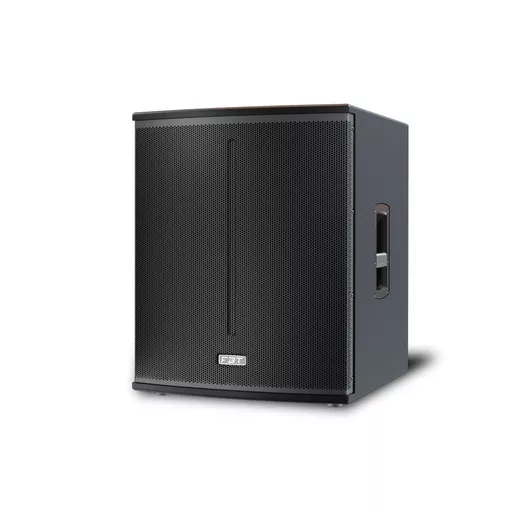

FBT X-SUB118SA Active 18" Subwoofer (Each)

XSUB118SA



Product Code: XSUB118SA

Brand: FBT



FBT X-SUB118SA Active 18" Subwoofer (Each)

Brand: FBT

FBT X-SUB118SA Active 18" Subwoofer (Each)

Product Code: XSUB118SA

£979.00

18 in stock

Pallet Delivery - 1 to 3 Working Days

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




The FBT X-SUB 118SA provides low-frequency reinforcement for mobile DJs, live bands and installed PA systems. Designed to complement FBT X-LITE and X-PRO speakers, it combines an 18-inch woofer and 3-inch voice coil with a built-in 1200W Class-D amplifier.

Its bass-reflex enclosure delivers a frequency response of 38Hz–120Hz at -6dB, with a maximum peak SPL of 136dB in half-space conditions. This makes it a practical choice for adding weight to kick drums, bass instruments and dance music playback.

Four DSP presets help tailor the bass response to your system, alongside level adjustment and a 0°/180° phase switch. Stereo inputs, link outputs and high-pass filtered outputs provide flexible routing to active main speakers or external amplifiers.

Built from 18mm birch plywood, the cabinet has a scratch-resistant black finish for regular use in venues and on the road. Two aluminium handles assist handling, while the M20 top mount accepts a compatible speaker pole. Optional 100mm wheels can be fitted for easier transport.

Features & Specifications

  • Active bass-reflex PA subwoofer
  • 18-inch woofer with 3-inch voice coil
  • Built-in 1200W Class-D amplifier
  • Frequency response: 38Hz–120Hz at -6dB
  • Maximum peak SPL: 136dB, half-space
  • Omnidirectional dispersion
  • DSP processor with four selectable presets
  • Adjustable output level
  • Phase reversal switch: 0°/180°
  • Protection and limiter status indicators
  • Stereo combo XLR/jack inputs
  • Stereo XLR link outputs
  • Stereo XLR high-pass filtered outputs
  • Input impedance: 22kΩ
  • 18mm birch plywood cabinet
  • Scratch-resistant black finish
  • Two aluminium carry handles
  • M20 threaded speaker pole mount
  • Provision for optional 100mm transport wheels
  • AC power requirement: 600W
  • Power cord length: 5m
  • Dimensions (W x H x D): 510 x 655 x 630mm
  • Net weight: 39.8kg

FAQs

Q: Does the X-SUB 118SA require a separate amplifier?
A: No. Its integrated Class-D amplifier powers the subwoofer. It requires mains power and a suitable line-level audio signal.

Q: Can it be paired with FBT X-LITE and X-PRO speakers?
A: Yes. It is designed to extend the bass response of these speaker ranges.

Q: What are the high-pass outputs for?
A: They provide a filtered line-level signal for active main speakers or an external amplifier. They do not power passive speakers directly.

Q: Are transport wheels supplied?
A: No. The compatible 100mm transport wheels are optional accessories.
