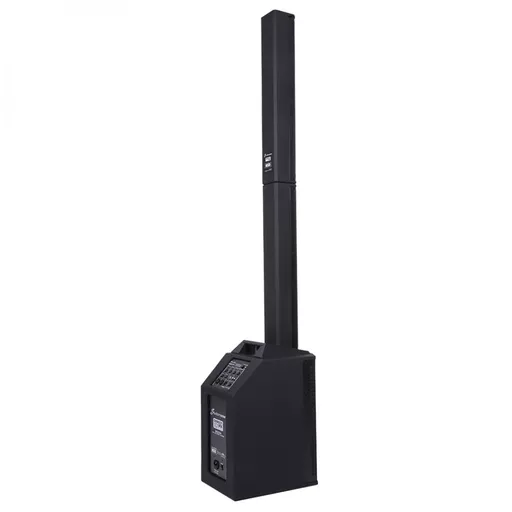

The Studiomaster DIRECT 101MX is a compact active column PA system designed for performers, DJs, presenters and venues that need clear, powerful sound without a conventional speaker-and-stand setup.

Its self-powered three-way design combines a 10-inch bass-reflex subwoofer with six 3-inch midrange drivers and a 1-inch compression driver. The result is a balanced system capable of reproducing speech, vocals, instruments and recorded music with excellent clarity.

A built-in four-channel mixer, adjustable reverb, Bluetooth audio streaming and comprehensive 24-bit DSP make the DIRECT 101MX a practical all-in-one solution for live performances, presentations, receptions, conferences, fitness classes and smaller events.

600W RMS Dual-Channel Amplification

The DIRECT 101MX contains two 300W RMS Class D amplifier channels, providing 600W RMS of available amplification for the subwoofer and column sections.

The active subwoofer module houses a professional 10-inch driver inside a wooden bass-reflex enclosure. This provides controlled low-frequency reinforcement for music and instruments while remaining compact enough for mobile use.

Above the subwoofer, the vertical array combines six 3-inch midrange drivers with a dedicated 1-inch compression driver. This arrangement delivers detailed vocals and instruments while maintaining clear high-frequency reproduction.

Wide and Consistent Sound Coverage

The column provides a wide 120° horizontal by 30° vertical coverage pattern. This helps distribute sound across the audience while reducing unnecessary output towards floors and ceilings.

Its wide horizontal dispersion makes the DIRECT 101MX suitable for function rooms, bars, restaurants, conference spaces and other venues where listeners may be positioned across a broad area.

Integrated Four-Channel Mixer

The built-in four-channel mixer allows microphones, instruments and music sources to be connected directly to the system without always requiring a separate mixing desk.

Two XLR and 6.35mm combination inputs accept microphone or line-level signals, making them suitable for microphones, keyboards, mixers and other audio equipment. A dedicated high-impedance 6.35mm input is provided for instruments such as electric or electro-acoustic guitars.

A stereo RCA input and Bluetooth connectivity provide convenient options for playing music from compatible phones, tablets, laptops and media players.

Individual channel controls and adjustable reverb make it easier to create a suitable live mix directly from the speaker.

24-Bit DSP Sound Processing

The integrated 24-bit DSP is controlled through a clear display and single control encoder. Music, DJ and Speech operating modes provide useful starting points for different applications.

Further processing includes digital gain control, three-band equalisation, a high-pass filter, limiters and storable presets. These controls allow the system to be adjusted to suit the source material and acoustics of the venue.

A digital output delay can be configured for delay zones of up to 100 metres in 0.25-metre steps. This is particularly useful when integrating the DIRECT 101MX into a larger distributed sound system.

Flexible Outputs and System Expansion

An XLR mix output provides several options for connecting the DIRECT 101MX to additional sound equipment.

A second compatible speaker system can be connected when wider coverage or increased output is required. The mix output can also send the combined audio signal to another powered speaker, recording system or external audio device.

Portable Modular Design

The column system separates into compact sections for transportation and storage. Assembly is straightforward, with the column and support section mounting directly above the active subwoofer.

A protective cover for the subwoofer and a carry bag for the column sections are included, helping to protect the system during storage and transport.

Key Features

• Compact self-powered three-way column PA system
• Suitable for live music, DJs, presentations, conferences and events
• 600W RMS amplification from two 300W amplifier channels
• Efficient Class D amplifier technology
• 10-inch active bass-reflex subwoofer
• Wooden subwoofer enclosure
• Six 3-inch midrange drivers
• 1-inch compression driver
• 120° horizontal by 30° vertical coverage
• Built-in four-channel mixer
• Two switchable microphone and line inputs
• XLR and 6.35mm combination input connectors
• Dedicated high-impedance instrument input
• Stereo RCA input
• Bluetooth audio streaming
• Adjustable reverb effects
• Independent subwoofer level control
• 24-bit digital signal processing
• Clear DSP display with single control encoder
• Music, DJ and Speech operating modes
• Three-band equalisation
• Digital gain, high-pass filter and limiter controls
• Storable DSP presets
• Digital delay for zones up to 100 metres
• XLR combined mix output
• Subwoofer cover and column carry bag included
• Subwoofer dimensions: 358 x 616 x 447mm (W x H x D)
• Vertical array dimensions: 108 x 835 x 98mm (W x H x D)
• Subwoofer net weight: 21kg

Frequently Asked Questions

Q: Is the Studiomaster DIRECT 101MX an active speaker system?

A: Yes. The amplifier is built into the subwoofer module and powers both the 10-inch subwoofer and the vertical column array. No separate power amplifier is required.

Q: Can I use the DIRECT 101MX without a separate mixer?

A: Yes. Its built-in four-channel mixer can accommodate microphones, line-level equipment, an instrument and a stereo music source. A separate mixer is only needed when more inputs or additional mixing control are required.

Q: Can I connect a microphone and guitar directly to the system?

A: Yes. The mixer provides two switchable microphone and line inputs plus a dedicated high-impedance input for instruments such as electric or electro-acoustic guitars.

Q: Can two DIRECT 101MX systems be connected together?

A: Yes. The XLR mix output can be used to connect a second compatible powered speaker system. An external mixer can also be used when more centralised control is required.

Q: Does the DIRECT 101MX have Bluetooth?

A: Yes. Bluetooth allows music to be streamed wirelessly from a compatible phone, tablet, laptop or other audio device.

Q: Are protective covers included?

A: Yes. The system includes a protective cover for the subwoofer and a carry bag for the column sections, making storage and transportation easier.
