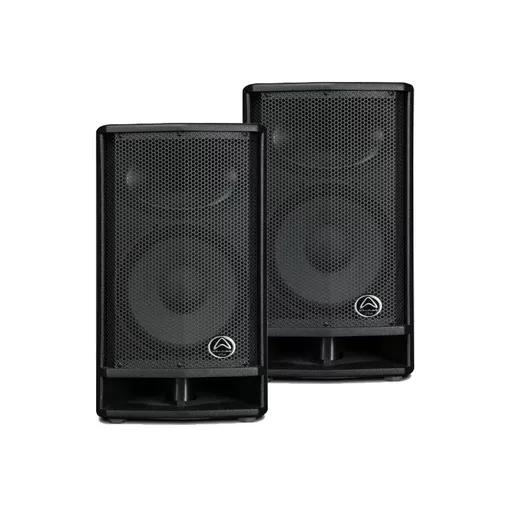

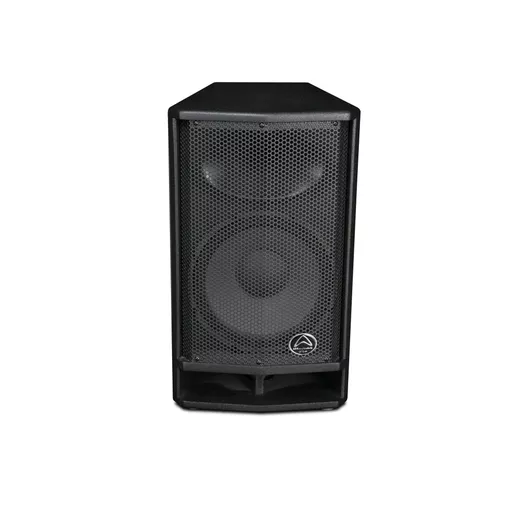

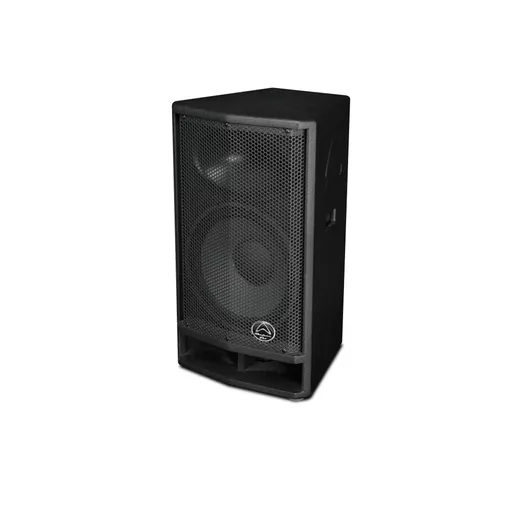

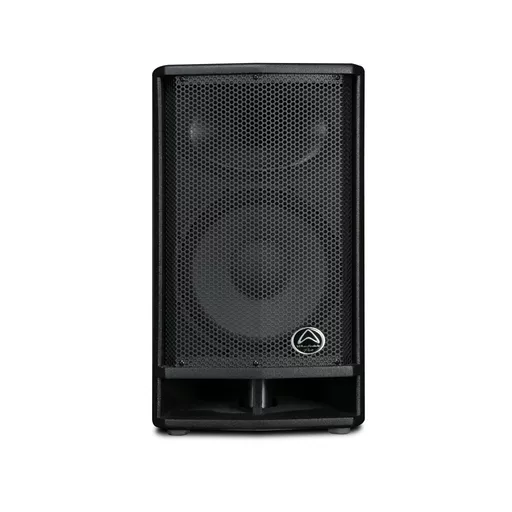

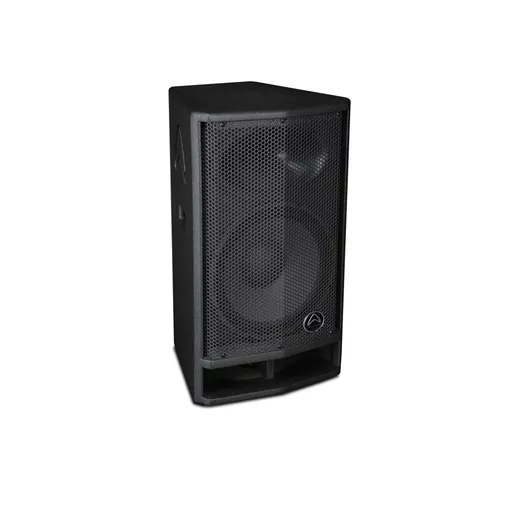

Wharfedale DVP-AX12 12" 200w Active Speaker Pair *B-GRADE*

6277



Product Code: 6277



Wharfedale DVP-AX12 12" 200w Active Speaker Pair *B-GRADE*

Wharfedale DVP-AX12 12" 200w Active Speaker Pair *B-GRADE*

Product Code: 6277

Was £709.00

£499.00

1 in stock

Next Working Day Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




This listing is for a PAIR of B-GRADE Wharfedale DVP-AX12. The outer packaging has become damaged in transit and has been factored into the lower price. Both speakers are fully functional with the brand's original warranty.

DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.

DVP-AX12 features advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges.  DVP-AX12 also features a practical 2-channel mic/line mixer to make life alot easier on-stage.

DVP-AX12 features advanced DSP signal processing with 6 presets.These presets allow for the sound of the DVP to be tuned to the acoustic environment.The 6 presetsFLAT | MONITOR | SPEECH | BASS | PUNCH | LIVEcover most acoustic situations and environments.The rear panel also contains the 2-channel mic/line mixer. Inputs are available on XLR or 1/4″ jack connections with mic/line switching on Channel 1.In addition, the rear panel also contains the balanced XLR link output. This makes it easy to daisy-chain to another DVP-AX model or alternative powered speaker.

Key Features

  • 12″ Active 2-way
  • MDF construction
  • IRIS X Compression driver
  • Bi-amplified with 2 Class D amps
  • 200w RMS
  • 90° x 60° dispersion
  • 129dB Max SPL @1m
  • 6 position internal DSP
  • 2 channel mic/line mixer
  • Custom dual layer LF driver



  • System type Active 12″ 2-way
  • Frequency Response (+/-3dB) 60Hz-18kHz
  • Frequency Range (-10dB) 55Hz-20kHz
  • Max SPL @ 1m 129dB
  • Sensitivity @1w / 1m 98dB
  • Size 305mm / 12″
  • LF voice coil size Dual layer 2.5″
  • Type Compression driver
  • HF coil size 44mm / 1.75″
  • HF exit size 25mm / 1″
  • HF Diaphragm material Titanium
  • Nominal coverage 90° x 60°
  • LF Power Amplifier -Class D, RMS/Peak Watts 150w / 300w
  • HF Power Amplifier -Class D, RMS/Peak Watts 50w / 100w
  • DSP Yes
  • DSP controls 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE
  • Amplifier Protection. Power On, Thermal, low voltage Yes
  • Driver Protection, DC, Short, Clip limiter, clip indicator Yes
  • Limiter indicator Red LED
  • Power indicator Green LED (Red LED front)
  • Input sensitivity : Balanced 775mv
  • Max input level 4v
  • Input connectors 2*XLR & 2*1/4″ (Line/MIC)
  • Input impedance Balanced : 20k
  • Line output connector XLR
  • Pole socket Dual-angle (0° or -10°) 35mm socket
  • Handles 2 (one on each side)
  • Enclosure material MDF / Black paint
  • Grille material Steel
  • Height 617mm / 24.3″
  • Width 361.2mm / 14.2″
  • Width (rear) 207.6mm / 8.2″
  • Depth 342.4mm / 13.5″
