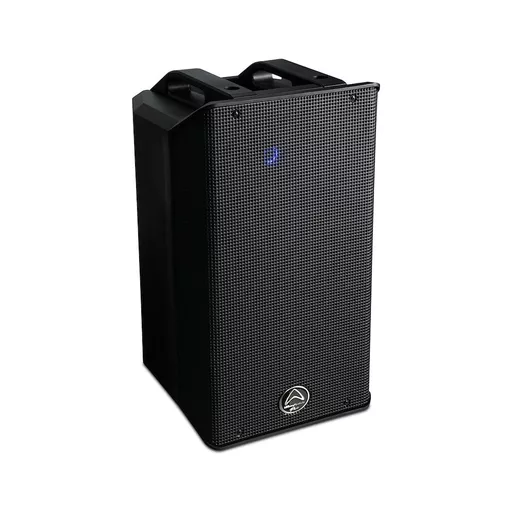

Wharfedale Typhon AX-12 Active Speaker (Each)

TYPHONAX12



Product Code: TYPHONAX12



Wharfedale Typhon AX-12 Active Speaker (Each)

Wharfedale Typhon AX-12 Active Speaker (Each)

Product Code: TYPHONAX12

Was £379.00

£299.00

1 in stock

Next Working Day Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




In ancient mythology, Typhon was a giant who brought fear to his enemies. From a similar era to the Titans, it is said that the God Typhon had the power to create and control massive wind tornadoes in his battles.  Mythology also often refers to him as being invincible.  Power, control and “invincibility” are all features which the new Typhon active loudspeakers have been designed around.  Two new models are available.  Typhon-AX12 - a 12” 2-way 720w Continuous active loudspeaker and an aptX Bluetooth enabled brother - the Typhon-AX12-BT.  The all new internal amplifiers deliver over 140% more power than Titan-AX12



  • 720w Continuous
  • 1440w Peak
  • 4-Position internal DSP
  • Custom Wharfedale Pro drivers
  • Two Class D amplifiers
  • 1.75" HF voice coil
  • Multiple handles
  • Multiple rigging points
  • Frequency Response (+/-3dB) 55Hz-20kHz
  • Frequency Range (-10 dB) 50Hz-20kHz
  • Maximum SPL @1m 129dB
  • Sensitivity @ 1W / 1m 98dB
  • Low Frequency Transducer
    Size (mm / inches) 305mm / 12"
    Voice Coil Size (mm / inches) 65mm / 2.5”
    Rated Impedance 4Ω
  • HF Driver Type Compression Driver
    Coil Size (mm / inches) 44mm/1.75"
    Exit Size (mm / inches) 25mm/1"
    Diaphragm Material Titanium
    Rated Impedance 8Ω
  • Nominal Coverage (H x V) Hybrid Symmetry Horn 100° x 80°
  • Amplifier design 2 x Class D
  • Power rating 1440W Peak (1200W LF + 240W HF), 720W Continuous(600W LF + 120W HF)
  • DSP Controls FLAT / MONITOR / BASS / PUNCH
  • Input - A balanced
  • Input sensitivity 775mV (0dBu)

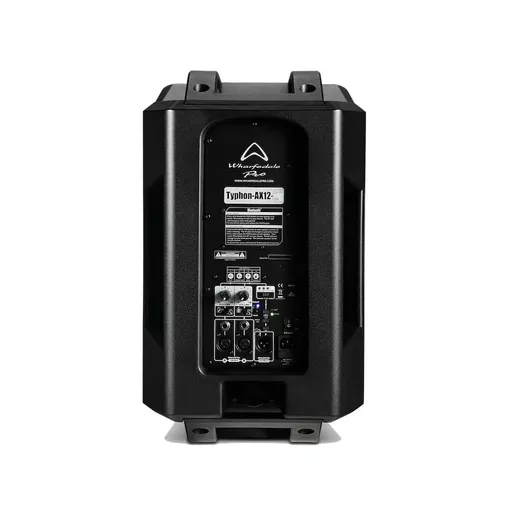

  • Input connectors A/B 2*XLR, 2*6.3mm jack
  • Input impedance 20KΩ
  • Line output Balanced XLR
  • Loop gain 0dB
  • AC Power 220~240VAC/100~120VAC 50/60Hz
  • Rigging 9 x M8 threaded inserts
  • 35mm pole socket with lock screw

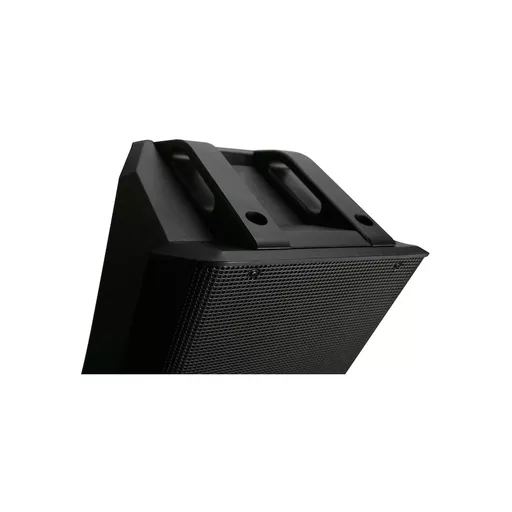

  • 5 x carry handles
  • Grille material & finish Full front - steel
  • Dimensions -  Height 558mm, Width front 344mm, Width rear 245mm, Depth 340mm
  • Net Weight 16.2kg
