dB Technologies SUB 612 Subwoofer

SUB612



Product Code: SUB612



dB Technologies SUB 612 Subwoofer

dB Technologies SUB 612 Subwoofer

Product Code: SUB612

£369.00

1 in stock

Next Working Day Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




Just like the 15” model of the family, bass-reflex dB Technologies SUB 612 features a 600W RMS Class-D Power Amplifier with SMPS, delivers outstanding sound pressure levels (up to 129 dB) in spite of a very compact housing (only 19.8 Kg) and provides an impressively precise low-end reproduction.

Sub 600s’ remarkable audio performance allows user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to separate balanced X-Over signal feeds to left and right speakers.

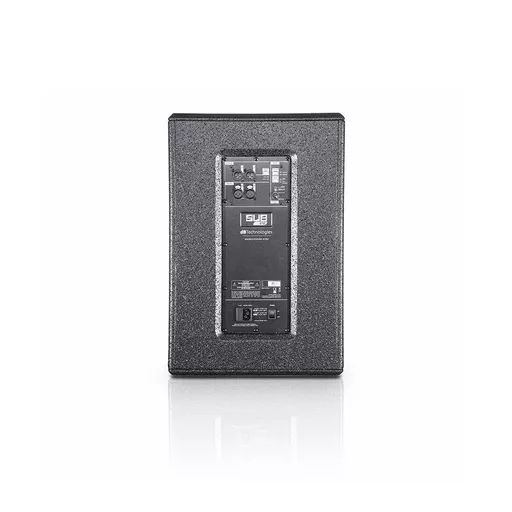

Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or X-Over).  Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub BOOST Mode switch.

Features



  • 600W RMS Class-D Amplifier
  • Stereo Balanced Input
  • Link or X-Over Balanced Stereo Output Mode
  • Compact and sturdy wood cabinet
  • Lightweight
  • Polarity Inversion Switch
  • Flat or boost EQ Mode Switch

Specifications

  • Frequency Response : [-10dB]46 - 123 Hz
  • Max SPL : (1 m)129 dB
  • LF : 12”
  • LF Voice Coil : 2.5"
  • Amp Class : Class D
  • RMS Power : 600 W
  • Peak Power : 1200 W
  • ControllerDSP 28/56 Bit
  • Signal Input : 2x XLR (balanced)
  • Signal Output : 2x XLR (balanced)
  • Pole Mount : M20
  • Dimensions : 360mm x 550mm x 525mm
  • Weight : 20kg
