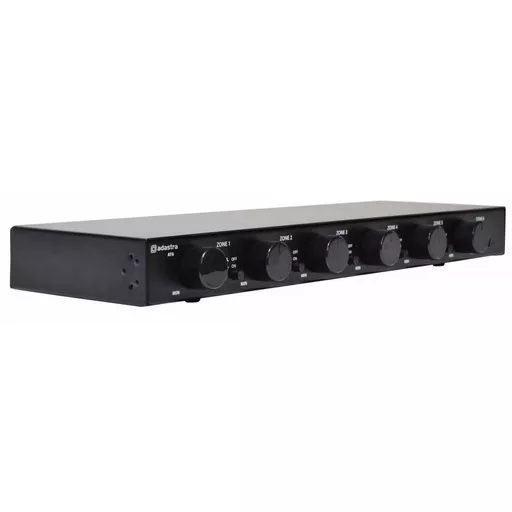

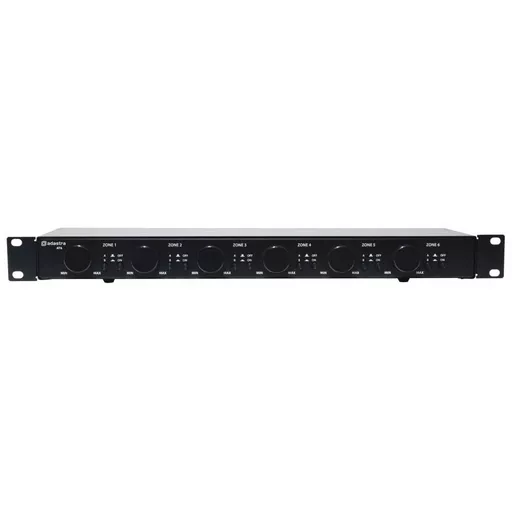

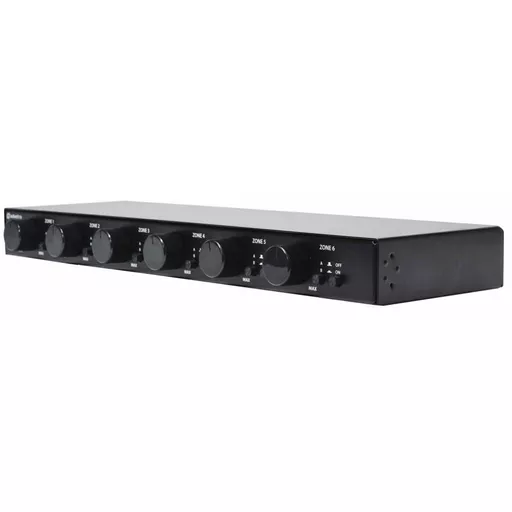

Adastra AT6 Rack-Mount 100v Attenuator + A/B Source Switch

Brand: Adastra

Adastra AT6 Rack-Mount 100v Attenuator + A/B Source Switch

Product Code: AT6

£129.00

78 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

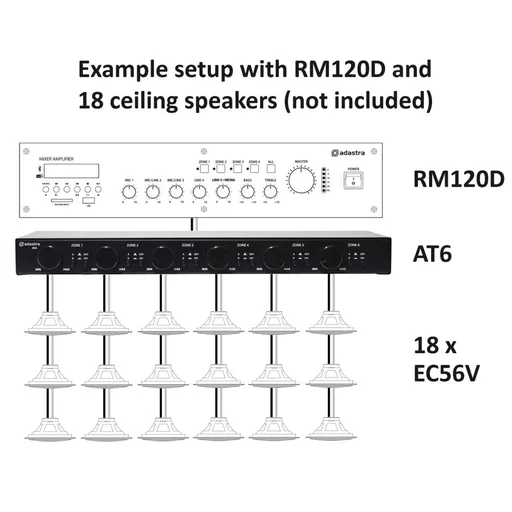

Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations. Housed in a 1U rackmount enclosure, the AT6 has six output channels, which can feed up to 30W to one or more 100V speakers. Each channel has a rotary volume switch, on/off switch and an A/B source switch. When connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other input B, so that each channel can have an independent choice of audio source and output level. 24V terminals can be connected to an emergency control panel for global muting. A completely passive and cost-effective add-on to convert single output amplifiers into a flexible zoning system.

Choice of 2 amplifier sources to each zone

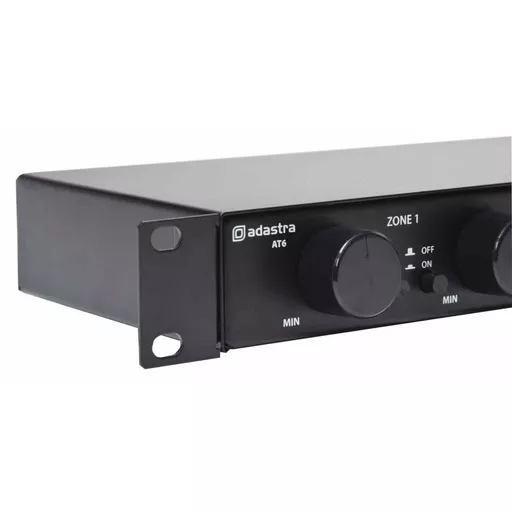

Rotary output volume switch for each zone
Passive operation, no power supply required
1U 19" rack-mountable

Power handling 30W max. per output zone
Channel controls 11 position volume attenuator, A/B source switch, On/Off switch
Emergency control 24V mute terminals

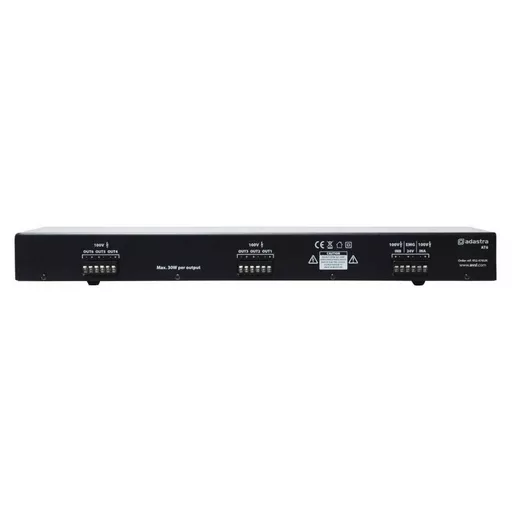

Connections IN A + B, OUT 1-6, 24V MUTE (Euroblock screw terminals)
Dimensions 482 x 160 x 43mm
Weight 2.39kg
