Adastra LS26 Line Splitter 1:12 / 2:6

LS26



Product Code: LS26

Brand: Adastra



Adastra LS26 Line Splitter 1:12 / 2:6

Brand: Adastra

Adastra LS26 Line Splitter 1:12 / 2:6

Product Code: LS26

£85.00

25 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

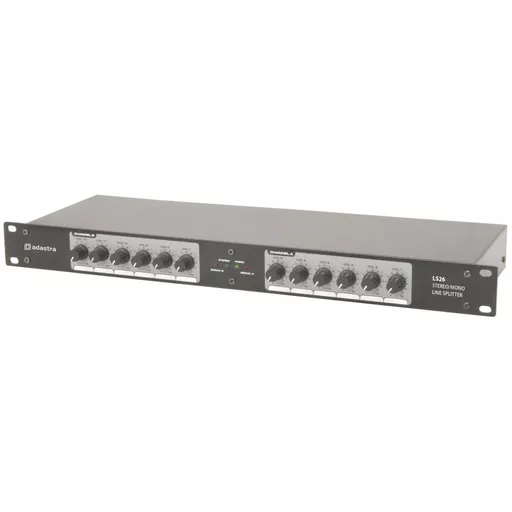

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

  • Up to 12 outputs from 1 or 2 inputs

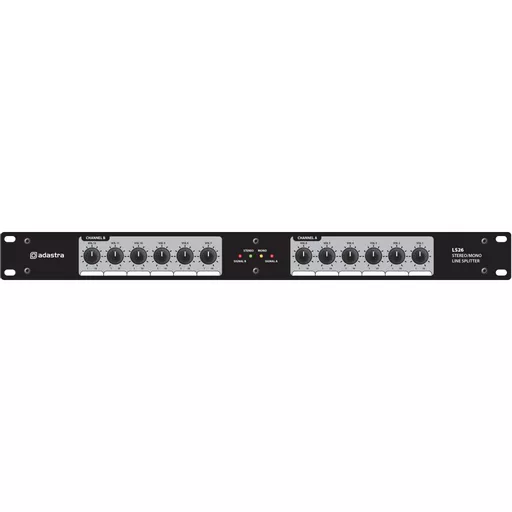

  • Individual volume control for each output
  • Input peak LEDs

  • Power supply 115/230Vac, 50/60Hz (IEC)

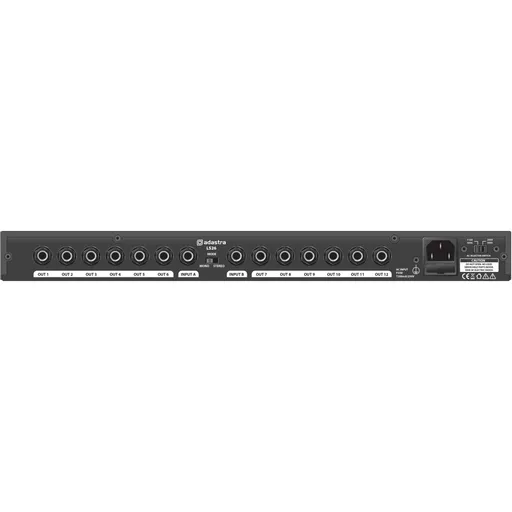

  • Inputs A & B, (6.3mm jack)
  • Outputs 1 - 6 & 7 - 12 (6.3mm jack)
  • Input impedance 20k Ohms
  • Output impedance 220 Ohms
  • Frequency response 20Hz - 20kHz, +0/-1dB
  • Signal to noise ratio >95dB
  • THD <0.008%
  • Dimensions 483 x 44 x 170mm
  • Weight 2.0kg
