Adastra RM120-WIFI 100v Mixer Amplifier with Wifi 120w

RM120-WIFI



Product Code: RM120-WIFI

Brand: Adastra



Adastra RM120-WIFI 100v Mixer Amplifier with Wifi 120w

Brand: Adastra

Adastra RM120-WIFI 100v Mixer Amplifier with Wifi 120w

Product Code: RM120-WIFI

£294.00

51 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

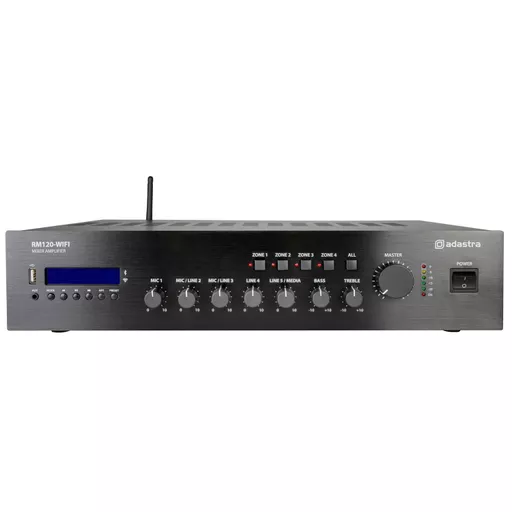

The Adsatra RM120D-WIFI is a 5-channel 19" rack-mountable mixer-amplifier, designed for commercial sound installations to power 100V line speakers or standard low impedance speakers. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. A built-in audio player section can play mp3 files from a USB or stream audio wirelessly from Bluetooth®. A main feature of the RM-WIFI models is the ability to connect to a wired or wireless network for streaming audio from internet radio, playback services or even from a local NAS drive. Setup and control for this function is entirely via the WiiM Home­­ smart phone app with a choice of streaming services embedded. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

  • Internet radio or audio streaming from WiFi or LAN connection
  • Free WiiM Home Player app for Android or iOS
  • USB player and Bluetooth receiver
  • 4 switchable 100V outputs and 1 unswitched output
  • Optional 4-16 Ohm output
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Output power : 120W rms
  • Power supply : 170-264Vac, 50Hz (IEC)
  • DC power : 24Vdc (screw terminals)
  • Inputs : Mic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced) : -53dBV
  • Input impedance : mic 1 : 5k Ohms
  • Input sensitivity : line (unbalanced) : -15dBV (-18.5dBV line 5)
  • Input impedance : inputs 2-5 : 1k Ohms
  • Line output : RCA
  • Speaker outputs : 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
  • Bluetooth version 5.0
  • Network connection : RJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
  • Remote control : via WiiM Home app for iOS or Android
  • Controls : Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equaliser : bass : 100Hz ±10dB, treble : 10kHz ±10dB
  • Rear panel switches : Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power : +20V (mic 1 XLR, switchable)
  • Audio source : Network audio, USB player, Bluetooth receiver
  • Emergency control : 24V contacts - mute all except Mic.1 when triggered
  • Dimensions : 33 x 320 x 88mm
  • Weight 6.36kg
