Adastra RM244V 100v Mixer Amplifier with 4-Zone Paging

RM244V



Product Code: RM244V

Brand: Adastra



Adastra RM244V 100v Mixer Amplifier with 4-Zone Paging

Brand: Adastra

Adastra RM244V 100v Mixer Amplifier with 4-Zone Paging

Product Code: RM244V

£329.00

1 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

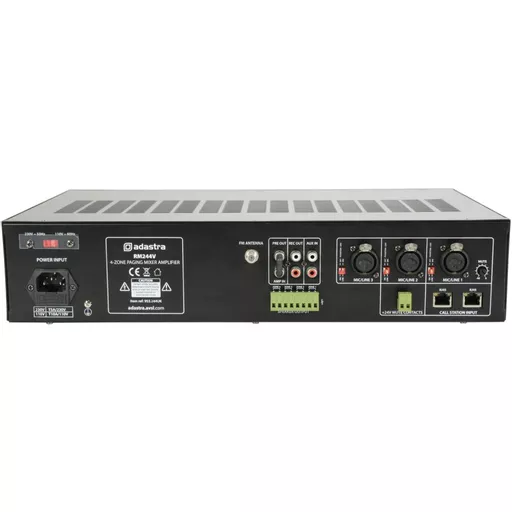

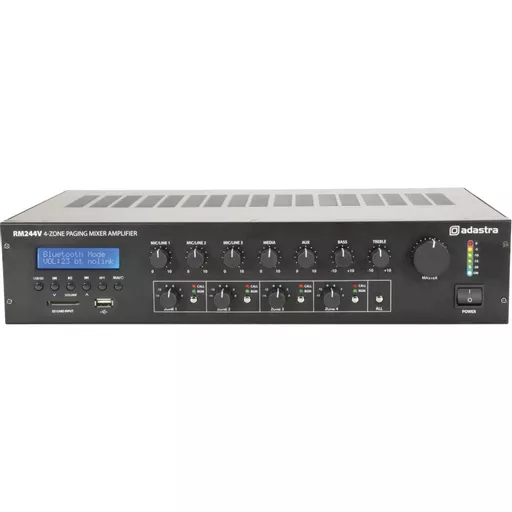

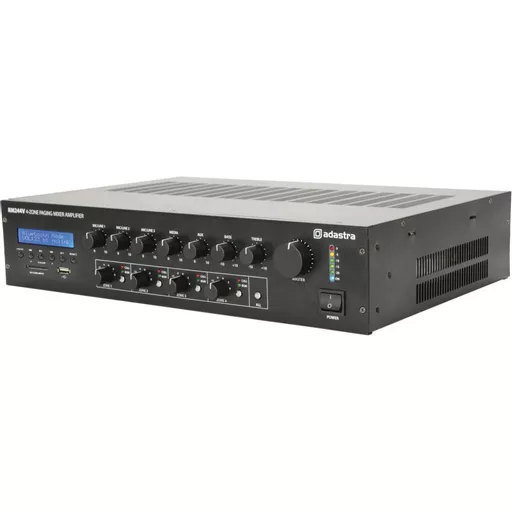

The Adastra RM244V is a 240W mixer-amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.

  • Built-in USB/SD player with Bluetooth and FM tuner
  • Compatible with CS4 call station (953.146UK)
  • 4 individual volume attenuators
  • Switchable +20V phantom power
  • Send/return loop for connection to audio processors or amplifiers

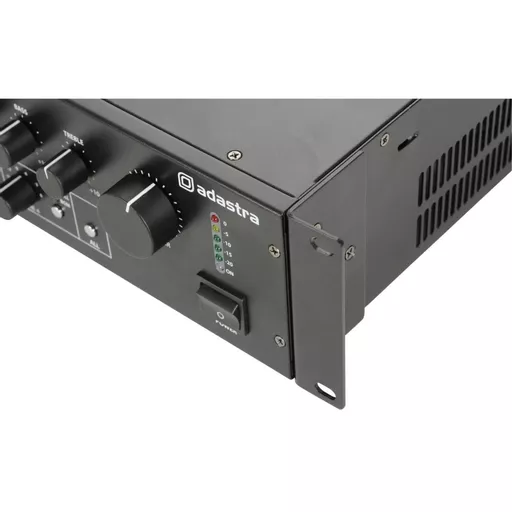

  • Supplied with 19" rack-mount ears (2U)
  • Bluetooth with programmable ID

  • Power supply110/230Vac, 50/60Hz (IEC)
  • Output power : rms240W (shared across 4 zones @ 100V)
  • Inputs3 x mic/line (jack/XLR), 1 x aux (RCA)
  • Input sensitivity : mic-47dBV
  • Input impedance : mic5k Ohms
  • Input sensitivity : line-10dBV
  • Input impedance : line1k Ohms
  • Call station input 2 x RJ45 (for optional CS-4 call stations)
  • Line output RCA
  • Sends : returns Pre out, amp in (RCA)
  • Channel controls Ch1, Ch2, Ch3, Media and Aux volume
  • Output controls Master volume, 4 x zone volumes & mutes
  • Equaliser : bass100Hz ±10dB
  • Equaliser : treble10kHz ±10dB
  • Phantom power +20V (switchable inputs 1-3)
  • Audio source USB/SD player, FM tuner and Bluetooth receiver
  • Bluetooth version 5.0
  • Fire alarm contacts 24V screw terminals
  • Protection Short circuit, overload, overheat
  • Speaker : outputs 4 x 100V (modular terminal block)
  • Dimensions 430 x 315 x 89mm
  • Weight 10.4kg
