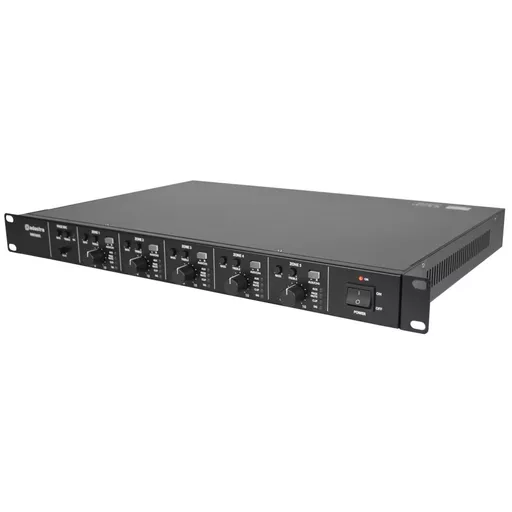

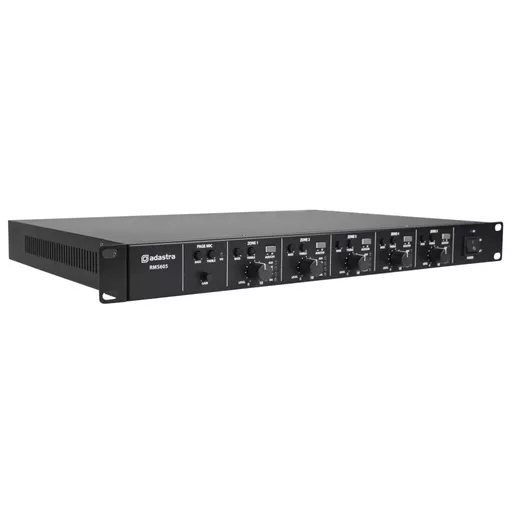

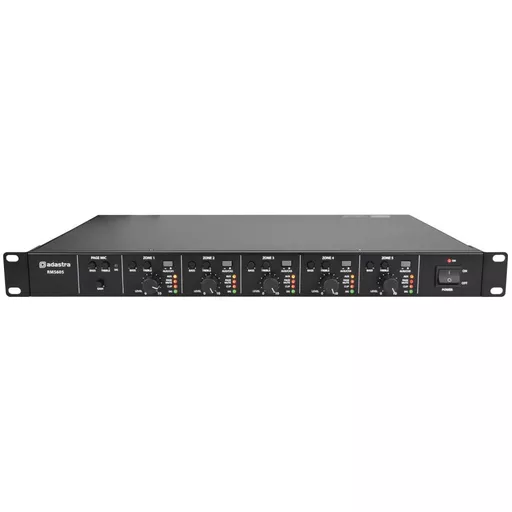

Adastra RMS605 Multi Zone 100v Amplifier 5 x 60w

RMS605



Product Code: RMS605

Brand: Adastra



Adastra RMS605 Multi Zone 100v Amplifier 5 x 60w

Brand: Adastra

Adastra RMS605 Multi Zone 100v Amplifier 5 x 60w

Product Code: RMS605

£366.00

23 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

  • Independent high efficiency class-D amplifiers
  • Outputs for 100V or 4-16 Ohm speakers
  • Separate channel inputs and optional global aux input
  • Paging microphone input with vox override
  • Switchable +20V phantom power for paging microphone
  • 24V contacts for emergency muting

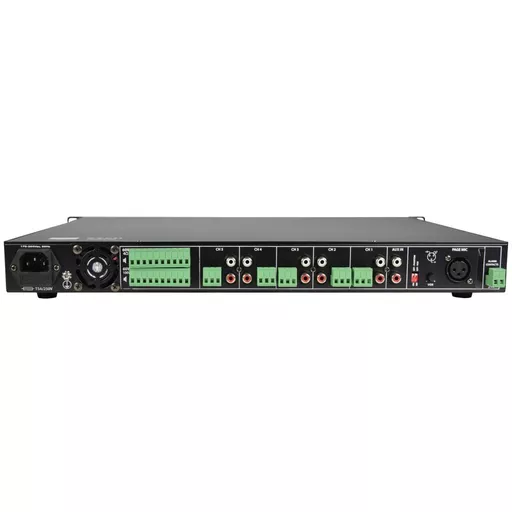

  • Channel Inputs : 5 x L+r RCA or Balanced Terminal
  • Output Power 100v : 5 x 60w
  • Output Power 4 Ohms : 5 x 60w
  • Output Connection : 5 x 100w or 4 Ohm (Euroblock Terminal)
  • Power supply 170-264Vac, 50/60Hz (IEC)
  • Microphone input Balanced XLR (rear panel)
  • Mic controls Gain, Bass, Treble & Vox (rear panel)
  • Auxiliary input L+R RCA
  • Output controls Level, Bass, Treble & Ch/Aux switch
  • Phantom power +20V switchable (paging mic)
  • Emergency control 24V mute contacts (Euroblock terminal)
  • Dimensions : 482 x 330 x 42mm
  • Weight : 8.17Kg
