Adastra RX45 Advanced Audio Matrix

Brand: Adastra

Adastra RX45 Advanced Audio Matrix

Product Code: RX45

£381.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

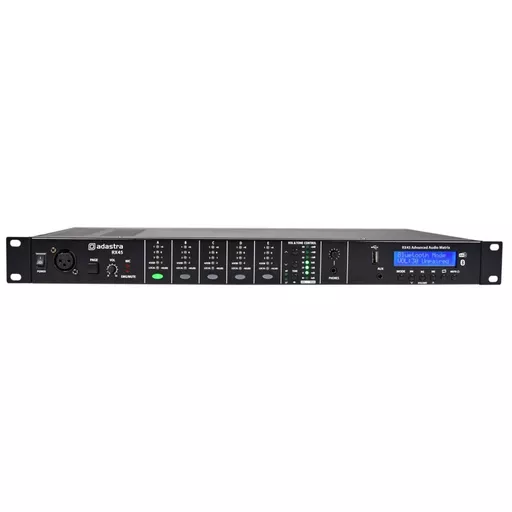

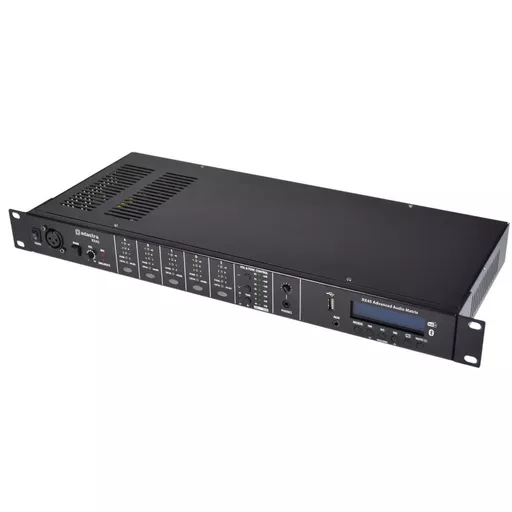

RX45 is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs. An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth. Each zone output has a push button and LED ladder on the front panel for selecting the input source and adjusting level and tone settings in the master section. Connecting optional TR86 wall plates via CAT5 cable enables remote source and level selection for any zone. The output for the selected zone may be monitored through a headphones output on the front panel. The RX45 system is expandable using multiple RX45 units cascaded together via dual CAT5 links, with DIP switches to assign one of 8 different IDs to each connected RX45 unit, providing up to 40 distinct zones. Additional DIP switches can be set to link the audio player from one unit to one or more connected slaves. An optional CS-20 call station can be used to address up to 20 different zones for announcements.

Expandable up to 40 individual zones (8 x RX45)

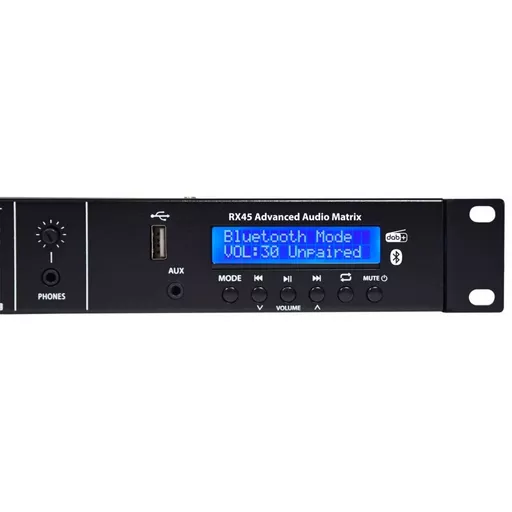

Inbuilt USB, DAB+ and BT audio player
Local or optional TR86 remote control per zone
Local audio connection available if using TR86 remote
Emergency mute and audio in contacts
RX45 units linkable using standard CAT5 cable

Power supply100-250Vac, 50/60Hz (IEC lead included)
FuseT1AL
Audio sourceUSB/DAB+/Bluetooth audio player
Bluetooth version5.0

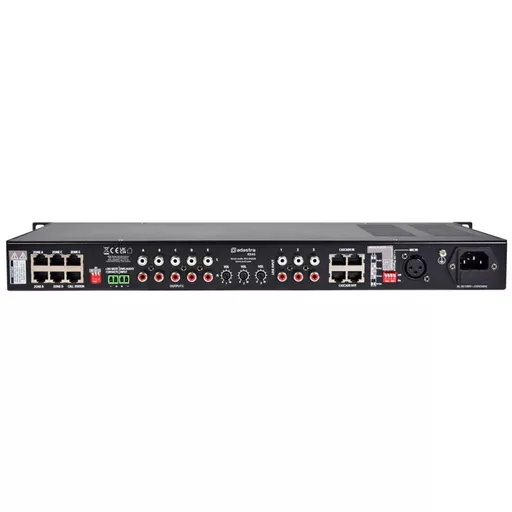

InputsPaging mic. (XLR), 3 x stereo line (RCA) + call station (RJ45)
Microphone : input sensitivity-41dBV
Line input : sensitivity-12.5dBV
Call station input : sensitivity+4dBV
Emergency control24V mute contacts and emergency audio input
EMG input: sensitivity-10dBV
Signal to noise ratio : mic65dB
Signal to noise ratio : line73dB
Outputs5 x stereo zones (RCA)
Output impedance : line600 ohms
THD +N<0.1% @ 1kHz
Monitor outputsStereo 3.5mm headphone jack (selected channel)
Phantom power+24V switchable for paging mic.
Remote control connection8P8C (RJ45)
Link connection2 x 8P8C (RJ45)
Frequency response : ±3dB20Hz - 20kHz
Attenuation-30dB (paging)
Dimensions 44 x 190 x 483mm
Weight 2.608kg
