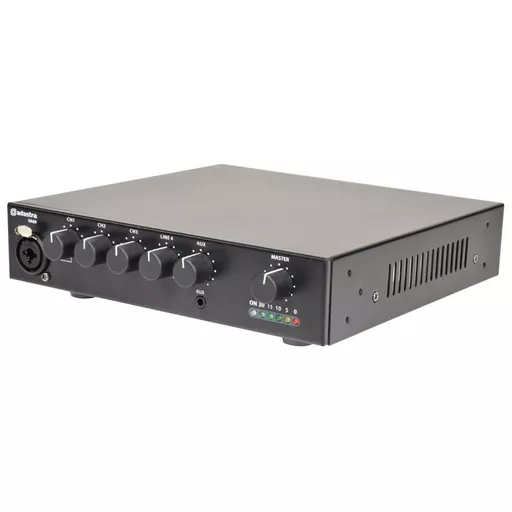

Adastra UA60 Compact 5ch 100v Mixer-Amplifier 60w

Brand: Adastra

Adastra UA60 Compact 5ch 100v Mixer-Amplifier 60w

Product Code: UA60

£135.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

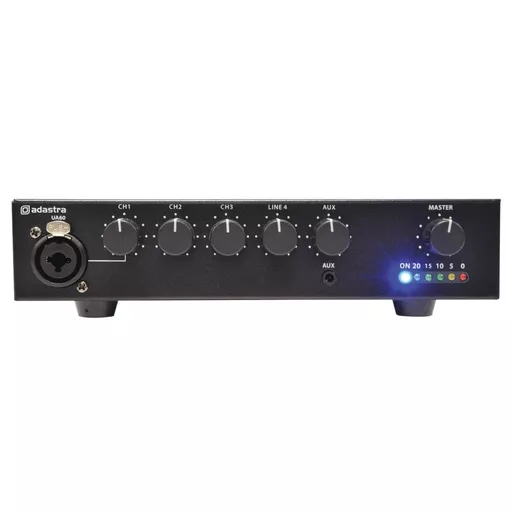

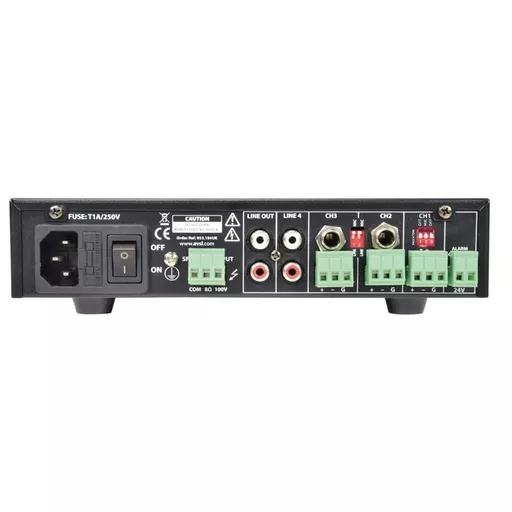

The Adastra UA-60 is a 100V mixer-amplifier with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

Supplied with hardware for rack-mounting 2 units
5 input channels
24V fire alarm mute contacts
100V line or 8 Ohms operation
Switchable +20V phantom power CH1
Output Power : 60w RMS
Power supply 170-264Vac, 50Hz (IEC)
Construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Phantom power +20V CH1 (XLR or rear terminals)
Line output 2 x RCA (mono)
Speaker output Euroblock terminals: 100V / 8 Ohms / Com
Mute 24V relay contacts
Input impedance 1k Ohms (mic/line)
Frequency response 100Hz - 18kHz
Dimensions : 269 x 210 x 44mm
Weight : 2.47Kg
