Adastra UM90 Compact 100v Mixer-Amplifier 90w

UM90



Product Code: UM90

Brand: Adastra



Adastra UM90 Compact 100v Mixer-Amplifier 90w

Brand: Adastra

Adastra UM90 Compact 100v Mixer-Amplifier 90w

Product Code: UM90

£169.00

89 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

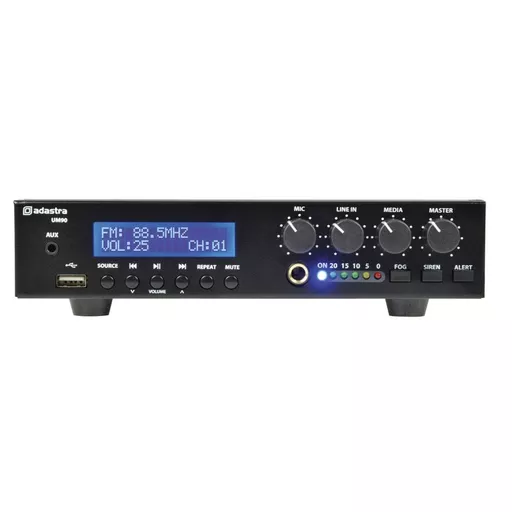

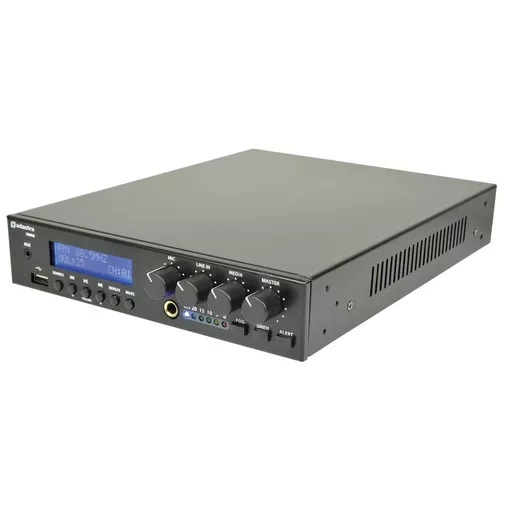

The Adastra UM-90 is a 100V mixer-amplifier with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.


  • Ultra compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Bluetooth with programmable ID
  • Output Power : 90w RMS (80w @ 24dc power)
  • Alarm Output : Fog, Siren & Alert Generator
  • Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
  • ConstructionClass D + transformer output
  • Audio source Internal USB/FM/BT player
  • Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
  • Line output 2 x RCA (mono)

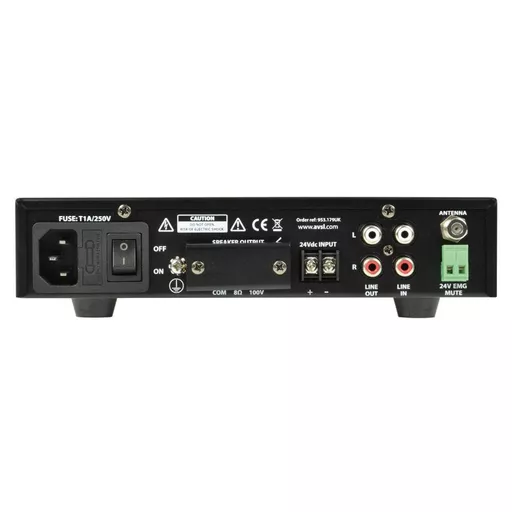

  • Speaker outputs Screw terminals - 100V / 8 Ohms / Com
  • DC power 24Vdc screw terminals
  • Mute 24V relay contacts
  • Dimensions : 300 x 210 x 44mm
  • Weight : 3.02Kg
