Adastra US60 Compact 100v Slave Amplifier 60w

US60



Product Code: US60

Brand: Adastra



Adastra US60 Compact 100v Slave Amplifier 60w

Brand: Adastra

Adastra US60 Compact 100v Slave Amplifier 60w

Product Code: US60

£129.00

102 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

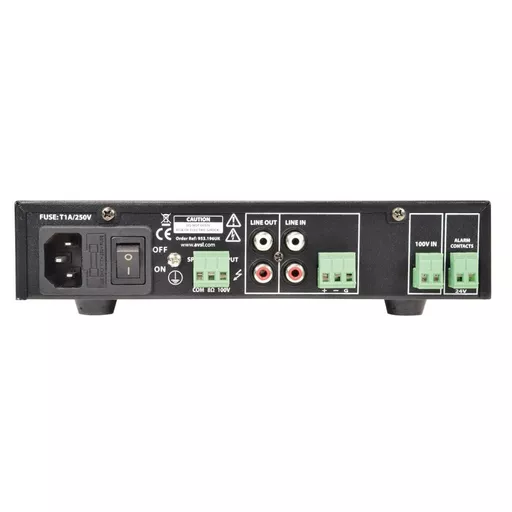

The Adastra US60 100V slave amplifier is built into a half width 1U housing. In addition to RCA line input and output, the US amplifiers have a 100V input on removable screw terminals, which enables the amplifier to be connected in parallel with existing 100V speakers to extend the system. Mono output to either 100V line or an 8 ohm speaker load is connected via a separate removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.



  • Can expand an existing 100V speaker system directly from the speaker cable
  • Supplied with hardware for rack-mounting 2 units
  • 100V input for connection in parallel with existing 100V speakers
  • 24V fire alarm mute contacts
  • 100V line or 8 Ohms operation
  • Power supply 170-264Vac, 50Hz (IEC)
  • Construction Class D + transformer output
  • Inputs : Line (RCA), 100V (Euroblock +/-)
  • Line output : 2 x RCA (mono)
  • Speaker output : Euroblock terminals: 100V / 8 Ohms / Com
  • Mute : 24V relay contacts
  • Frequency response : 100Hz - 18kH
  • Dimensions : 269 x 210 x 44mm
  • Weight : 2.30Kg
