Adastra UX120 Compact 100V Mixer-Amplifier 120W *EX-DEMO*

7448



Product Code: 7448

Brand: Adastra



Adastra UX120 Compact 100V Mixer-Amplifier 120W *EX-DEMO*

Brand: Adastra

Adastra UX120 Compact 100V Mixer-Amplifier 120W *EX-DEMO*

Product Code: 7448

Was £191.00

£162.00

1 in stock

Next Working Day Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




This unit is sold as EX-DEMO and is part of our SHOWROOM CLEARANCE. The item has been used briefly in our own showroom and may show minor signs of this. Full working order with the original warranty intact.

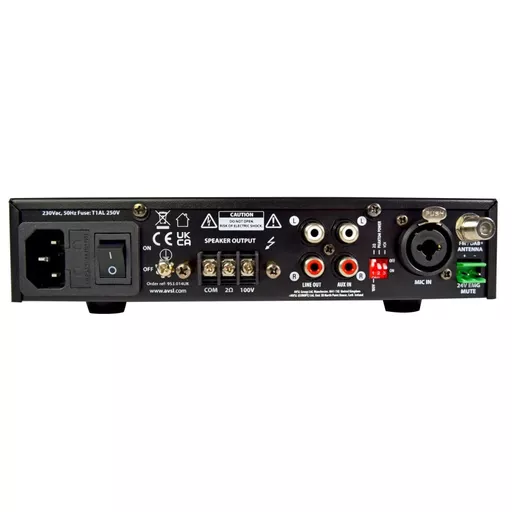

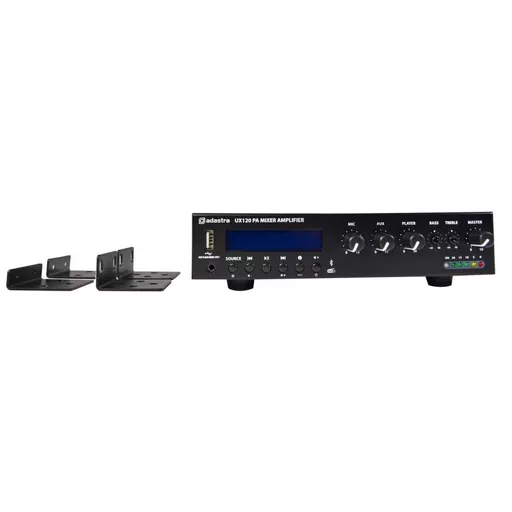

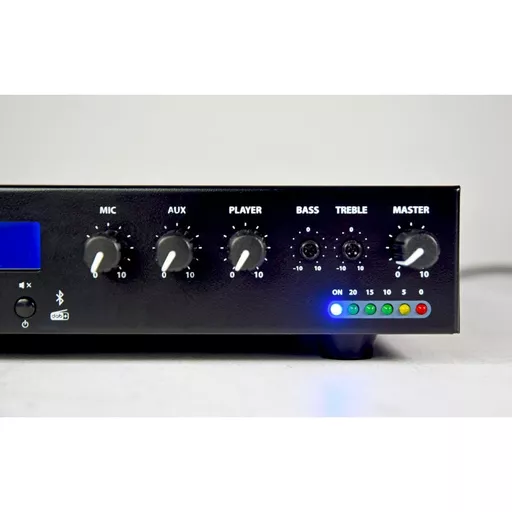

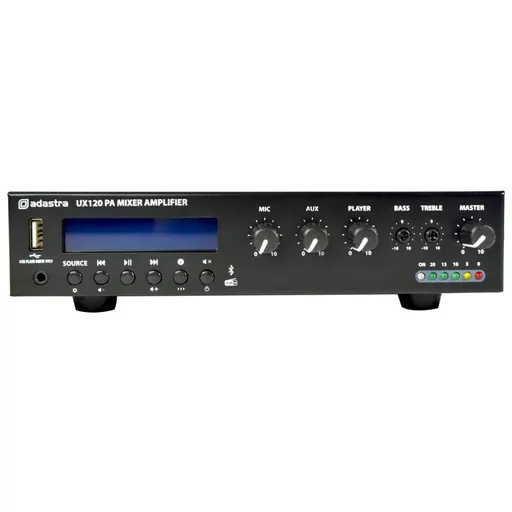

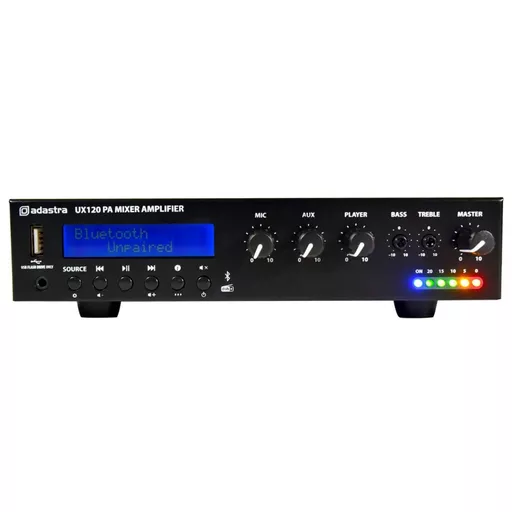

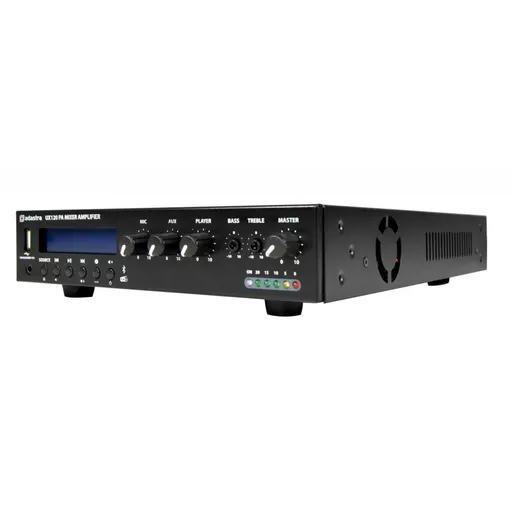

Compact and high power 100V mixer-amplifiers with built-in media player. A combination jack/XLR microphone input has switchable phantom power and optional Vox priority function. Music playback is served by the internal media player, which has selectable source for USB mp3 playback, DAB+ or FM radio tuner, Bluetooth®, or a front mounted 3.5mm Aux input. An Aux line input has an independent volume control on the front panel. The amplifier produces a high power output to either 100V line or low impedance speaker loads down to 2 ohms, switchable via a DIP switch and connected on screw terminals, with level governed by a Master volume control and EQ handled by mini Bass and Treble rotary controls. The rear panel also has connections for a DAB+ or FM antenna or aerial and 24V mute contacts for triggering from a fire panel or emergency evacuation system. Each amplifier is supplied with brackets for mounting 2 units side by side in a 1U 19" rack or fitted to flat-mount the amplifier against a wall or under a counter-top. With a minimal control footprint and easy-to-manage controls, these mixer-amplifiers represent a versatile platform to build a public address installation for medium-sized areas or paired with further amplifiers as part of a wider sound system.

  • Bluetooth, DAB+/FM and USB media player
  • Bass & Treble EQ
  • Low impedance stable down to 2 Ohms
  • Half-width 1U rackmount or surface-mountable

  • Power supply 170-264Vac, 50Hz (IEC)
  • Amplifier : constructionClass D + transformer output
  • Audio sourceInternal USB/DAB+/FM/BT player
  • Inputs 1 x mic (jack/XLR), 1 x line (2 x RCA), 1 x aux (3.5mm)
  • Line output2 x RCA (mono)
  • Speaker outputsScrew terminals - 100V / 2 Ohms / Com
  • Mute24V relay contacts
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity -10dB (line), -45dB (mic)
  • Bluetooth version5.0
  • Output power rms 120W
  • Dimensions 320 x 210 x 54mm
  • Weight 3.36kg
