Adastra UX240 Compact 100V Mixer-Amplifier 240w

UX240



Product Code: UX240

Brand: Adastra



Adastra UX240 Compact 100V Mixer-Amplifier 240w

Brand: Adastra

Adastra UX240 Compact 100V Mixer-Amplifier 240w

Product Code: UX240

£231.00

180 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Compact and high power 100V mixer-amplifiers with built-in media player. A combination jack/XLR microphone input has switchable phantom power and optional Vox priority function. Music playback is served by the internal media player, which has selectable source for USB mp3 playback, DAB+ or FM radio tuner, Bluetooth®, or a front mounted 3.5mm Aux input. An Aux line input has an independent volume control on the front panel. The amplifier produces a high power output to either 100V line or low impedance speaker loads down to 2 ohms, switchable via a DIP switch and connected on screw terminals, with level governed by a Master volume control and EQ handled by mini Bass and Treble rotary controls. The rear panel also has connections for a DAB+ or FM antenna or aerial and 24V mute contacts for triggering from a fire panel or emergency evacuation system. Each amplifier is supplied with brackets for mounting 2 units side by side in a 1U 19" rack or fitted to flat-mount the amplifier against a wall or under a counter-top. With a minimal control footprint and easy-to-manage controls, these mixer-amplifiers represent a versatile platform to build a public address installation for medium-sized areas or paired with further amplifiers as part of a wider sound system.

  • Bluetooth, DAB+/FM and USB media player
  • Bass & Treble EQ

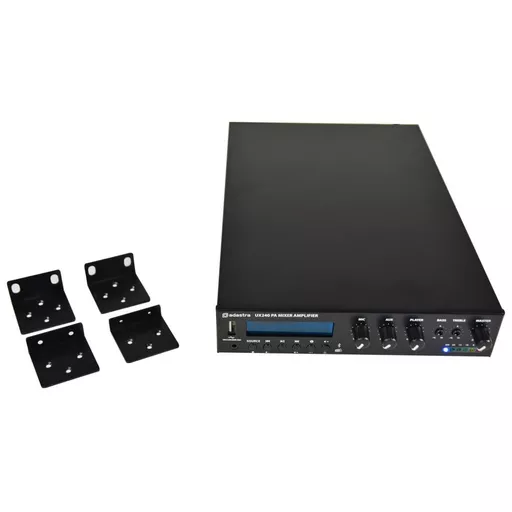

  • Low impedance stable down to 2 Ohms
  • Half-width 1U rackmount or surface-mountable

  • Power supply 170-264Vac, 50Hz (IEC)
  • Amplifier : constructionClass D + transformer output
  • Audio source Internal USB/DAB+/FM/BT player
  • Inputs1 x mic (jack/XLR), 1 x line (2 x RCA), 1 x aux (3.5mm)
  • Line output2 x RCA (mono)

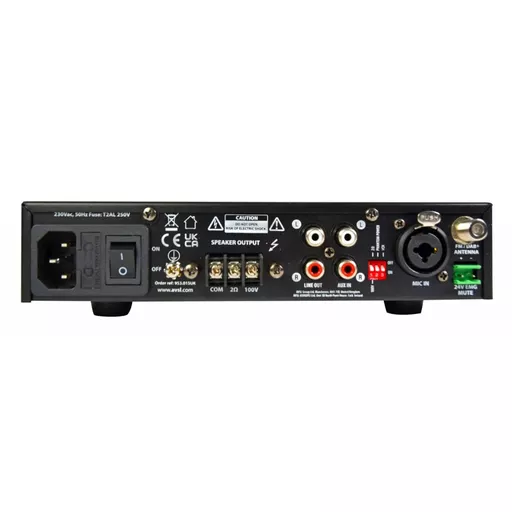

  • Speaker outputsScrew terminals - 100V / 2 Ohms / Com
  • Mute24V relay contacts
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity- 10dB (line), -45dB (mic)
  • Bluetooth version 5.0
  • Output power rms 240W
  • Dimensions 350 x 210 x 54mm
  • Weight 4.32kg
