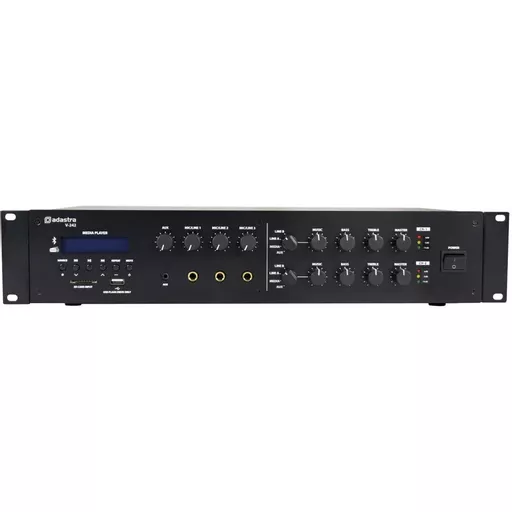

Adastra V-242 Mixer-Amplifier 100v w/ DAB+FM/USB/SD/BT

V-242



Product Code: V-242

Brand: Adastra



Adastra V-242 Mixer-Amplifier 100v w/ DAB+FM/USB/SD/BT

Brand: Adastra

Adastra V-242 Mixer-Amplifier 100v w/ DAB+FM/USB/SD/BT

Product Code: V-242

£459.00

205 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Fully-featured mixer-amplifier with class-D amplifier section, delivering 100V or low impedance output to 2 independant public address zones. Featuring a built-in audio player with Bluetooth® and DAB+/FM receiver, along with a USB/SD mp3 player for flexible and convenient playback of music or spoken information. Inputs include 3 balanced mic/line channels, which are live to both zones at all times, with switchable phantom power and selectable priority for channel 1. Additionally, a rotary selector for each zone can switch between 2 unbalanced line inputs, an auxiliary line input or the internal audio player section. Speaker connections are provided on screw terminal blocks with options for 100V line or 4-8 Ohm low impedance loads. Each zone also has an unbalanced line output if further amplifiers are to be connected to expand the system. Multiple input connections and convenient playback options make this amplifier a complete problem-solver for installers and venue owners, providing flexible and dependable control for distributed audio in commercial and leisure environments.

  • Bluetooth, DAB+/FM and USB/SD media player
  • 3 mono inputs and 1 selectable stereo source
  • 2 independent 100V or low impedance zones
  • Bass & Treble EQ for each zone
  • Front jacks or rear combo and screw inputs for channels 1-3

  • Power output 2 x 240Wrms
  • Weight 7.20kg
  • Power supply 170-264Vac, 50Hz (IEC)
  • Audio source DAB+/FM/USB/SD/BT audio player
  • Inputs 3 x mic/line (Jack/XLR/screw), 2 x line (RCA), Aux (RCA/3.5mm)
  • Zone outputs: line 2 x RCA
  • Zone outputs: speaker 2 x terminal outputs 100V/8 Ohms/4 Ohms/COM
  • Phantom power +20V switchable to XLR inputs
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity -11dB (line), -46dB (mic)
  • THD <0.76% @ 1kHz
  • SNR 84dB (line), 82dB (mic)
  • Bluetooth version 5.0
  • Frequency response 100Hz - 20kHz
  • Dimensions435 x 273 x 88mm (feet removed)
