Adastra Z5M 5 Zone Mixer

Z5M



Product Code: Z5M

Brand: Adastra

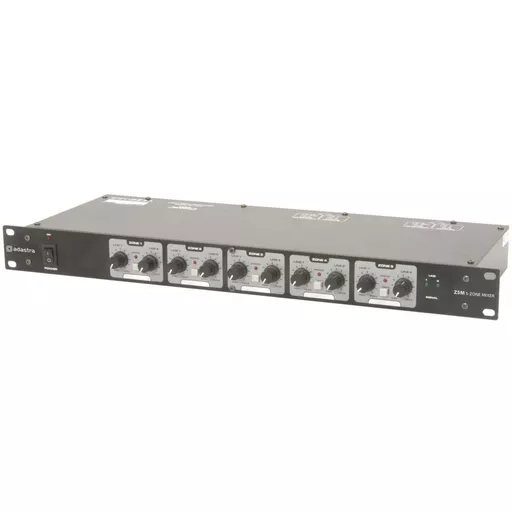

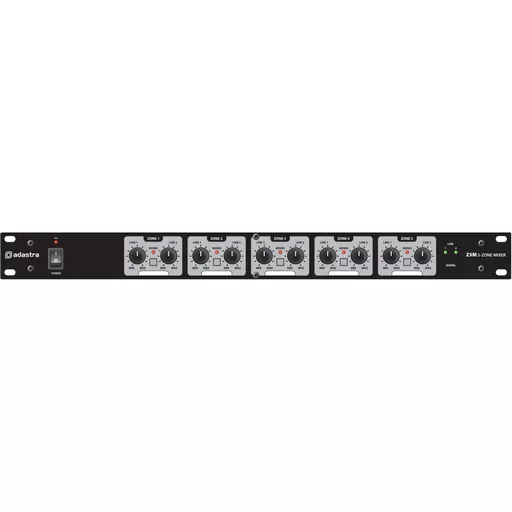

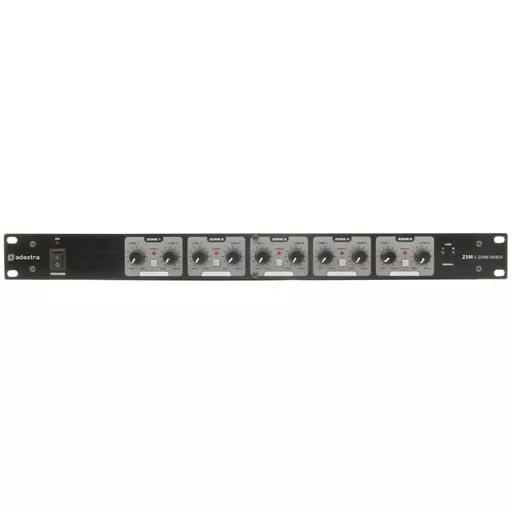

Adastra Z5M 5 Zone Mixer

Brand: Adastra

Adastra Z5M 5 Zone Mixer

Product Code: Z5M

£94.00

37 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

  • 2 inputs to 5 zones
  • Mono selectable for each zone

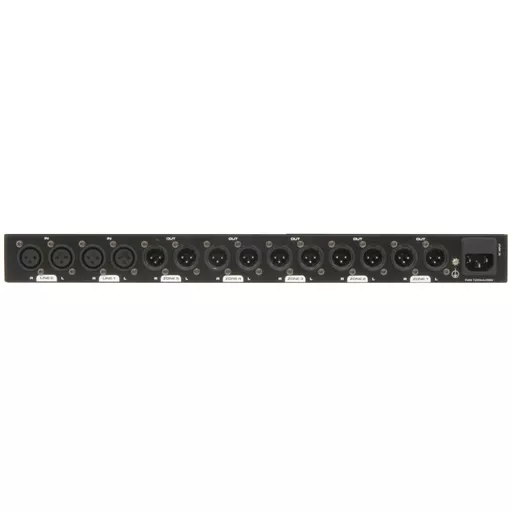

  • Fully balanced XLR connections

  • Power supply 115/230Vac 50/60Hz (IEC)
  • InputsLine 1 L+R, Line 2 L+R, balanced XLRF
  • Outputs Zone 1 to 5 L+R, balanced XLRM
  • Input impedance 40k Ohms
  • Output impedance 220 Ohms
  • Frequency response 20Hz - 25kHz, +0/-1dB
  • Signal to noise ratio>100dB
  • THD<0.005%
  • Dimensions 483 x 175 x 44mm
  • Weight 2.2kg
