Adastra Add-On 100v Washroom / Corridor Ceiling Speaker Bundle

4847



Product Code: 4847

Brand: Adastra



Adastra Add-On 100v Washroom / Corridor Ceiling Speaker Bundle

Brand: Adastra

Adastra Add-On 100v Washroom / Corridor Ceiling Speaker Bundle

Product Code: 4847

£199.00

37 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Add-on mini 100V ceiling speaker packages for commercial PA systems are designed to enable the installer to add sound for corridors, washrooms and smaller areas. US series slave amplifiers can be rack mounted in pairs or easily fixed to a wall or under a worktop and can accept the 100V speaker feed as a signal input. Simply connect the 100V input of the US slave amplifier to the last speaker in line as if it was another speaker and then power the mini ceiling speakers from it. Using lower tappings, more speakers can be addded to the amplifier, provided that the total combined speaker Watts is <90% its max output power.

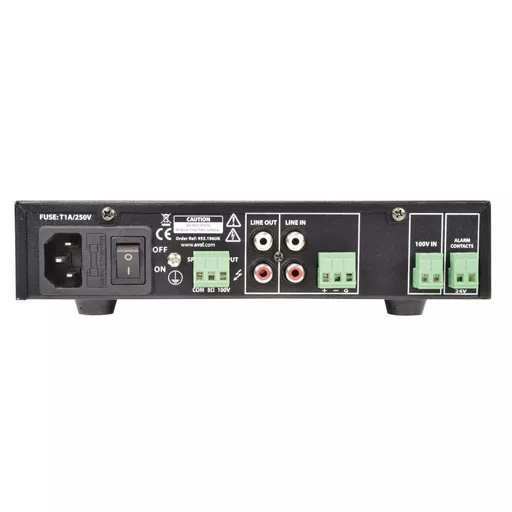

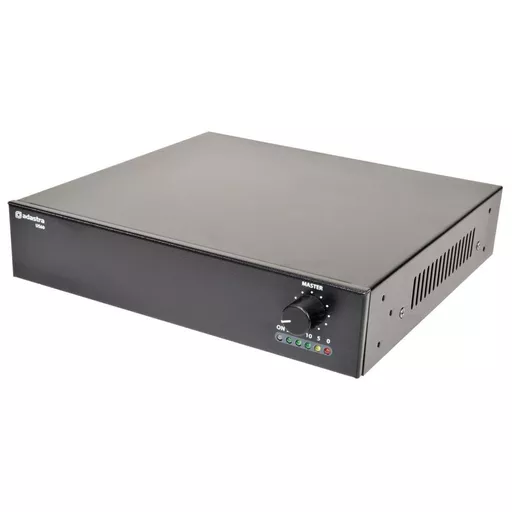

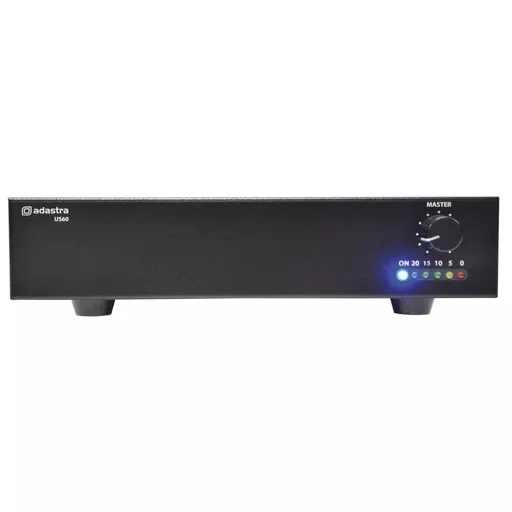

The Adastra US60 100V slave amplifier is built into a half width 1U housing. In addition to RCA line input and output, the US amplifiers have a 100V input on removable screw terminals, which enables the amplifier to be connected in parallel with existing 100V speakers to extend the system. Mono output to either 100V line or an 8 ohm speaker load is connected via a separate removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

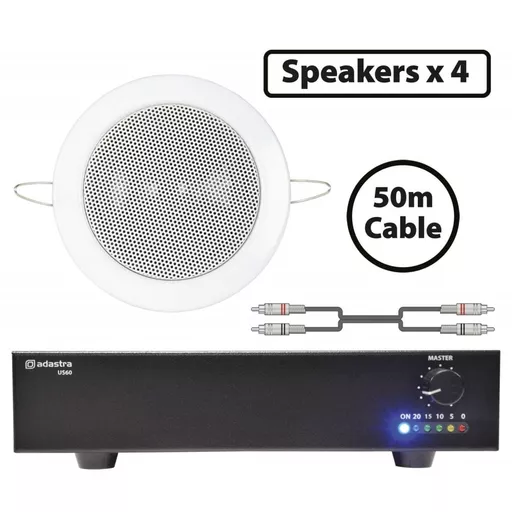

 Bundle Contents ...
  • 4x Adastra EC36V 3" Metal Bathroom 100v Ceiling Speaker
  • 1x Adastra US60 Compact 100v Slave Amplifier 60w
  • 1x elumen8 INSTALL 2 x 0.75mm2 Speaker Cable, 50m Drum White

US60

  • Can expand an existing 100V speaker system directly from the speaker cable
  • Supplied with hardware for rack-mounting 2 units
  • 100V input for connection in parallel with existing 100V speakers
  • 24V fire alarm mute contacts
  • 100V line or 8 Ohms operation
  • Power supply 170-264Vac, 50Hz (IEC)
  • Construction Class D + transformer output
  • Inputs : Line (RCA), 100V (Euroblock +/-)
  • Line output : 2 x RCA (mono)
  • Speaker output : Euroblock terminals: 100V / 8 Ohms / Com
  • Mute : 24V relay contacts
  • Frequency response : 100Hz - 18kH
  • Dimensions : 269 x 210 x 44mm
  • Weight : 2.30Kg

EC36V

  • Powder coated steel housing
  • 100V transformer with 3W & 6W tappings
  • Water-resistant coated paper cone
  • 100V line tappings 3W, 6W
  • Driver75mmØ (3") coated paper cone
  • Sensitivity 87dB
  • Frequency response 120Hz - 20kHz
  • Cut-out dimensions 95mmØ
  • Mounting depth 70mm
  • Construction Pressed steel frame & basket
  • Dimensions 70 x 100mmØ
  • Weight 384g
