Adastra Market Ground / Forecourt 100v Horn Speaker Bundle

4848



Product Code: 4848

Brand: Adastra



Adastra Market Ground / Forecourt 100v Horn Speaker Bundle

Brand: Adastra

Adastra Market Ground / Forecourt 100v Horn Speaker Bundle

Product Code: 4848

£439.00

16 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Outdoor 100V moulded ABS horn speaker packages comprise a full kit for delivering voice alerts in industrial and public outdoor (or indoor) areas. Horn speakers are the most rugged of all speaker units, able to withstand adverse weather conditions and have a focussed mid-range sound for voice projection. UA series mixer amplifiers can be rack mounted in pairs or easily fixed to a wall or under a worktop and have 3 mic/line input channels, 1 Line and 1 Aux input. Each package matches the maximum Wattage tappings of all horn speakers with the max. power of the UA series amplifier (<90% volume setting recommended). Using lower tappings, more speakers can be addded to the amplifier, provided that the total combined speaker Watts is <90% its max output power.

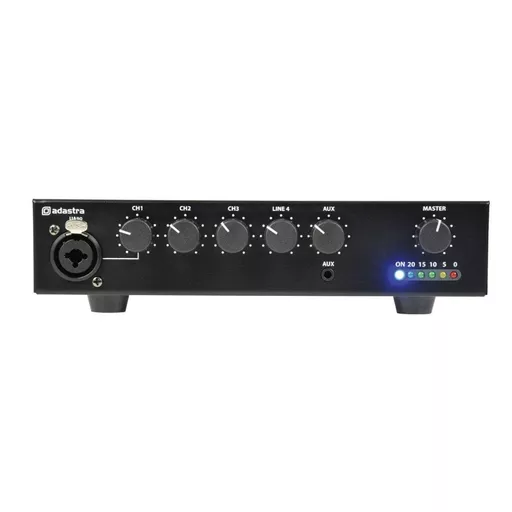

The Adastra UA-90 is a 100V mixer-amplifier with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

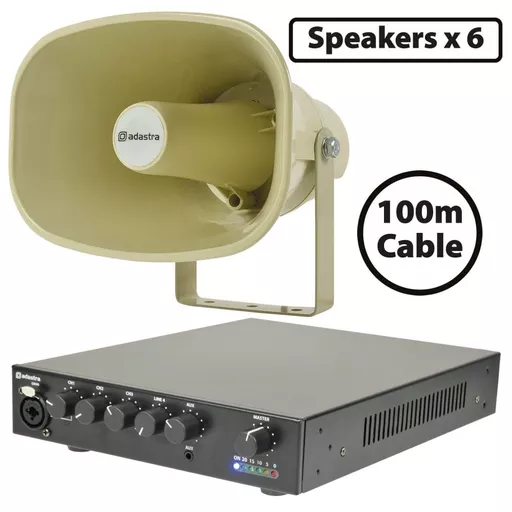

Bundle Contents ...

  • 6x Adastra EH15V Horn Speaker 100v 15w
  • 1x Adastra UA90 Compact 5ch 100v Mixer-Amplifier 90w
  • 1x elumen8 INSTALL 2 x 0.75mm2 Speaker Cable, 100m Drum White

UA90

  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 24V fire alarm mute contacts
  • 100V line or 8 Ohms operation
  • Switchable +20V phantom power CH1
  • Output Power : 90w RMS
  • Power supply 170-264Vac, 50Hz (IEC)
  • Construction Class D + transformer output
  • Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
  • Phantom power +20V CH1 (XLR or rear terminals)
  • Line output 2 x RCA (mono)

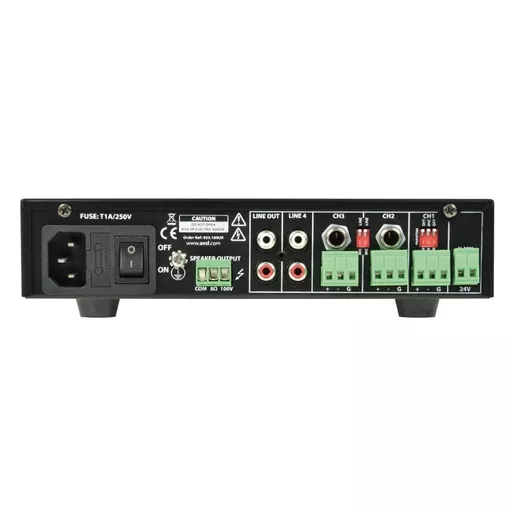

  • Speaker output Euroblock terminals: 100V / 8 Ohms / Com
  • Mute 24V relay contacts
  • Frequency response 100Hz - 18kHz
  • Dimensions : 300 x 210 x 44mm
  • Weight : 2.99Kg

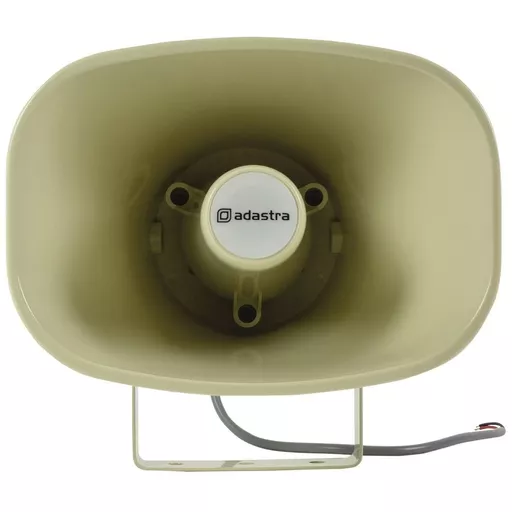

EH15V

  • IP rating IP56
  • Cable : length350mm
  • Power rms 15W
  • Frequency response 500Hz - 7kHz
  • SPL @ 1W/1m 100dB
  • Impedance 670, 1.3k, and 2.6k and 8 Ohms
  • Tappings 15W, 7.5W, 3.75W and 8 Ohms
  • Dimensions 233 x 220 x 158mm
  • Weight 1.4kg
