Adastra RM244V & 16 Speakers 4-Zone Announcement & Background Music System

Brand: Adastra

Adastra RM244V & 16 Speakers 4-Zone Announcement & Background Music System

Product Code: 6393

£1059.00

1 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

This large 16 speaker audio system is well suited and designed for any office space or call centre with various rooms and floors. If you're looking to combine PA announcements over background music this is the ideal system for you. Four zones can be controlled to give you freedom and versatility over what you play and where.

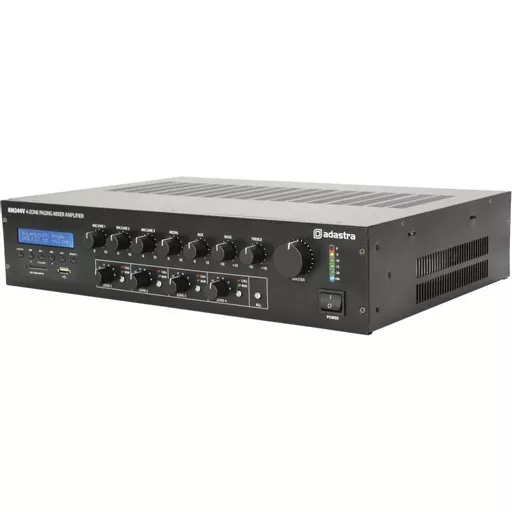

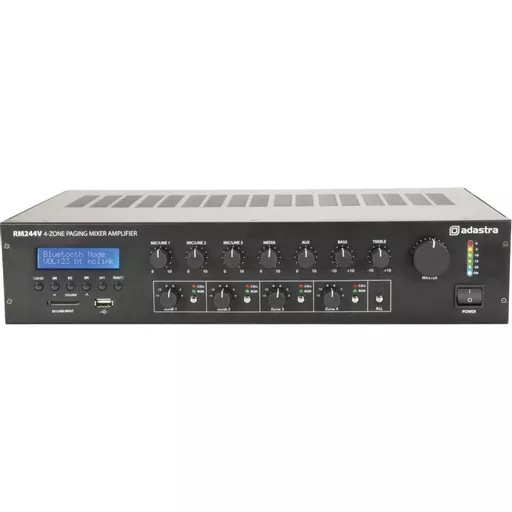

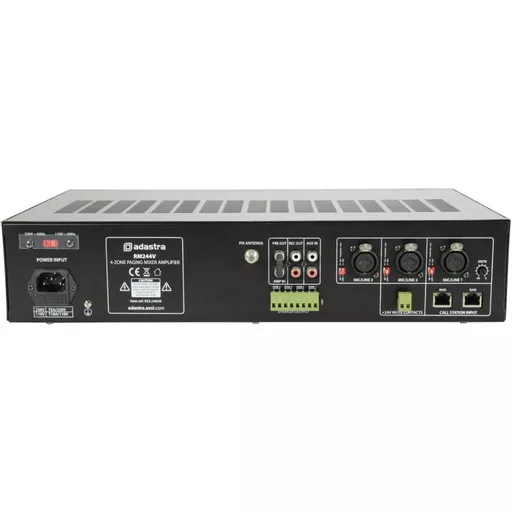

The Adastra RM244V is a 240W mixer-amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.

Built-in USB/SD player with Bluetooth and FM tuner
Compatible with CS4 call station (953.146UK)
4 individual volume attenuators
Switchable +20V phantom power
Send/return loop for connection to audio processors or amplifiers
Supplied with 19" rack-mount ears (2U)
Bluetooth with programmable ID

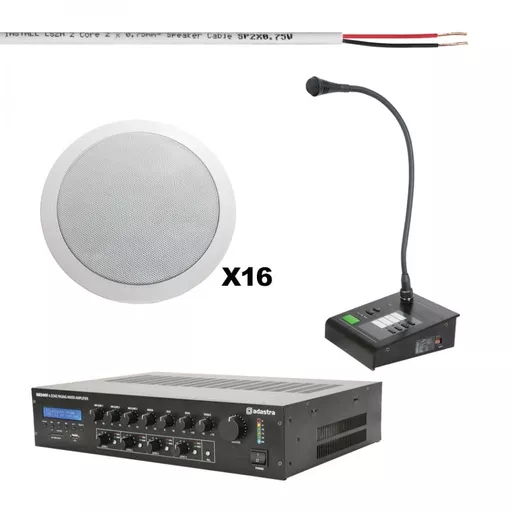

Bundle Contents ...

1x Adastra RM244V 100v Mixer Amplifier with 4-Zone Paging
1x Adastra Call Station for RM244V Mixer Amplifier
16x Adastra CC6V 100v 6.5" Ceiling Speaker with Control
1x elumen8 INSTALL 2 x 0.75mm2 Speaker Cable, 100m Drum White

Adastra RM244V

Power supply110/230Vac, 50/60Hz (IEC)
Output power : rms240W (shared across 4 zones @ 100V)
Inputs3 x mic/line (jack/XLR), 1 x aux (RCA)
Input sensitivity : mic-47dBV
Input impedance : mic5k Ohms
Input sensitivity : line-10dBV
Input impedance : line1k Ohms
Call station input 2 x RJ45 (for optional CS-4 call stations)
Line output RCA
Sends : returns Pre out, amp in (RCA)
Channel controls Ch1, Ch2, Ch3, Media and Aux volume
Output controls Master volume, 4 x zone volumes & mutes
Equaliser : bass100Hz ±10dB
Equaliser : treble10kHz ±10dB
Phantom power +20V (switchable inputs 1-3)
Audio source USB/SD player, FM tuner and Bluetooth receiver
Bluetooth version 5.0
Fire alarm contacts 24V screw terminals
Protection Short circuit, overload, overheat
Speaker : outputs 4 x 100V (modular terminal block)
Dimensions 430 x 315 x 89mm
Weight 10.4kg

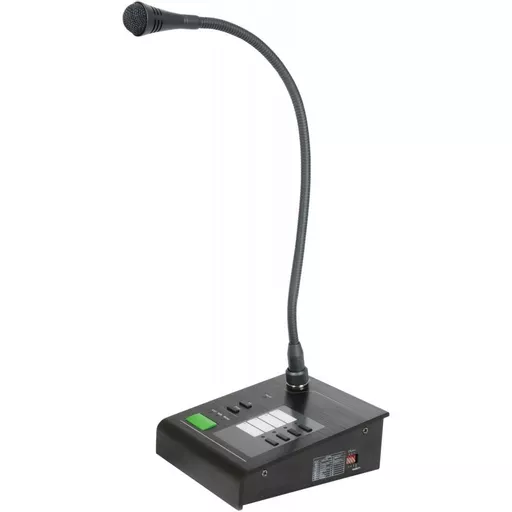

CS4

For use with the RM244V amplifier (953.244UK)
Assignable to individual or all 4 zones
8 selectable chime settings
3.5mm aux input
Up to 1km remote wiring over CAT5
Supplied with 1m RJ45 patch lead

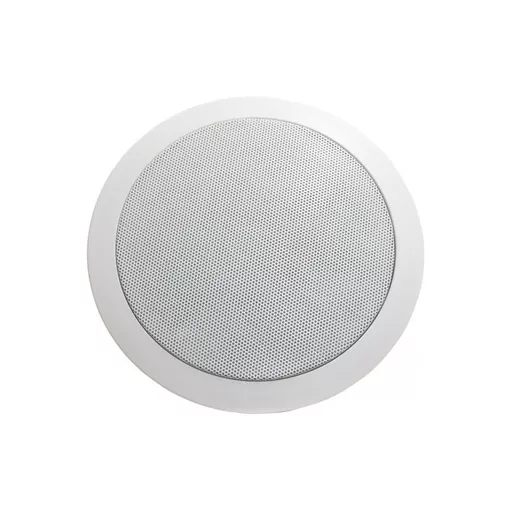

CC6V
