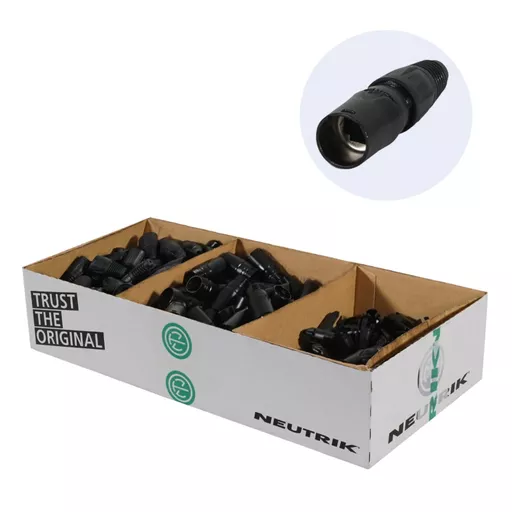

The Neutrik NE8MX-B-1-D is a bulk box containing 100 disassembled black etherCON cable connector housings. Each housing converts a compatible conventional RJ45 plug into a rugged, lockable connection for professional Ethernet and network applications.

This bulk package is intended for cable manufacturers, installers, production companies and technical departments assembling larger quantities of professional network cables. The shells, cable chucks and boots are supplied as separate components ready for fitting to non-preassembled cables.

RJ45 plugs are not included and must be purchased separately.

Rugged Protection for RJ45 Connections

Standard RJ45 connectors can be vulnerable to damage when used in touring, live production and demanding commercial environments. The NE8MX-B-1 surrounds the RJ45 plug with a robust zinc diecast shell, helping protect the plug and its fragile locking components.

When connected to a compatible etherCON chassis socket, the housing creates a secure and lockable data connection. Its chuck-type strain relief helps reduce pressure on the cable termination during installation, handling and regular use.

The housing also has a flat section to assist with orientation during assembly and connection.

Professional Audio, Lighting and Video Networks

The etherCON system is widely used for Ethernet-based audio, lighting and video networks. Typical applications include digital mixing systems, stage boxes, lighting control networks, video distribution, network switches and other professional production equipment.

The housing itself does not determine the data category or transmission performance of the completed cable. Final network performance will depend on the cable and RJ45 plug selected for the assembly.

Designed for Non-Preassembled Cables

The NE8MX-B-1 housing is specifically designed for cables that have not already been terminated with an RJ45 plug. The housing components must be placed onto the cable during the termination and assembly process.

The supplied boot supports cables with an outside diameter between 3.5mm and 8mm. The carrier accepts many commonly used RJ45 plugs, although compatibility should be confirmed before beginning a large cable production run.

The completed connector does not intermate with the Neutrik NE8FDY-C6 or NE8FDY-C6-B CAT6 chassis connectors.

Black KTL-Coated Housing

The connector carrier uses a zinc diecast shell with a durable black KTL coating. This provides a discreet finish suitable for professional stage systems, equipment racks and permanent installations.

The boot is manufactured from polyamide, while the internal chuck-type strain relief uses polyacetal. Optional coloured boots are available separately for cable identification and system coding.

Bulk Pack for Cable Assembly

The box provides the disassembled components required to assemble 100 etherCON cable connector housings. Bulk packaging offers a convenient solution for system builders and cable assembly departments that require consistent connectors across multiple network cables.

Key Features

• Bulk box of 100 etherCON cable connector housings
• Supplied as disassembled components
• Current NE8MX series connector carrier design
• Converts a compatible RJ45 plug into a rugged lockable connection
• Designed for professional Ethernet and data applications
• Suitable for audio, lighting and video network systems
• Intended for non-preassembled cables
• Accepts many commonly used RJ45 plugs
• RJ45 plugs are not included
• Rugged zinc diecast outer shell
• Durable black KTL shell coating
• Flat section assists with connector orientation
• Chuck-type cable strain relief
• Polyamide cable boot
• Polyacetal strain relief components
• Suitable for cable diameters from 3.5mm to 8mm
• Rated for more than 1,000 mating cycles
• Insertion force of no more than 20N
• Withdrawal force of no more than 20N
• Operating temperature range of -30°C to +80°C
• Optional coloured boots available for cable identification
• Not compatible with NE8FDY-C6 or NE8FDY-C6-B CAT6 chassis connectors

Frequently Asked Questions

Q: How many etherCON housings are included?

A: The box contains the disassembled components required to assemble 100 black NE8MX-B-1 etherCON cable connector housings.

Q: What components are supplied?

A: Each housing consists of a black zinc diecast shell, cable chuck and black boot. The components are supplied separately for assembly.

Q: Are RJ45 plugs included?

A: No. This package contains the protective etherCON housings only. Compatible RJ45 plugs must be purchased separately.

Q: Can these housings be fitted to finished RJ45 patch cables?

A: No. The NE8MX-B-1 is intended for non-preassembled cables because its components must be fitted during the cable termination process.

Q: What cable diameter is supported?

A: The boot is suitable for cables with an outside diameter between 3.5mm and 8mm.

Q: Are the housings compatible with every RJ45 plug?

A: They accept many commonly used RJ45 plugs, but compatibility should be checked before beginning a large production quantity.

Q: Are they compatible with Neutrik CAT6 chassis connectors?

A: They do not intermate with the NE8FDY-C6 or NE8FDY-C6-B CAT6 chassis connectors.

Q: Is the NE8MX-B-1-D waterproof?

A: This model is not specified with an IP weather protection rating. A suitable etherCON TOP product should be selected when a weather-resistant connection is required.

Q: What applications are these housings suitable for?

A: They are suitable for professional Ethernet connections used with digital audio equipment, lighting control systems, video networks, stage boxes and other compatible network devices.
