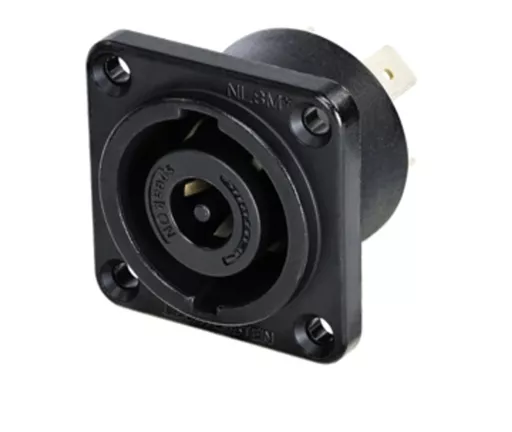

Neutrik NLT8MPXX-BAG Speakon STX 8-pole Female Chasis Connector

NLT8MPXX-BAG



Product Code: NLT8MPXX-BAG

Brand: Neutrik



Neutrik NLT8MPXX-BAG Speakon STX 8-pole Female Chasis Connector

Brand: Neutrik

Neutrik NLT8MPXX-BAG Speakon STX 8-pole Female Chasis Connector

Product Code: NLT8MPXX-BAG

£16.00

58 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

Free Standard Delivery over £50

Spend another £50 to qualify




The Neutrik NLT8MPXX-BAG is an 8-pole female speakON chassis connector for professional amplifier and loudspeaker connections. Part of the STXX series, it combines a robust black metal housing with Neutrik’s Quick Lock system for demanding touring and installed sound applications.

Its square G-size flange supports front or rear panel mounting, with four countersunk fixing holes and ¼-inch flat-tab terminals. A continuous current rating of 30A per contact and compatibility with the speakON 8-pole series make it suitable for building or replacing connections in compatible PA equipment.

Features & Specifications

  • 8-pole female speakON STXX chassis connector.
  • Black metal housing with square G-size flange.
  • Front or rear mounting with four countersunk through-holes.
  • ¼-inch flat-tab terminals.
  • Quick Lock connection.
  • Compatible with the speakON 8-pole product series.
  • Continuous current rating: 30A RMS per contact.
  • Rated voltage: 250V AC; not for AC/DC mains or power-supply connections.
  • Silver-plated copper-alloy contacts.
  • Contact resistance: less than 2mΩ.
  • Glass-reinforced insert with UL 94 V-0 flammability classification.
  • IEC 61984 component certification.
  • Service life: more than 5,000 mating cycles.
  • Protection rating: IP50 when mated.
  • Operating temperature: -30°C to +80°C.

FAQs

Q: Will it accept 2-pole or 4-pole speakON connectors?
A: It is designed for compatible 8-pole speakON connections, not 2-pole or 4-pole plugs.

Q: Is this a cable connector?
A: No. It mounts into an equipment panel or loudspeaker chassis.
