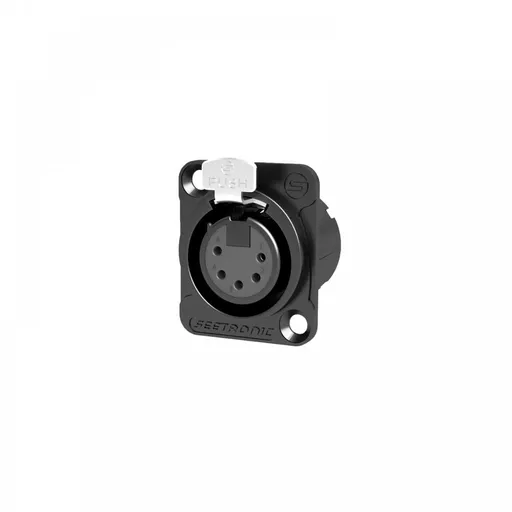

Seetronic XLR 5-Pin Chassis Socket Black (MK5F2C-B)

CONN1052



Product Code: CONN1052



Seetronic XLR 5-Pin Chassis Socket Black (MK5F2C-B)

Seetronic XLR 5-Pin Chassis Socket Black (MK5F2C-B)

Product Code: CONN1052

£2.75

242 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




D-type XLR chassis connector designed to fit into industry standard panel cut-outs. The Zinc alloy die-cast shell offers a stable connection platform for interconnection with most brands of standard XLR connectors.


  • 5-pin Chassis socket (female)
  • Black plated zinc alloy die-cast shell
  • Silver plated contacts
  • Short axial size, space saving and lightweight
  • Standard D-type installation size, can be installed both from the front or the back of the panel
  • Contact resistance: ≤5mΩ
  • Insulation resistance: 10GΩ
  • Rated voltage: 50Vac
  • Lifetime: ≤1000 times cycles
  • Insertion and extraction force: ≤20Nm
