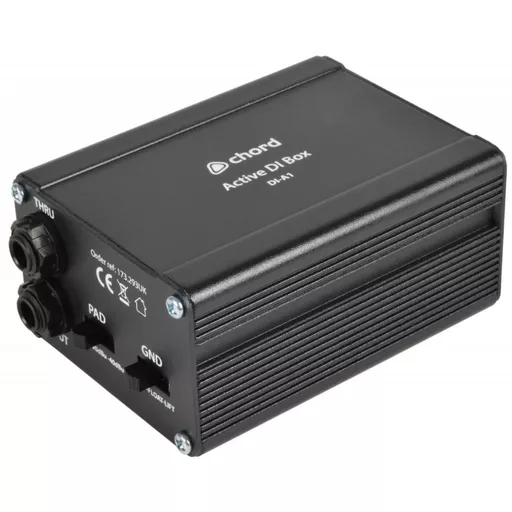

Chord DI-A1 Active Direct Injection Box

Brand: Chord

Chord DI-A1 Active Direct Injection Box

Product Code: DI-A1

£19.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.

Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching

Power supply 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power

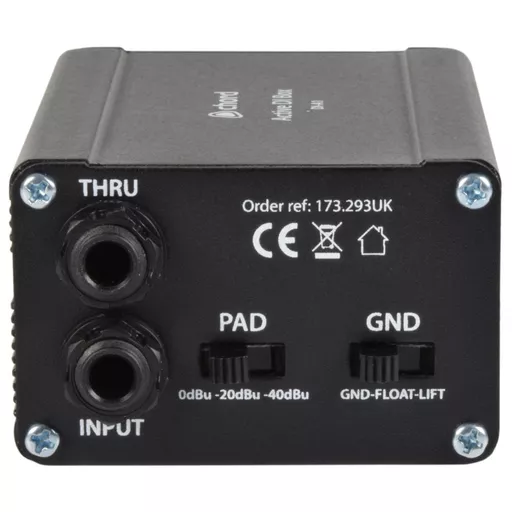

Input 6.3mm jack (unbalanced)

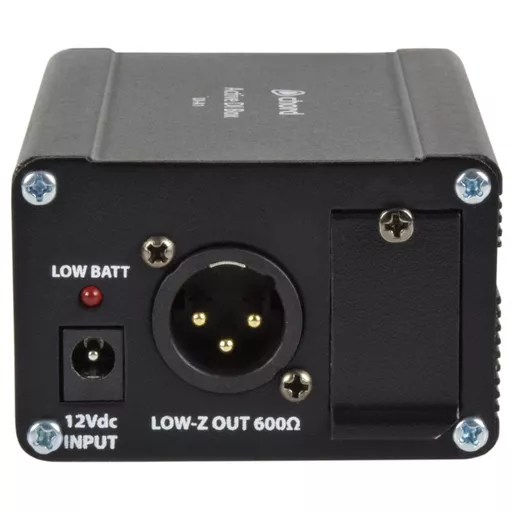

Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance> 100k Ohms
Output impedance 600 Ohms
Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

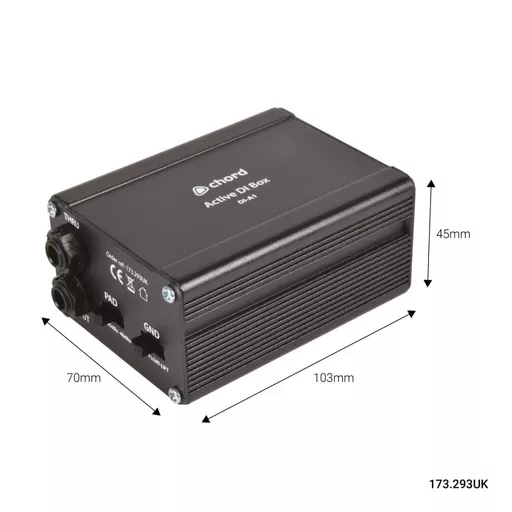

Dimensions 103 x 70 x 45mm
Weight 243g
