Chord DI-P1 Passive Direct Injection Box

DI-P1



Product Code: DI-P1

Brand: Chord

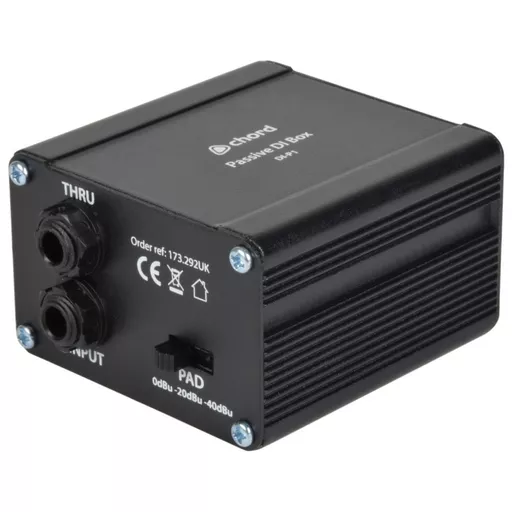

Chord DI-P1 Passive Direct Injection Box

Brand: Chord

Chord DI-P1 Passive Direct Injection Box

Product Code: DI-P1

£19.00

1 in stock

1 to 2 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching

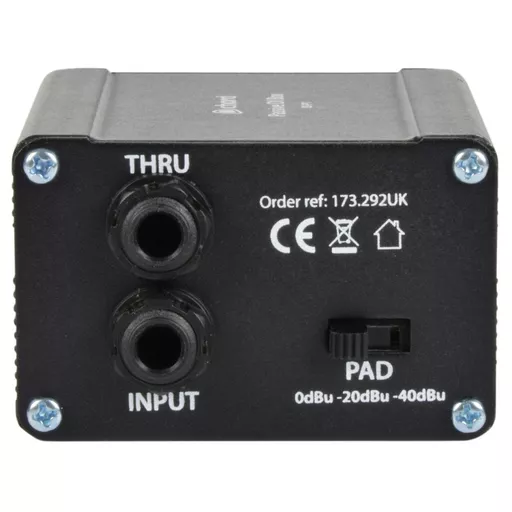

  • Input 6.3mm jack (unbalanced)

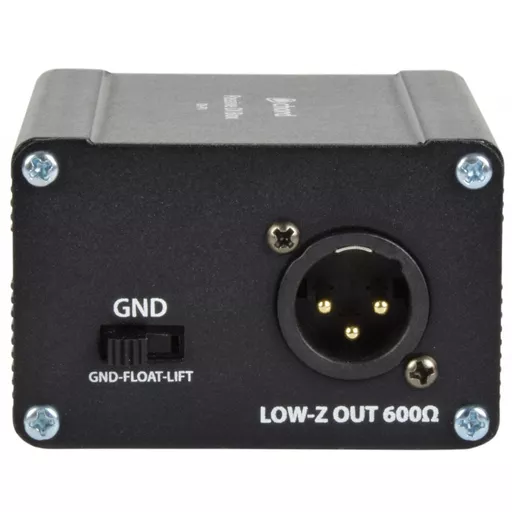

  • OutputsXLRM (balanced), 6.3mm jack through (unbalanced)
  • Input impedance >100k Ohms
  • Output impedance 600 Ohms
  • Controls 0/-20/-40dBu pad & Ground-Float-Lift switch

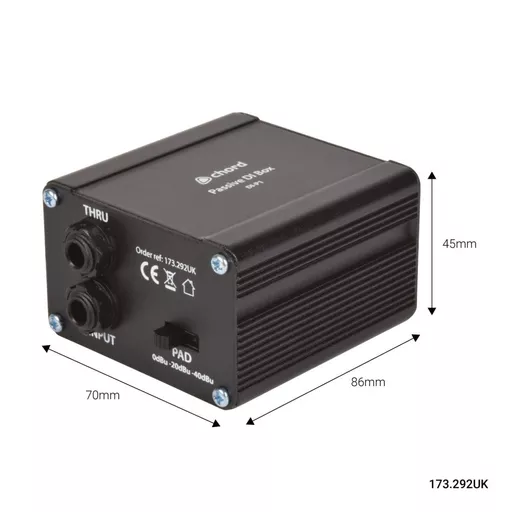

  • Dimensions 86 x 70 x 45mm
  • Weight 234g
