Chauvet GigBAR 3 ILS Lighting System

GIGBAR3ILS



Product Code: GIGBAR3ILS

Brand: Chauvet



Chauvet GigBAR 3 ILS Lighting System

Brand: Chauvet

Chauvet GigBAR 3 ILS Lighting System

Product Code: GIGBAR3ILS

£389.00

5 in stock

Next Working Day Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




The Chauvet DJ GigBAR 3 ILS is an all in one lighting system built for fast professional setups, combining multiple effects on a single bar so you can walk into a venue and be ready quickly. It is ideal for mobile DJs, parties, weddings and event work where you want a full light show without carrying separate fixtures, stands and extra cabling.

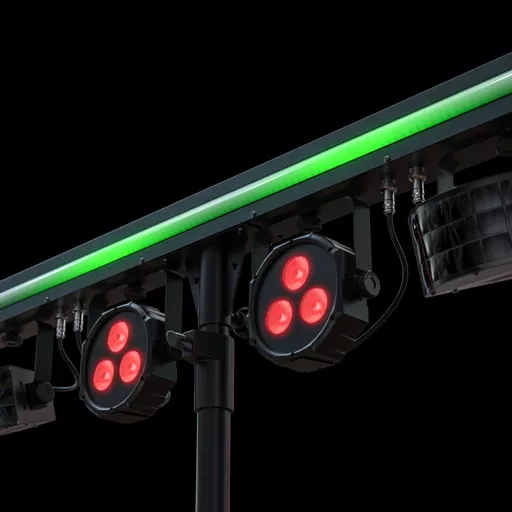

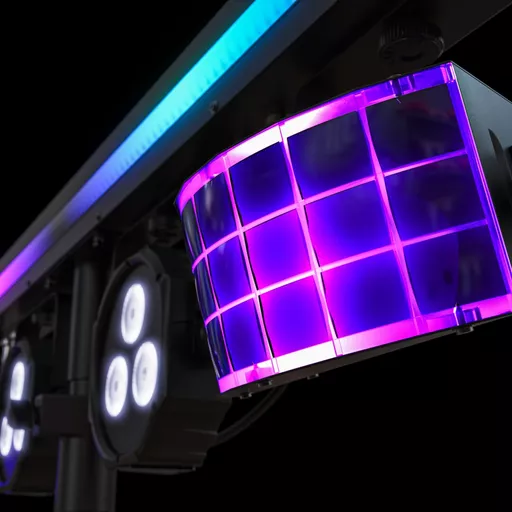

GigBAR 3 ILS combines a pair of LED derbies for multi coloured chasing beams, LED pars for wide colour wash coverage, and an LED strip for eye catching pixel style looks and movement. This mix lets you fill the room with dancefloor energy while also lighting walls, backdrops and performance areas with clean colour.

For control, the system is designed to suit both simple and advanced rigs. ILS compatibility makes it easy to sync with other ILS fixtures, while the built in D Fi wireless capability helps you run DMX or ILS signals without extra wireless hardware. You can also use DMX from a controller when you want detailed programming, or keep things simple with the included wireless footswitch and RF remote for quick show control during a set.

Practical features make it strong for real world gigging. The kit includes a tripod and carry bags for easier transport, and the reversible tripod bracket allows inverted mounting when you need the bar higher or want a cleaner setup. There is also the option to mount additional fixtures to the top of the GigBAR 3 ILS, making it easy to expand your rig as your shows grow.

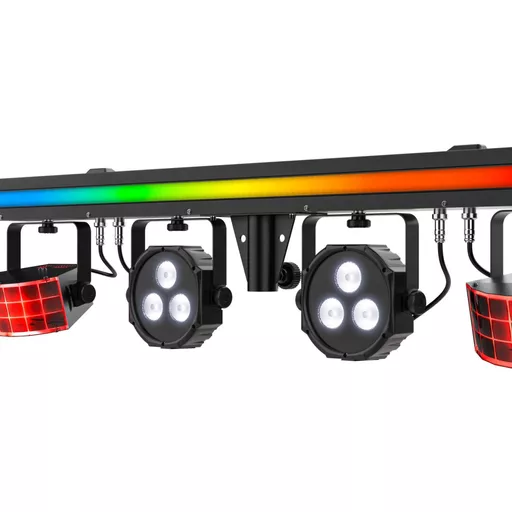

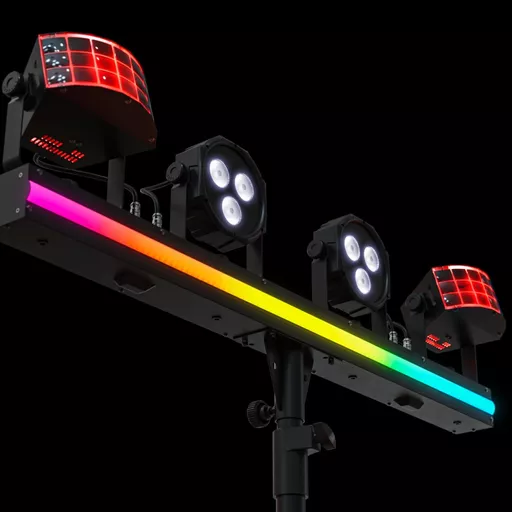

  • 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar

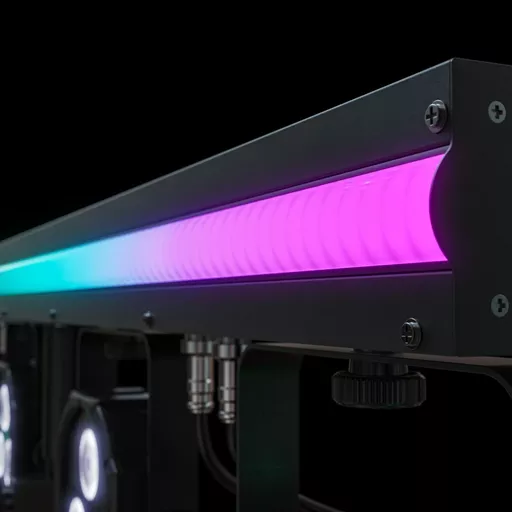

  • Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
  • ILS compatibility for use in the ILS ecosystem

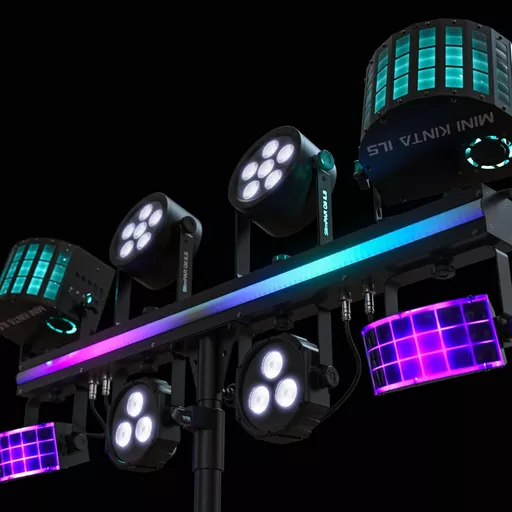

  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
  • Reversible tripod bracket allows for upside down mounting
  • Easy navigation and access all functions directly from the full-color LCD display

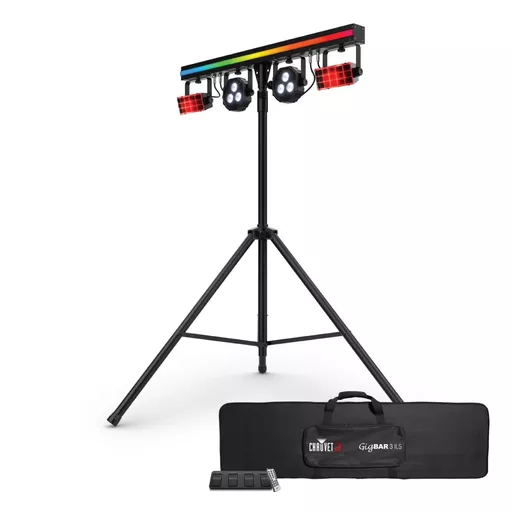

  • Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
  • Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
  • Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
  • Save time running cables and extension cords by power linking multiple units

Specifications

  • DMX Channels: 2, 21, or 132
  • DMX Connectors: 3-pin XLR
  • Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
  • Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
  • Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Stand Height: 1.5 to 2.4 m
  • Tripod leg width: 1.2 m
  • Fits Tripod Size: 37.4 mm
  • Beam Angle (pars): 13°
  • Field Angle (pars): 24°
  • Coverage Angle (Derby): 114°
  • Coverage angle: ( LED Strip ) 174°
  • Operating Frequency (D-Fi): 2.412 to 2.484 GHz
  • Cable Length: 2.844 m
  • Foot Switch Operating Frequency: 433 MHz
  • Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
  • Footswitch battery: 9V, 300mA
  • Illuminance (pars): 1,205 lux @ 2 m (per head)
  • Power Linking: 11 units 120 V; 18 units 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight: 6 kg
  • Size: 1047 x 94.5 x 272 mm
  • Optional Controllers: ILS Command, RF Remote
