Complete Event Lighting in a Clean White Finish

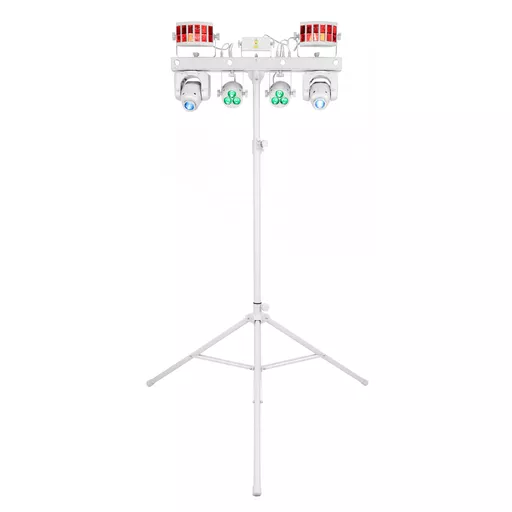

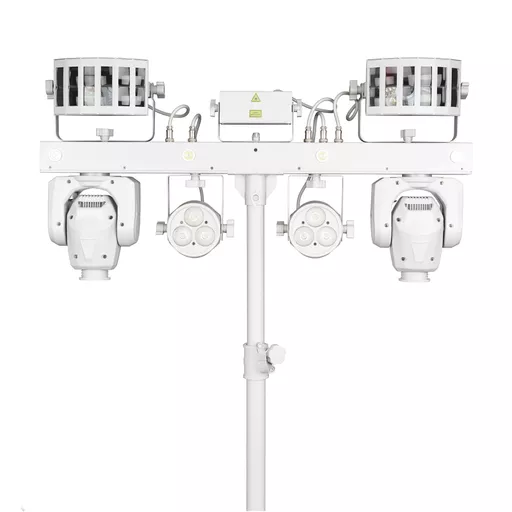

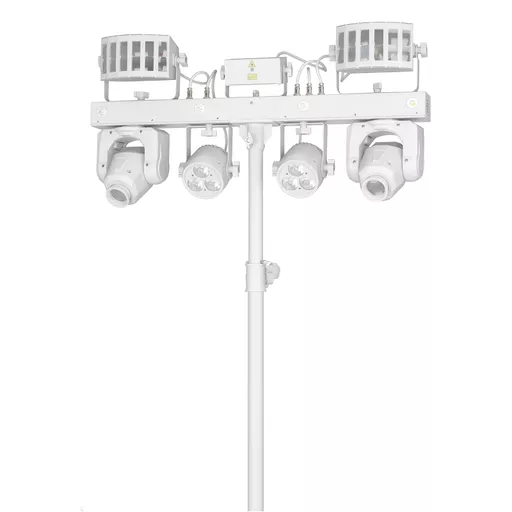

The Equinox Gigabar FX1 5-in-1 LED Lighting Bar System brings a varied selection of lighting effects together in one convenient package. Its crisp white housing complements wedding décor, marquees, hospitality venues, white DJ booths and presentation spaces where conventional black lighting equipment may appear too prominent.

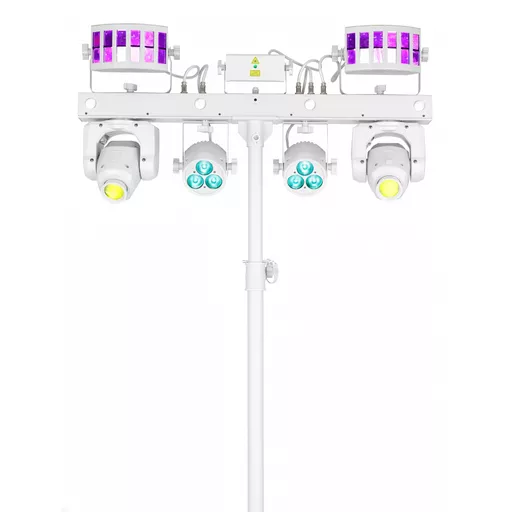

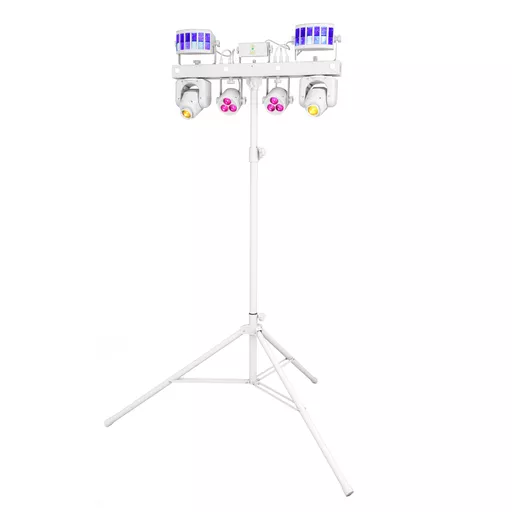

Par, moving head, derby, strobe and red-and-green laser effects can be combined to produce everything from rich colour washes and moving gobo projections to narrow multi-beam patterns and energetic strobe sequences. The integrated design also reduces the number of separate fixtures, stands and cables required to create an engaging light show.

Five Versatile Lighting Effects
The moving-head section uses a powerful 30W white LED and includes seven static gobos plus open, seven colours plus open and manual focus. Its wide pan and tilt range creates sweeping movement across dancefloors, stages and event spaces.

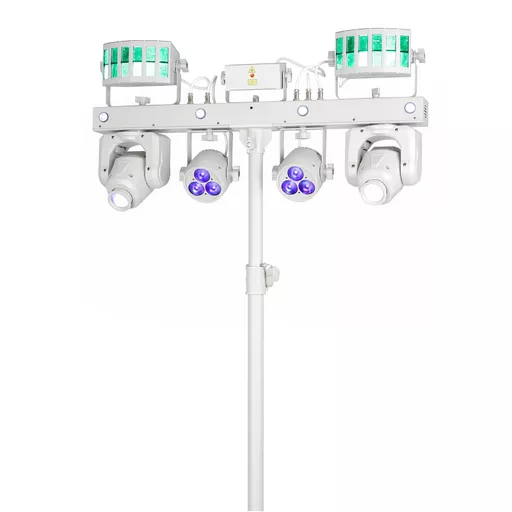

RGBW quad-colour COB LEDs provide vivid output from the par and derby sections. The par effect produces colourful illumination with a 20° beam angle, while the derby creates multiple narrow 3° beams for a lively room-filling effect. Four dedicated white LEDs add bright strobe bursts, while the red and green laser generates crisp aerial patterns when used with suitable atmospheric effects.

Flexible Control for DJs and Entertainers
Auto and sound-active modes allow the Gigabar FX1 to produce synchronised shows without requiring a separate lighting controller. The included IR remote is useful for quick adjustments, while the foot controller provides convenient hands-free operation for DJs, musicians and solo entertainers.

For programmed productions, the system offers selectable 3, 19 or 34-channel DMX modes. Users can choose between straightforward operation and more detailed control over the individual effects. Primary/secondary operation is also available when coordinating compatible units.

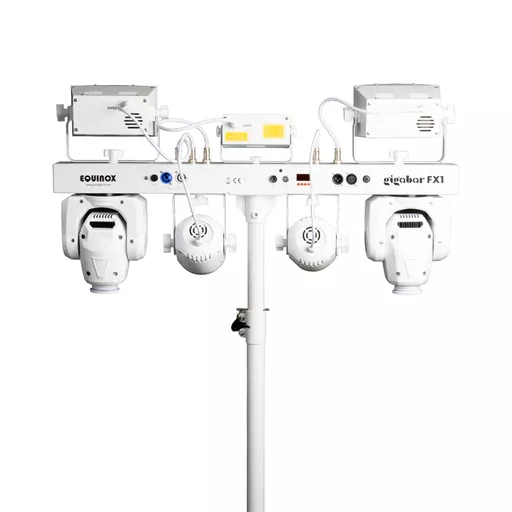

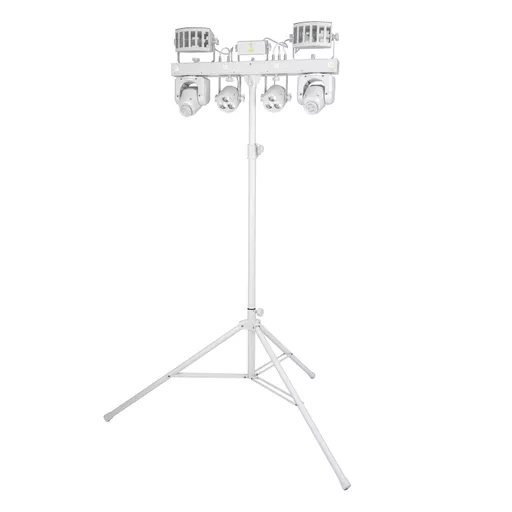

A height-adjustable stand positions the effects above guests and equipment for improved room coverage. PowerTwist input and output connections provide secure power connectivity, while the integrated display and four-button menu make configuration straightforward.

Separate carry bags protect the bar and stand during storage and transport, making the white Equinox Gigabar FX1 an excellent all-in-one option for mobile DJs, wedding entertainers, bands, event companies and venues.

Key Features

• Distinctive white housing for weddings, marquees and light-coloured event décor
• Five integrated effects: par, moving head, derby, strobe and laser
• RGBW quad-colour COB LEDs for bright colour mixing
• 30W white LED moving-head effect
• Seven static gobos plus open
• Seven colours plus open
• Manual moving-head focus
• Red and green laser effect
• Four dedicated white strobe LEDs
• Built-in automatic and sound-activated shows
• Selectable 3, 19 or 34-channel DMX operation
• Primary/secondary operating mode
• 0–100% dimming and variable strobe
• Four-button menu with LED display
• PowerTwist input and output
• 3-pin XLR DMX input and output
• Input for the included foot controller
• Supplied with IR remote
• Height-adjustable stand included
• Carry bags included
• Fan cooled

Par Effect

• Light source: 3 x 8W quad-colour COB LEDs
• Colours: RGBW
• Beam angle: 20°

Moving Head Effect

• Light source: 1 x 30W white LED
• Colour temperature: 7000K
• Beam angle: 11°
• Gobo wheel: Seven static gobos plus open
• Colour wheel: Seven colours plus open
• Manual focus
• Pan: 540°
• Tilt: 235°

Derby Effect

• Light source: 3 x 8W quad-colour COB LEDs
• Colours: RGBW
• Beam angle: 3° per beam

Strobe Effect

• Light source: 4 x 1W white LEDs
• Colour temperature: 8500K
• Beam angle: 50°

Laser Effect

• Red laser diode: 638nm/100mW
• Green laser diode: 515nm/30mW

General Specifications

• DMX channels: 3, 19 or 34 selectable
• Operating modes: Auto, sound active and primary/secondary
• Dimming: 0–100%
• Power consumption: 170W
• Power supply: 100–240V AC, 50/60Hz
• Dimensions without stand: 395 x 840 x 171mm
• Adjustable stand height: 1820–2640mm
• Weight: 16.5kg

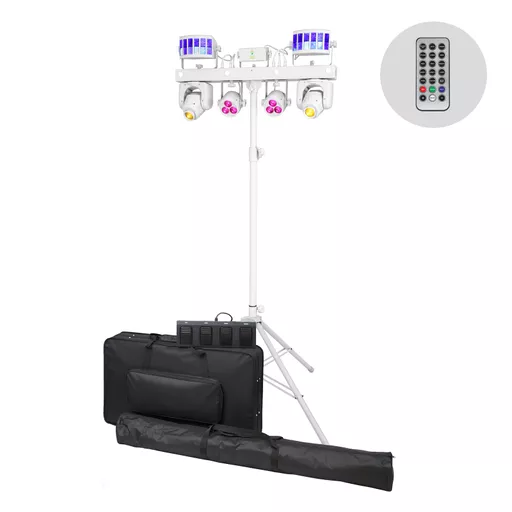

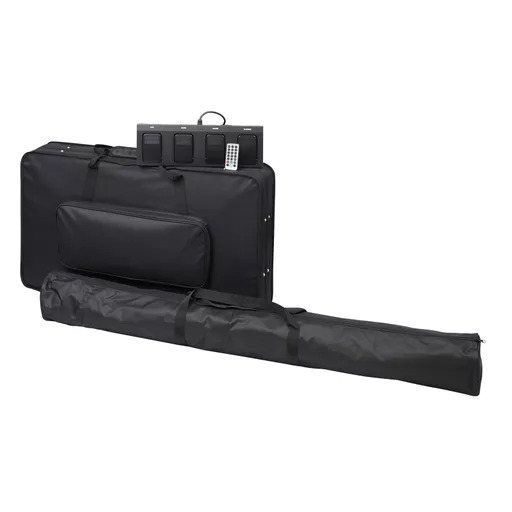

In the Box

• Equinox Gigabar FX1 lighting bar with white housing

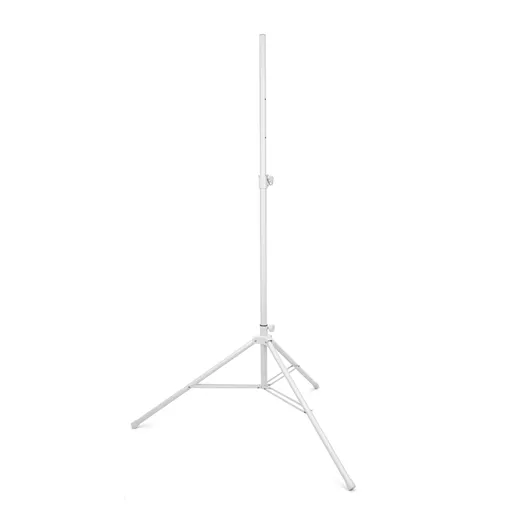

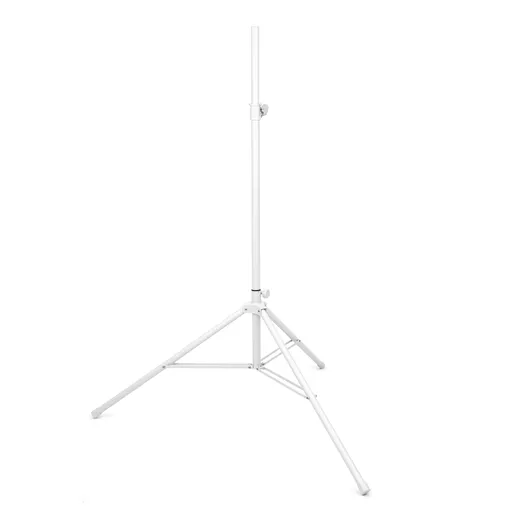

• Height-adjustable stand

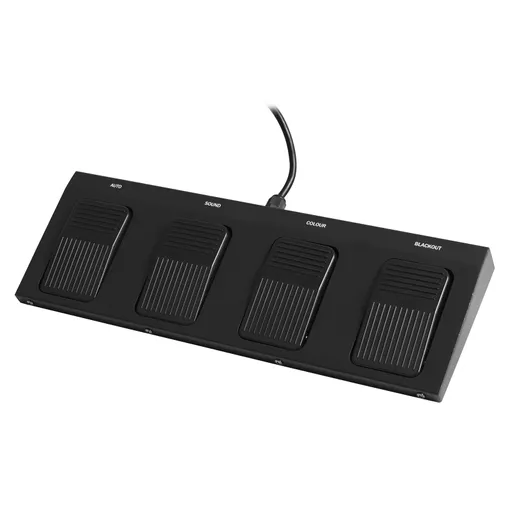

• Foot controller

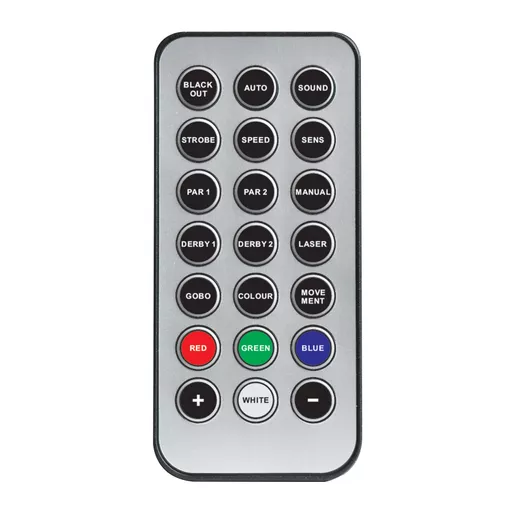

• IR remote control

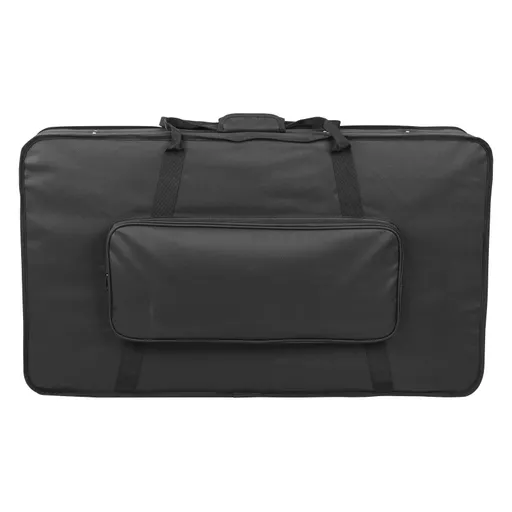

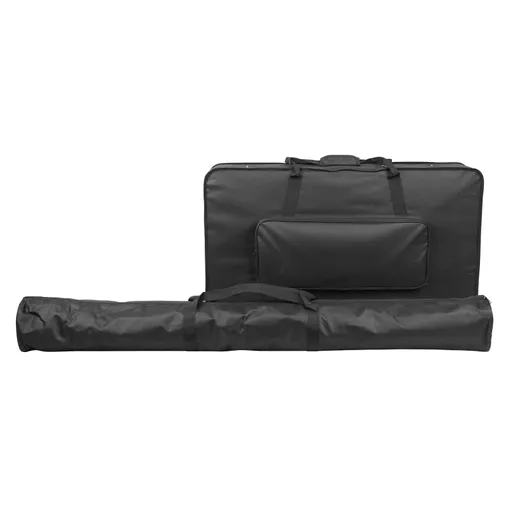

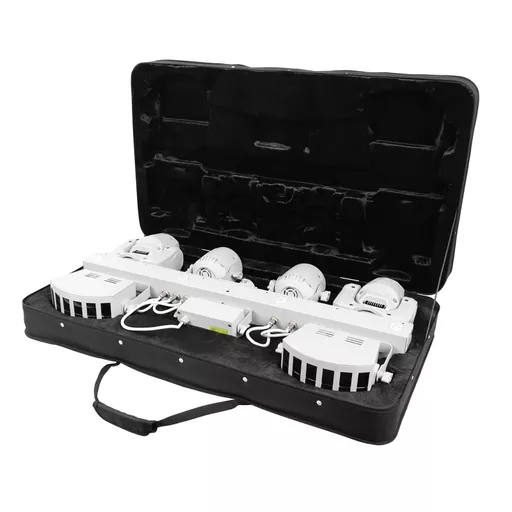

• Carry bag for the lighting bar

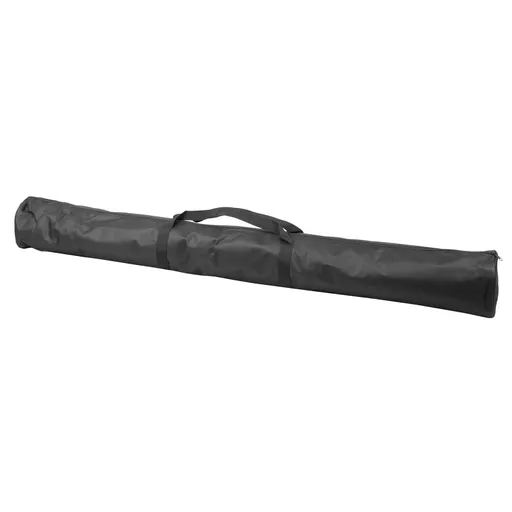

• Carry bag for the stand

Mini FAQ

What makes this version of the Equinox Gigabar FX1 different?
This model has a white housing, allowing it to complement wedding décor, marquees, white DJ booths and light-coloured event installations. It retains the established FX1 effects and control options.

Can the Gigabar FX1 operate without DMX?
Yes. Built-in automatic and sound-active programs allow the system to produce complete light shows without a DMX controller. An IR remote and foot controller are also included.

Which effects are built into the Gigabar FX1?
The system combines par, moving head, derby, strobe and red-and-green laser effects within one lighting bar.

Is a stand included?
Yes. A height-adjustable stand is supplied along with carry bags for protecting the lighting bar and stand during transport.

Is the white Gigabar FX1 suitable for weddings?
Yes. Its white housing is particularly well suited to weddings, marquees and elegant event spaces, while its varied effects can provide ambient colour, dancefloor movement and high-energy lighting later in the event.
