Equinox Truss Booth XL - Matt Black

TRUSSBOOTHXL-MB



Product Code: TRUSSBOOTHXL-MB

Brand: Equinox



Equinox Truss Booth XL - Matt Black

Brand: Equinox

Equinox Truss Booth XL - Matt Black

Product Code: TRUSSBOOTHXL-MB

£339.00

49 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

Free Standard Delivery over £50

Spend another £50 to qualify

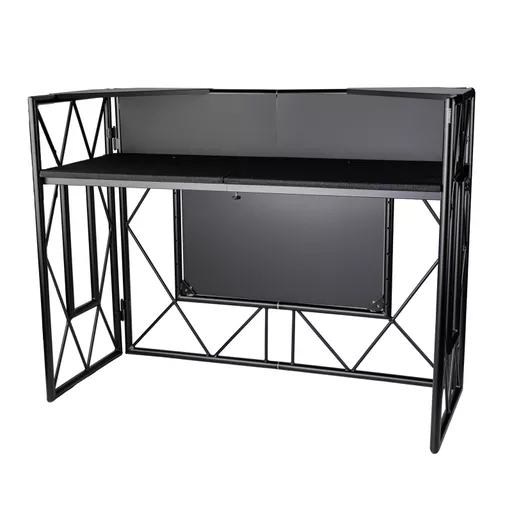

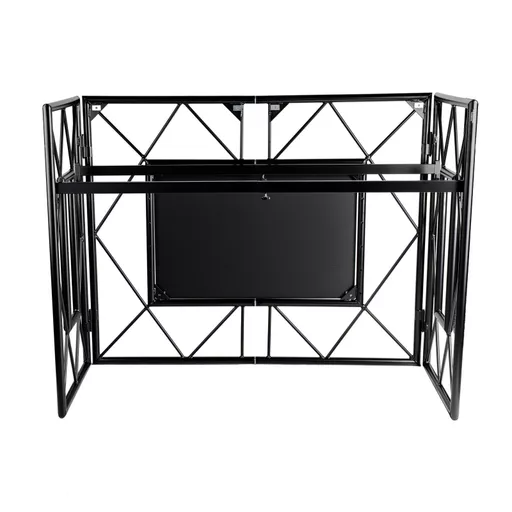

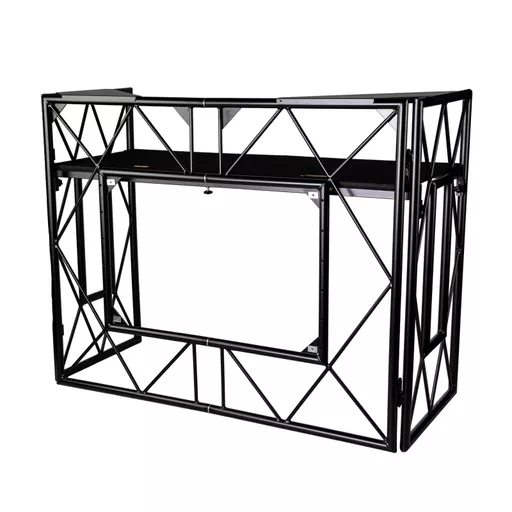

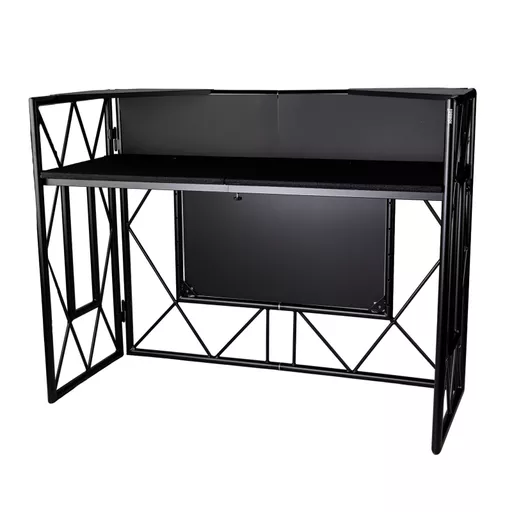

The Equinox Truss Booth XL provides a spacious, professional workstation for mobile DJs, weddings and corporate events. Its 142cm wide by 60cm deep working area offers room to arrange controllers, mixers and playback equipment, with a main shelf supporting up to 50kg evenly distributed.

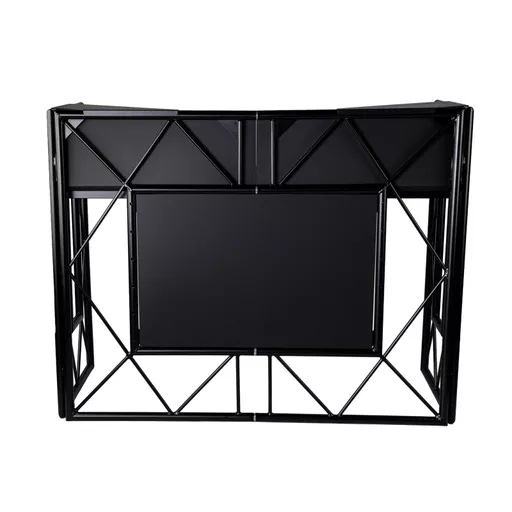

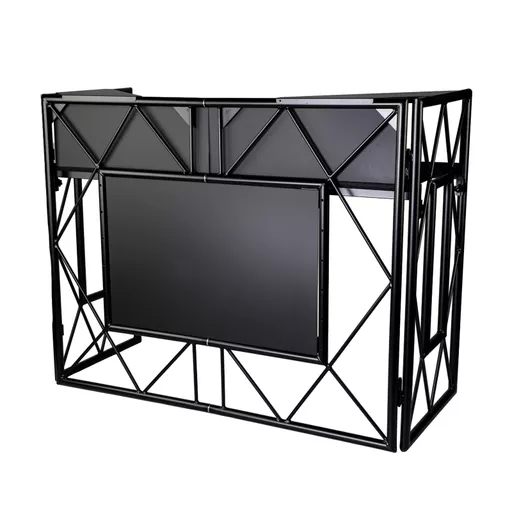

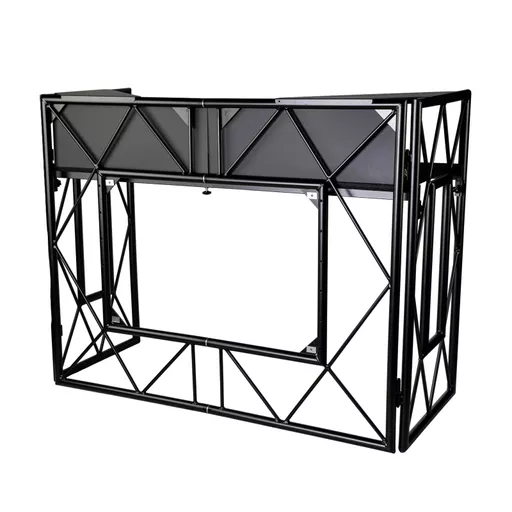

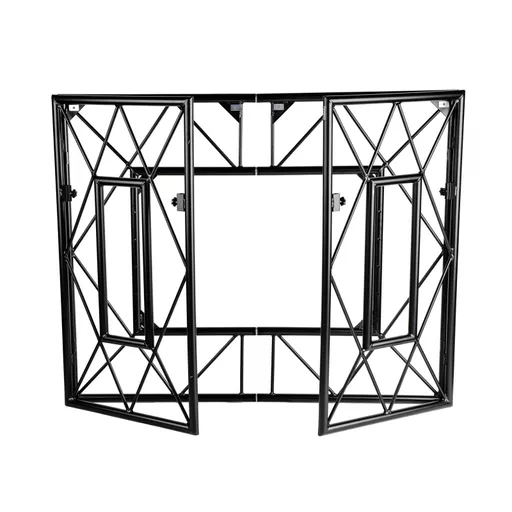

The aluminium frame combines a lightweight construction with a matt black powder-coated finish. Black acrylic concealment panels and a matching front board replace the white Foamex panels used on the earlier design, creating a coordinated frontage that helps keep equipment and connections out of sight.

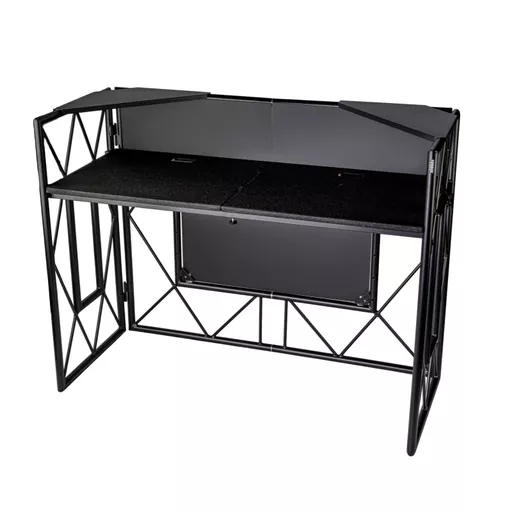

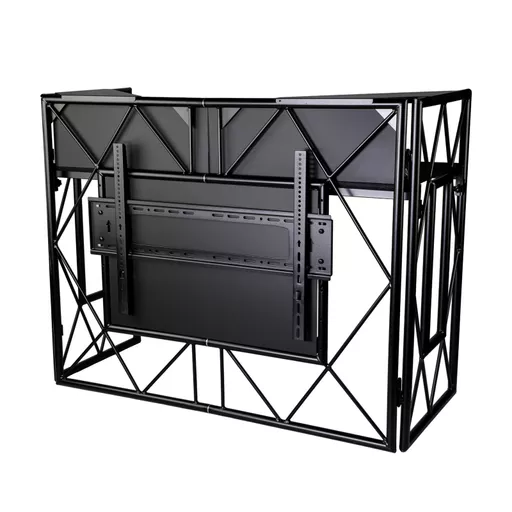

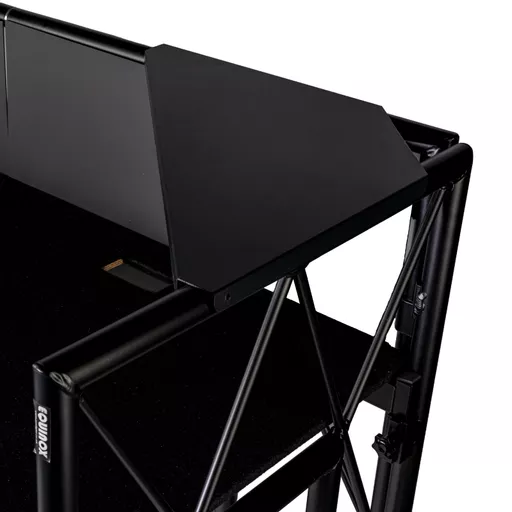

Two black corner shelves are included for positioning small moving heads. The supplied TV bracket adds another presentation option, accommodating compatible screens up to 65 inches for logos, branding, video or event visuals.

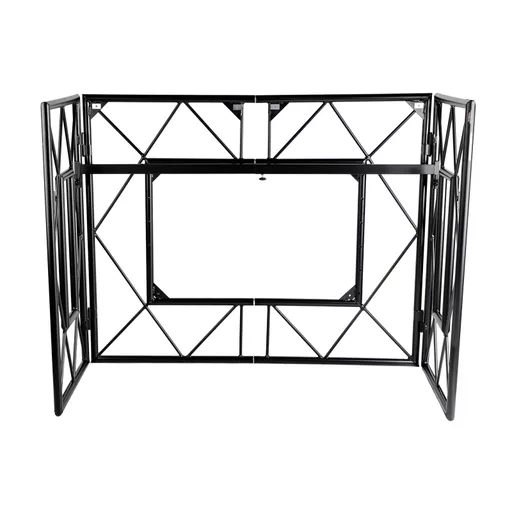

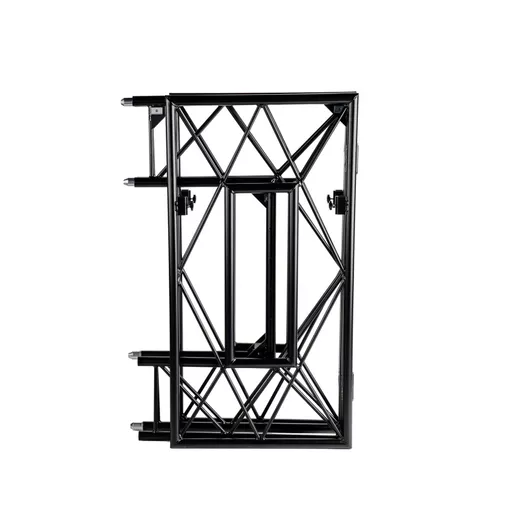

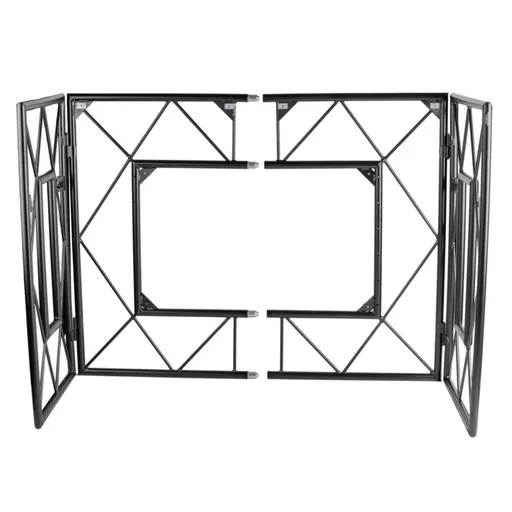

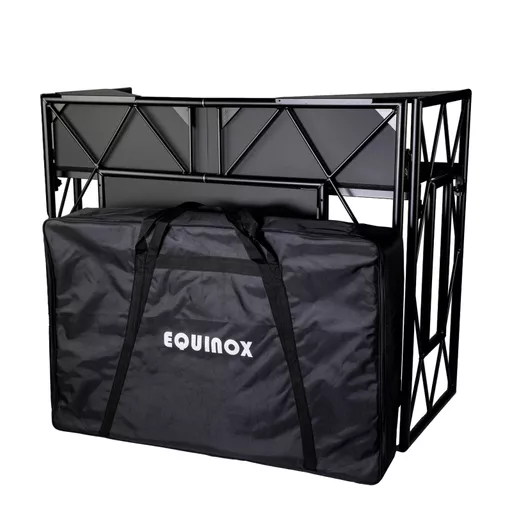

For DJs working across different venues, the collapsible frame and included padded carry bag make the booth practical to transport and store between bookings.

Features & Specifications

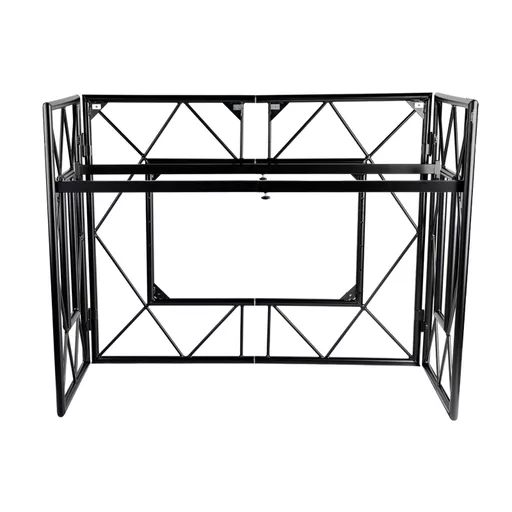

  • Collapsible aluminium DJ booth with matt black powder-coated finish
  • Enlarged workspace: 142cm wide x 60cm deep
  • Black acrylic concealment panels and front board
  • Main equipment shelf included
  • Maximum main shelf load: 50kg evenly distributed
  • Main shelf height: 890mm

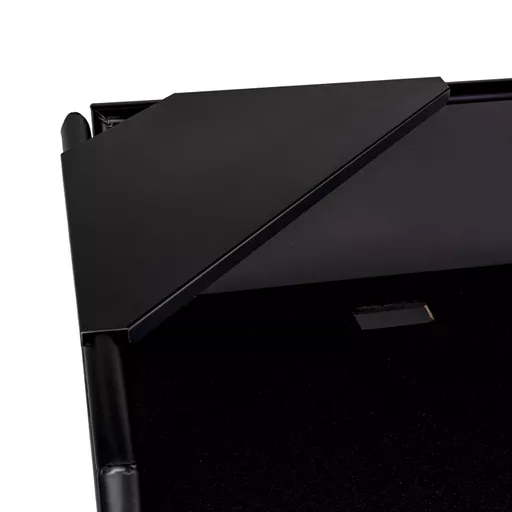

  • Two black corner shelves included

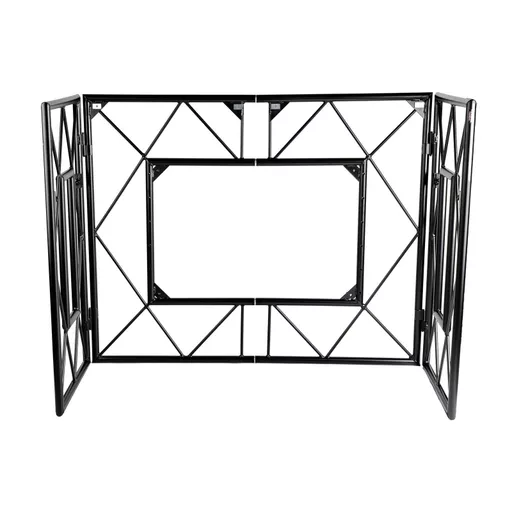

  • TV mounting bracket included for compatible screens up to 65 inches
  • Padded carry bag included
  • Frame tube diameter: 32mm
  • Folded dimensions (H x W x D): 1150 x 140 x 740mm
  • Set-up dimensions (H x W x D): 1150 x 1480 x 635mm
  • Internal dimensions (H x W x D): 1150 x 1420 x 600mm
  • Front board dimensions: 560 x 840 x 2mm
  • Concealment panel dimensions: 246 x 674 x 2mm each
  • Corner shelf dimensions: 25 x 670 x 260mm each
  • Frame weight: 11.9kg
  • Main shelf weight: 5.5kg
  • System weight excluding corner shelves and TV bracket: 22.5kg
  • System weight including corner shelves and TV bracket: 27.4kg

FAQs

Q: How much equipment can the main shelf support?
A: The main shelf supports up to 50kg when the load is evenly distributed across its surface.

Q: Can a television be mounted on the front?
A: Yes. The included bracket accommodates compatible screens up to 65 inches. Check your screen’s mounting compatibility and weight against the bracket’s requirements before installation.

Q: Are the corner shelves included?
A: Yes. Two black corner shelves are supplied for positioning small moving heads.

Q: Does the booth fold down for transport?
A: Yes. The frame collapses for storage and transport, and a padded carry bag is included.
