elumen8 DT512 RDM DMX Tester

ELUM698



Product Code: ELUM698

Brand: elumen8



elumen8 DT512 RDM DMX Tester

Brand: elumen8

elumen8 DT512 RDM DMX Tester

Product Code: ELUM698

£199.00

46 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

Free Standard Delivery over £50

Spend another £50 to qualify




elumen8 DT512 RDM DMX Tester

The elumen8 DT512 is a compact DMX and RDM tester designed for lighting technicians, service workshops and event-production professionals.

It provides DMX and RDM testing across a single universe and can operate as an RDM controller. Five-pin DMX input and output connections allow the tester to be integrated directly into compatible lighting systems for signal testing and fault diagnosis.

An integrated three-pin XLR cable tester, MIDI interface, LC display and clearly arranged menu make the DT512 a versatile tool for maintaining professional lighting equipment.

DMX and RDM Testing

The DT512 provides dedicated DMX and RDM testing for one DMX universe. It can also function as an RDM controller, allowing compatible RDM devices to be accessed during system installation, maintenance and troubleshooting.

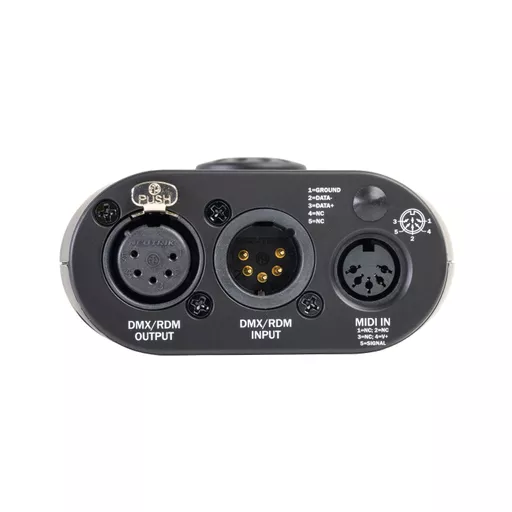

Five-pin DMX input and output connectors support direct connection to professional lighting equipment and DMX control networks.

Integrated XLR Cable Tester

A built-in cable tester allows three-pin XLR cables to be checked without requiring a separate testing device.

This is useful when diagnosing signal faults caused by damaged or incorrectly wired DMX and audio cables.

Clear and Portable Operation

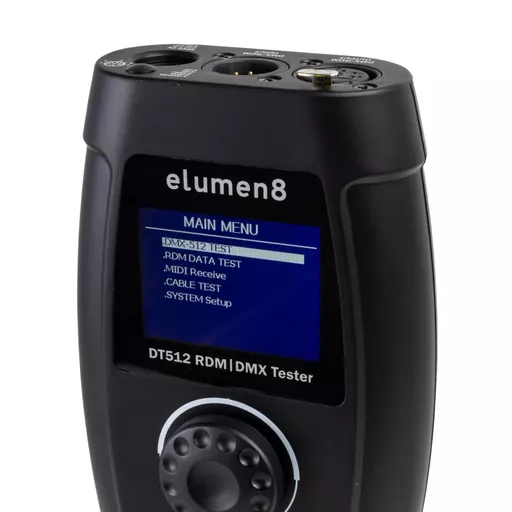

The LC display and logically arranged menu provide clear access to the tester’s functions. A MIDI interface offers additional connectivity for compatible equipment.

Its lightweight PVC housing keeps the DT512 portable and easy to handle when working at venues, in workshops or on event-production sites.

The unit has a 9V DC, 500mA power input and requires four AAA rechargeable batteries for portable operation.

Key Features

  • Compact DMX and RDM testing tool
  • Tests DMX and RDM across one universe
  • Operates as an RDM controller
  • Suitable for lighting technicians and service workshops
  • Five-pin DMX input
  • Five-pin DMX output
  • Integrated three-pin XLR cable tester
  • MIDI interface
  • LC display
  • Clearly arranged operating menu
  • Lightweight PVC housing
  • Requires four AAA rechargeable batteries
  • Power input: 9V DC, 500mA
  • Dimensions: 170 x 100 x 40mm
  • Weight: 0.28kg

Frequently Asked Questions

Q: What can the elumen8 DT512 test?

A: The DT512 can test DMX and RDM signals across a single DMX universe. It can also operate as an RDM controller.

Q: Which DMX connections does the DT512 have?

A: It has five-pin DMX input and output connectors.

Q: Can the DT512 test XLR cables?

A: Yes. It includes an integrated cable tester for three-pin XLR cables.

Q: Does the DT512 have a display?

A: Yes. An LC display and clearly arranged menu provide access to its testing functions.

Q: How is the DT512 powered?

A: It has a 9V DC, 500mA power input and requires four AAA rechargeable batteries for portable operation.

Q: How large is the DT512?

A: It measures 170 x 100 x 40mm and weighs 0.28kg.
