Global Truss F34 Standard Spindle Foot 4into1 + Screwjack

GLF34SPINDLE



Product Code: GLF34SPINDLE



Global Truss F34 Standard Spindle Foot 4into1 + Screwjack

Global Truss F34 Standard Spindle Foot 4into1 + Screwjack

Product Code: GLF34SPINDLE

£191.00

8 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

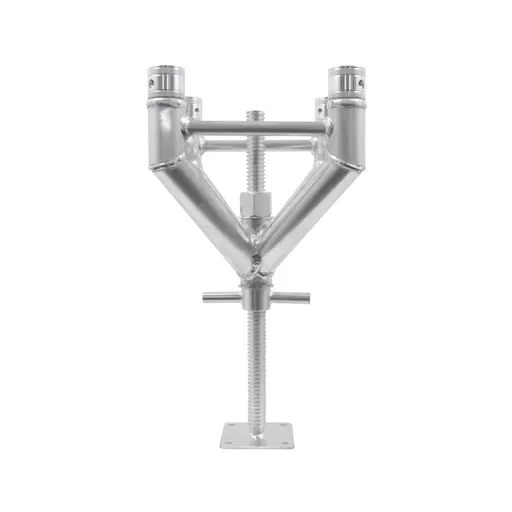

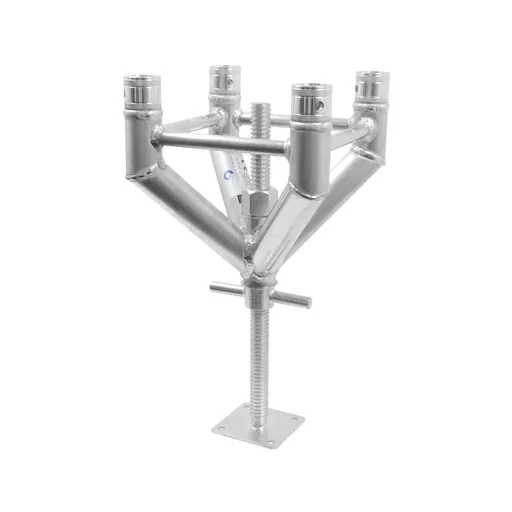

This height adjustable (35-70cm) Standard F34 threaded spindle base is used as an alternative to a base plate in uneven floor situations, allowing for the variable height adjustment of truss verticals with the easy-to-use screw jack. The spindle base is commonly used for constructions including stage roof systems and exhibition stands where the base beneath the construction is not level.

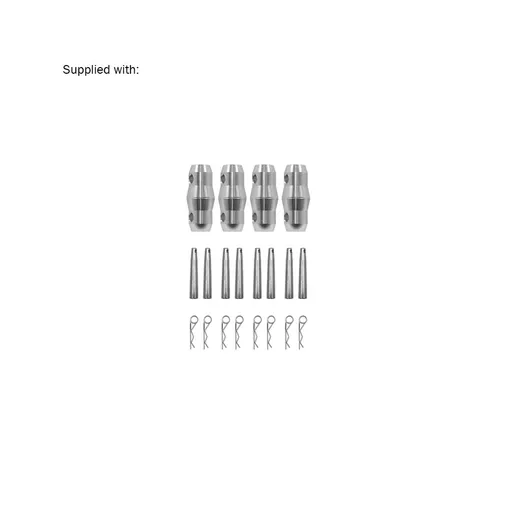

  • Supplied with 4 conical connectors, 8 bullet pins and 8 R clips
  • 2mm wall thickness aluminium
  • 1000kg static load capacity (indoor, zero side load)

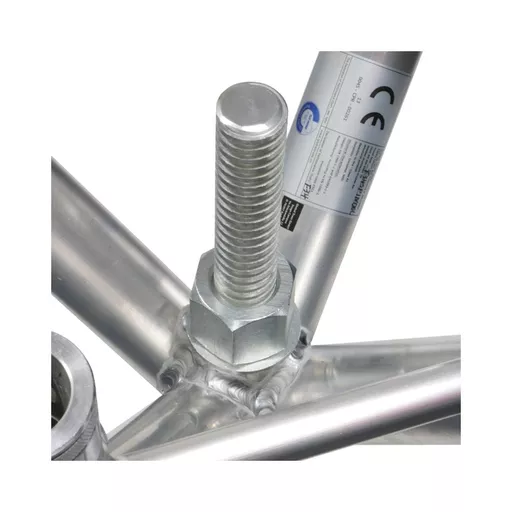

  • Supplied with 500mm screw jack
  • Truss diameter: 290mm
  • Tube diameter: 50mm
  • Dimensions: 290x290mm
  • 350mm high (without the screw jack)
  • Weight: 5.6kg
