QTX WYSP-500W Wall Hung Haze Machine 500w

WYSP-500W



Product Code: WYSP-500W

Brand: QTX



QTX WYSP-500W Wall Hung Haze Machine 500w

Brand: QTX

QTX WYSP-500W Wall Hung Haze Machine 500w

Product Code: WYSP-500W

£189.00

1 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

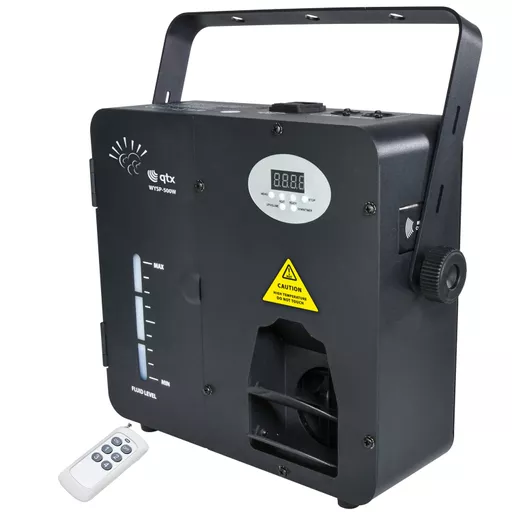

QTX WYSP-500W Wall-Mounted Haze Machine

The QTX WYSP-500W is a compact 500W wall-hung haze machine designed for venues, theatres, clubs and permanent lighting installations.

It produces approximately 7,000 cubic feet of fine haze per minute, helping make stage and effects lighting beams more visible. Digital output adjustment allows the haze level to be controlled for different room sizes and applications.

Manual, wireless remote and DMX control options make the WYSP-500W suitable for both independent operation and integration into a larger lighting system.

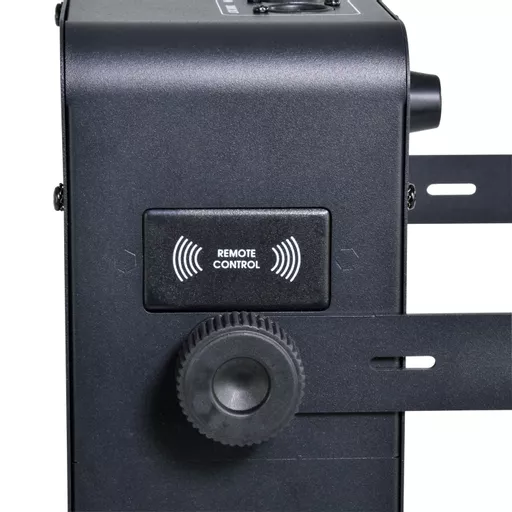

Wall-Mounted Installation

Multiple fixing points and an adjustable hanging bracket allow the machine to be securely positioned on a suitable wall or supporting structure.

Wall mounting keeps the machine away from the performance area and allows haze to be distributed from an elevated position. The supplied bracket can be adjusted to direct the output as required.

500W Haze Output

The 500W heating element reaches operating temperature in approximately one minute and produces around 7,000 cubic feet of haze per minute.

A 1.2-litre fluid tank supports extended operation, while the digitally controlled output rate allows the volume of haze to be adjusted.

Manual, Wireless and DMX Control

The WYSP-500W can be controlled manually, with the supplied 433MHz wireless remote or through a DMX-512 lighting controller.

Two-channel DMX operation provides remote control over compatible functions. Three-pin DMX input and output connections allow the machine to be integrated into a DMX control chain.

Low-Fluid Protection

An integrated low-fluid protection switch prevents the unit from continuing to operate when the tank is empty. This protects the internal fluid system and heating components from damage caused by running without fluid.

Haze fluid is required for operation and is not included.

Key Features

  • Compact wall-mounted haze machine
  • Suitable for venues, theatres, clubs and permanent installations
  • 500W heating element
  • Approximate warm-up time: one minute
  • Approximate haze output: 7,000 cubic feet per minute
  • Digitally adjustable haze output
  • 1.2-litre fluid tank
  • Integrated low-fluid protection switch
  • Manual operating mode
  • Wireless remote-control mode
  • DMX-512 operating mode
  • Two DMX channels
  • Three-pin DMX input and output
  • 433MHz wireless remote control included
  • Multiple wall-mounting points
  • Adjustable hanging bracket
  • Mounting bracket and thumbscrews included
  • IEC mains power input
  • UK and EU 1.5m IEC power leads included
  • Power supply: 220 to 240V AC, 50/60Hz
  • Power consumption: 525W
  • F5A fuse
  • Dimensions with bracket: 290 x 280 x 120mm
  • Weight: 3.7kg

Frequently Asked Questions

Q: How much haze does the QTX WYSP-500W produce?
A: It produces approximately 7,000 cubic feet of haze per minute.

Q: How long does the machine take to warm up?
A: The approximate warm-up time is one minute.

Q: Can the haze output be adjusted?
A: Yes. The output rate is digitally controlled and can be adjusted for different applications.

Q: Can the WYSP-500W be controlled by DMX?
A: Yes. It uses two DMX channels and has three-pin DMX input and output connections.

Q: Is a wireless remote included?
A: Yes. A 433MHz wireless remote control is included.

Q: Does the machine have low-fluid protection?
A: Yes. The integrated protection switch prevents the machine from continuing to operate when the tank is empty.

Q: Is haze fluid included?
A: No. Suitable haze fluid is required and must be purchased separately.

Q: What is included with the WYSP-500W?
A: The package contains the haze machine, wireless remote control, mounting bracket, thumbscrews and 1.5m UK and EU IEC power leads.
