NU-X B-11 PRO Violin Wireless System

The NU-X B-11 PRO is a professional 2.4GHz wireless microphone system designed specifically for violin and viola.

It transmits audio at 24-bit/48kHz resolution with a frequency response of 20Hz to 20kHz. Three selectable transmission modes provide latency settings of 3.6ms, 6.1ms or 9.9ms, allowing performance to be adjusted for low latency or increased stability.

An operating range of up to 50 metres provides freedom of movement during live performances, rehearsals and other amplified applications.

Pro Series Anti-Interference Technology

The B-11 PRO combines intelligent frequency hopping, 1MHz narrowband transmission, Audio Zip/Unzip processing, six stability levels and a true-diversity dual-antenna design.

Automatic channel selection searches for a suitable operating channel, helping maintain a stable signal in environments containing multiple wireless devices.

Reverb Effects and Instrument EQ

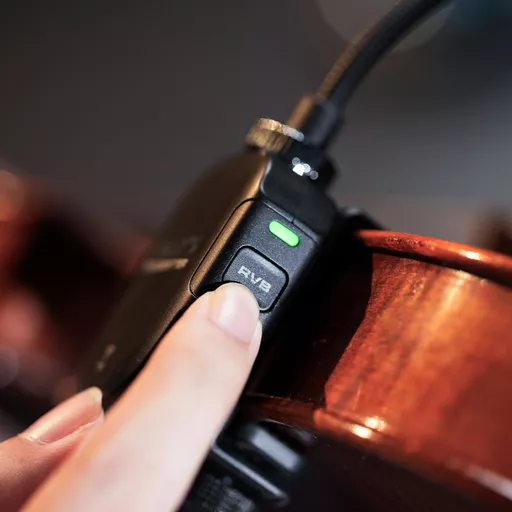

Built-in Room, Hall and Plate reverb effects can be activated from the transmitter. Detailed reverb parameters are controlled through the receiver’s user interface.

Ten EQ presets and two customisable EQ settings provide sound options for violin and viola. Preset styles include Classical, Modern and Warm, with custom settings available for creating individual EQ configurations.

Cardioid Condenser Microphone

The supplied condenser microphone has a cardioid polar pattern and is tuned for violin performance. Its shock-absorbing structure reduces vibration reaching the microphone while keeping the microphone assembly compact and lightweight.

Separate violin and viola transmitter mounts are included. The transmitter attaches magnetically to the fitted mount, allowing it to be quickly removed for charging or attached between performances.

Rechargeable Wireless Operation

Both the transmitter and receiver contain rechargeable lithium batteries. The transmitter provides up to 6.5 hours of operation, while the receiver provides up to 11 hours.

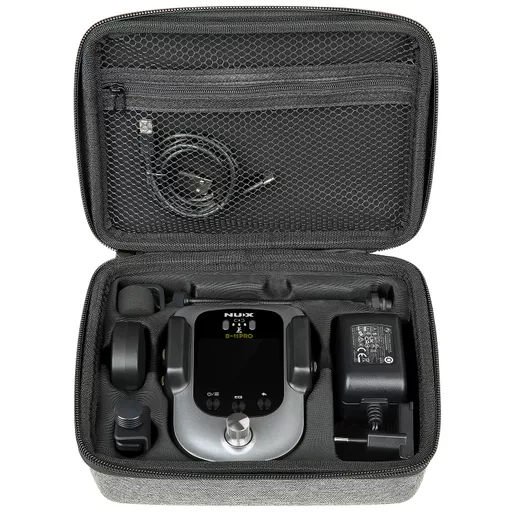

A protective carry case is included for storing and transporting the complete wireless system.

Key Features

• Professional wireless microphone system for violin and viola
• 2.4GHz ISM wireless operation
• Operating frequency: 2.4GHz to 2.4835GHz
• 24-bit/48kHz digital audio transmission
• Frequency response: 20Hz to 20kHz
• Operating range: up to 50 metres
• Low Latency mode: 3.6ms
• Default mode: 6.1ms
• Stable mode: 9.9ms
• Pro Series anti-interference technology
• Intelligent frequency hopping
• 1MHz narrowband transmission
• Audio Zip/Unzip processing
• Six stability levels
• True-diversity dual-antenna design
• Automatic channel selection
• Room, Hall and Plate reverb effects
• Ten EQ presets
• Two customisable EQ settings
• EQ settings designed for violin and viola
• Condenser instrument microphone
• Cardioid microphone polar pattern
• Microphone sensitivity: -46dB
• Shock-absorbing microphone structure
• Magnetic transmitter attachment
• Violin transmitter mount included
• Viola transmitter mount included
• Rechargeable lithium batteries
• Transmitter battery life: up to 6.5 hours
• Receiver battery life: up to 11 hours
• Transmitter battery: 3.7V, 450mAh
• Receiver battery: 3.7V, 3000mAh
• Transmitter power: less than 10mW E.I.R.P.
• B-11 PRO base unit included
• Transmitter and microphone included
• Protective carry case included
• Transmitter dimensions excluding microphone: 90 x 115 x 55mm (L x W x H)
• Transmitter weight excluding microphone: approximately 33g
• Receiver dimensions: 90 x 115 x 55mm (L x W x H)
• Receiver weight: approximately 468g

Frequently Asked Questions

Q: Can the NU-X B-11 PRO be used with a viola?
A: Yes. The system is designed for violin and viola, with separate transmitter mounts for both instruments included.

Q: What is the wireless operating range?
A: The B-11 PRO has an operating range of up to 50 metres.

Q: What is the system’s latency?
A: The selectable latency settings are 3.6ms in Low Latency mode, 6.1ms in Default mode and 9.9ms in Stable mode.

Q: Does the B-11 PRO include reverb and EQ?
A: Yes. It provides Room, Hall and Plate reverb, ten EQ presets and two customisable EQ settings.

Q: What type of microphone is included?
A: It includes a cardioid condenser instrument microphone with a shock-absorbing mounting structure.

Q: How long do the rechargeable batteries last?
A: The transmitter operates for up to 6.5 hours, while the receiver operates for up to 11 hours.

Q: What is included with the NU-X B-11 PRO?
A: The system includes the B-11 PRO base unit, transmitter, microphone, violin transmitter mount, viola transmitter mount and carry case.
