elumen8 Mira 1080 IP Batten

ELUM720



Product Code: ELUM720

Brand: elumen8



elumen8 Mira 1080 IP Batten

Brand: elumen8

elumen8 Mira 1080 IP Batten

Product Code: ELUM720

£1130.00

95 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

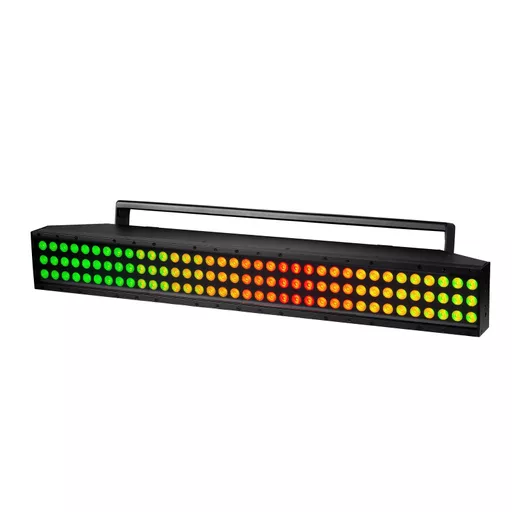

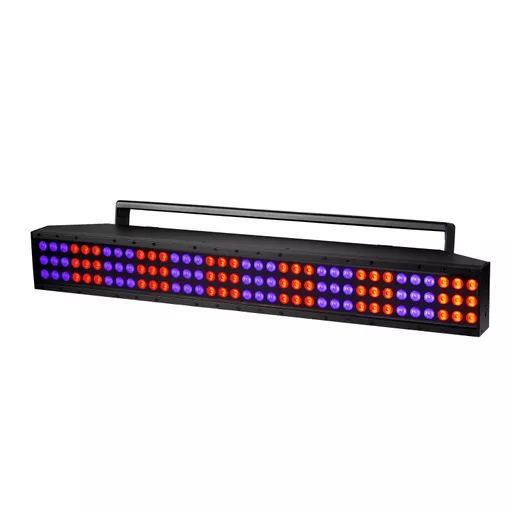

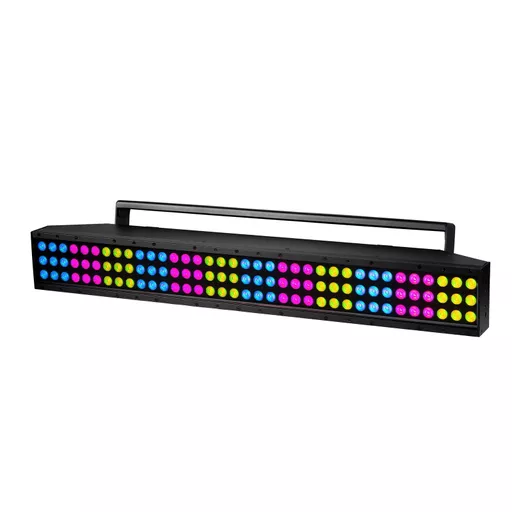

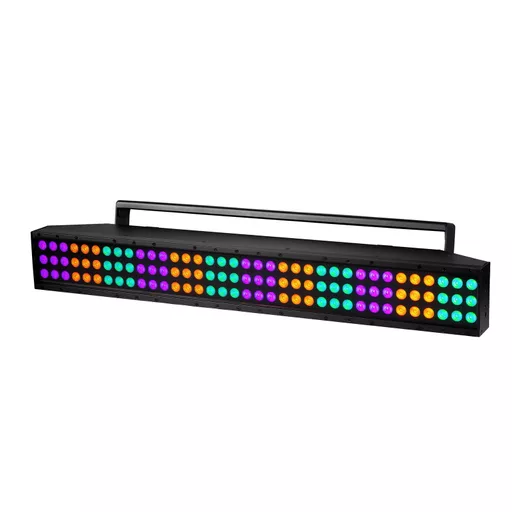

The Elumen8 Mira 1080 IP Batten is a powerful, IP65-rated pixel batten fixture engineered for large-scale outdoor and indoor lighting applications. Featuring 108 x 10W RGBW quad-colour LEDs and a wide 36° beam angle, it produces bold, even washes with 12-zone pixel mapping control. This high-output unit supports DMX, Art-Net, and sACN protocols with selectable refresh rates up to 24kHz for flicker-free camera work. The Mira 1080 includes an integral Art-Net to DMX bridge for downstream control, a heavy-duty adjustable rigging bracket, and quick-release omega clamps. Units can be seamlessly aligned side-by-side to create uninterrupted lighting bars, making it the ideal fixture for stages, arenas, and architectural applications.

  • 2 year warranty
  • 108 x 10W quad-colour LEDs (RGBW)
  • Beam angle: 36°
  • 29,559 Lux @ 2m (full on)
  • Refresh rate: 800Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz or 24kHz selectable
  • 12-zone pixel mapping
  • Control protocols: DMX, Art-Net and sACN
  • DMX channels: 4/7/9/20/51 or 55 selectable
  • Integral Art-Net to DMX for control of DMX fixtures downstream on the same universe
  • Static colour, colour temperature and manual modes
  • Built-in colour macros and programs
  • Colour temperature presets
  • 0–100% dimming
  • 4 dimming curves: Linear, square law, inverse square law and S-curve
  • Variable strobe
  • RDM (Remote Device Management)
  • 4 button menu with LCD display
  • Heavy duty bracket allows for multiple rigging applications
  • Quick release omega clamps included
  • Multiple units can be aligned side-by-side
  • PowerTwist TR1 input/output
  • IP rated 5-pin XLR input/output
  • 3 selectable fan modes (auto, silent and full)
  • Power consumption: 1116W
  • Power supply: 100~240V, 50/60Hz
  • IP rating: IP65
  • Dimensions: 290 x 1005 x 130mm
  • Weight: 19kg
