elumen8 Mira 450 IP Pixel Batten

ELUM721



Product Code: ELUM721

Brand: elumen8



elumen8 Mira 450 IP Pixel Batten

Brand: elumen8

elumen8 Mira 450 IP Pixel Batten

Product Code: ELUM721

£869.00

39 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Technical Drawing

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




The Elumen8 Mira 450 IP Pixel Batten is a high-output, IP65-rated fixture designed for the most demanding of environments. Housing 18 x 25W RGBL quad-colour LEDs, it delivers an intense 6° beam, with optional 20°, 45°, and 60° lenses available for broader wash coverage. The batten supports full pixel mapping and is controllable via DMX, Art-Net, or sACN with selectable refresh rates up to 24kHz for flicker-free performance on camera. Built for touring and fixed installs alike, the Mira 450 features fully rotatable 4-position mounting brackets for floor-standing or truss rigging, and includes quick-release omega clamps for fast setup. Units can be seamlessly joined side-by-side or stacked vertically using the built-in tool-free link system, allowing for uninterrupted linear or grid-style arrays. With convection cooling and rugged IP-rated connectors, the Mira 450 is the ideal choice for outdoor shows, stage productions, and architectural lighting.

  • 2 year warranty
  • 18 x 25W RGBL quad-colour LEDs
  • Native 6° beam angle
  • Optional 20°, 45° and 60° diffusion lenses available
  • Selectable refresh rates: 800Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz, 24kHz
  • Full pixel mapping capabilities
  • Control: DMX, Art-Net and sACN
  • DMX channels: 4/7/9/20/75/79 selectable
  • Integral Art-Net to DMX for downstream fixture control
  • Static colour, colour temperature and manual modes
  • Built-in colour macros and programs
  • Colour temperature presets
  • 0 - 100% dimming
  • 4 dimming curves: Linear, Square Law, Inverse Square Law, S-Curve
  • Variable strobe
  • RDM (Remote Device Management)

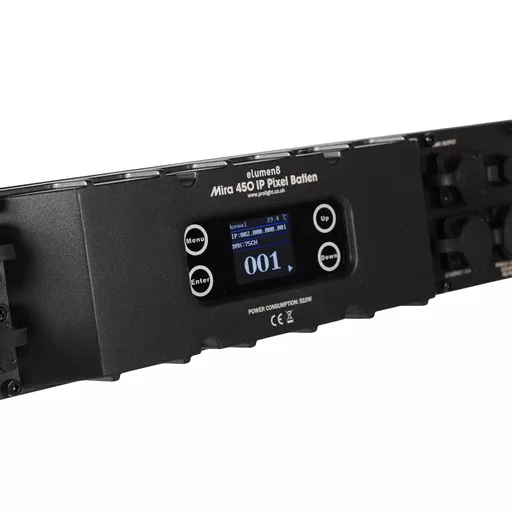

  • 4 button menu with LCD display
  • Adjustable 4-position brackets, rotatable at 90° intervals
  • Quick release omega clamps included for fast rigging
  • Tool-free seamless joining side-by-side or vertically stacked

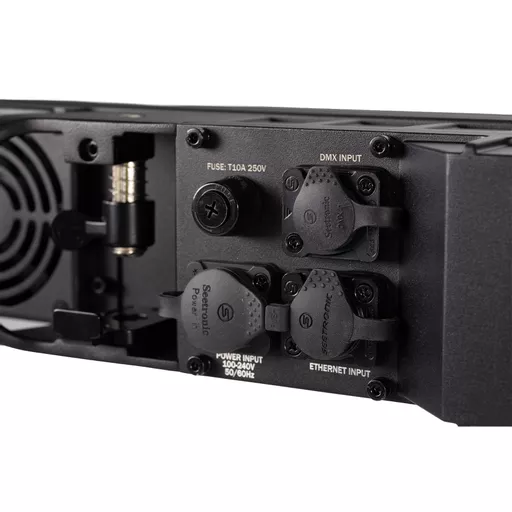

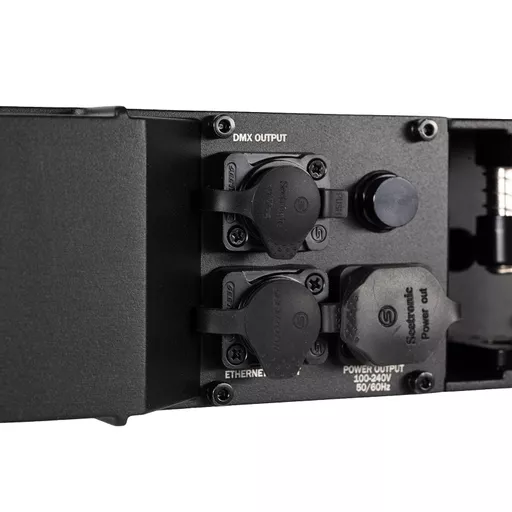

  • PowerTwist TR1 input/output
  • IP-rated 5-Pin XLR input/output
  • 3 selectable fan modes (auto, silent and full)
  • Power consumption: 510W
  • Power supply: 100~240V, 50/60Hz
  • IP rating: IP65
  • Dimensions: 220 x 1005 x 186mm
  • Weight: 11kg
