The Equinox SpectraPix Batten is a versatile one-metre RGB pixel batten designed for DJs, live events, stages, venues and creative lighting installations.

Its 224 tri-colour SMD LEDs are divided into 16 controllable segments, allowing the fixture to produce smooth colour washes, flowing chases and animated pixel effects. A wide 120° viewing angle makes the light clearly visible across dancefloors, stages and performance spaces.

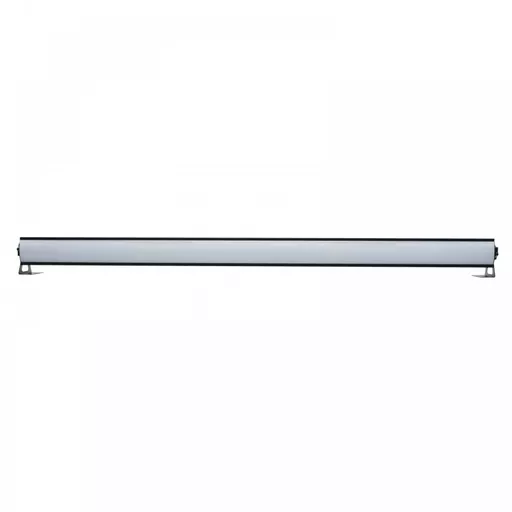

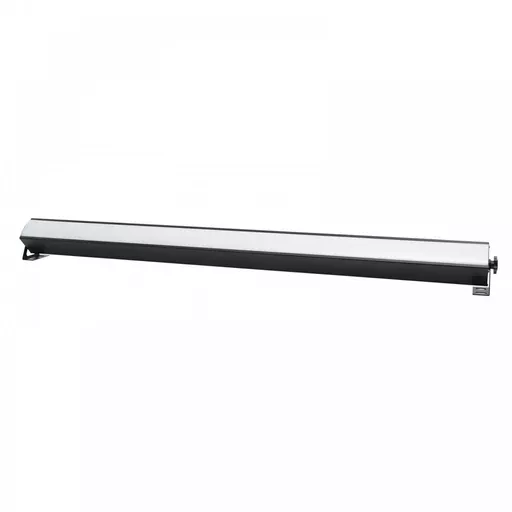

The black fixture includes interchangeable clear and frosted front screens. The clear screen produces more defined pixel effects, while the frosted screen blends the LEDs into a softer, more even wash.

16-Segment RGB Control

Each of the 16 segments contains individually controllable red, green and blue elements. This provides considerably more creative control than a standard single-colour LED batten, particularly when using the 48 or 53-channel DMX modes.

Simpler DMX modes are also available for applications where full pixel control is unnecessary. Selectable 3, 5, 24, 48 and 53-channel modes allow the SpectraPix Batten to work with both compact lighting controllers and more advanced programmed shows.

Standalone and Sound-Activated Programs

The SpectraPix Batten can be used without a DMX controller. Built-in static colours, automatic programs and sound-activated chases can be selected using the four-button control panel and LED display.

Multiple fixtures can also be connected in master/slave mode, allowing the secondary battens to follow the program running on the main unit. Program speed, sound sensitivity, dimming and variable strobe settings provide further control over the effect.

Clear and Frosted Lighting Effects

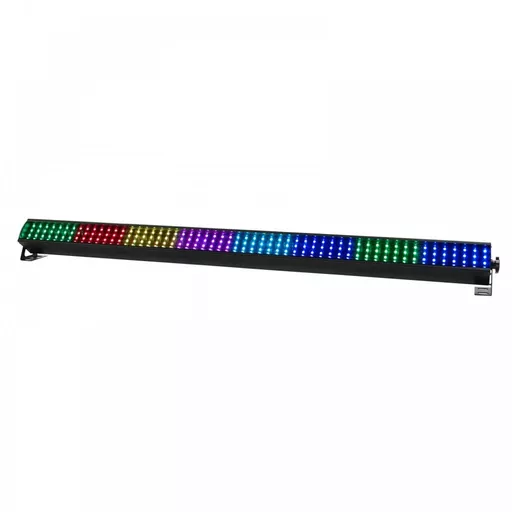

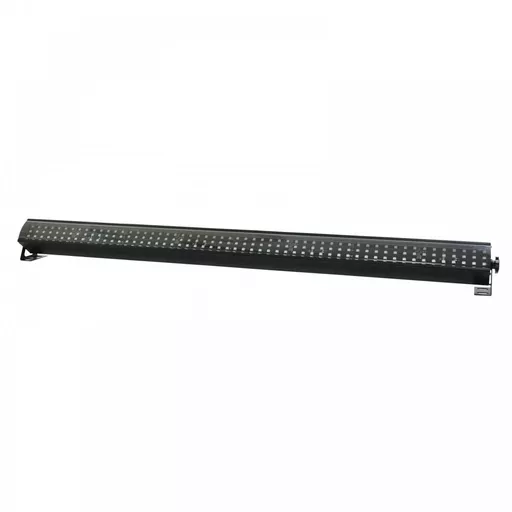

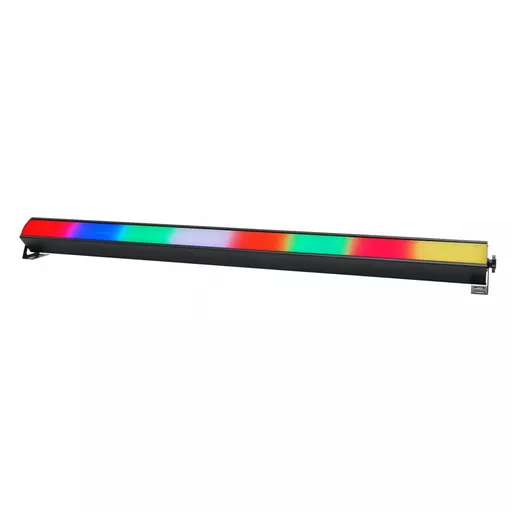

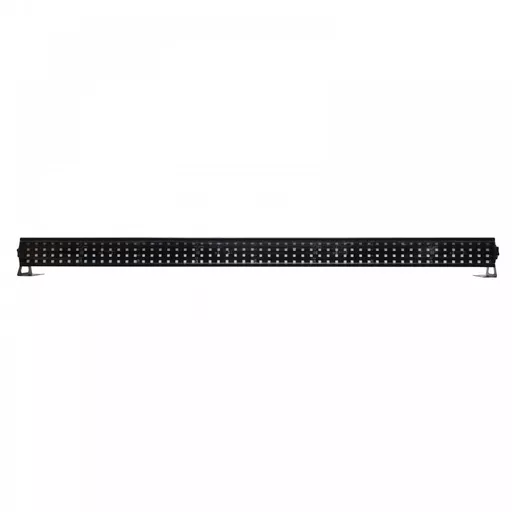

Both clear and frosted front screens are supplied with the fixture. The clear screen emphasises the individual LED segments for sharper pixel chases, while the frosted screen diffuses the output for smoother colour blending and wash effects.

This makes the batten suitable for illuminating stages, walls and backdrops as well as creating visible animated effects behind performers and DJs.

Flexible Installation and Power Linking

The included brackets can be used as floor-standing feet or as mounting points for suitable professional installations. IEC power input and output connections allow multiple compatible fixtures to share a power run.

The SpectraPix Batten is convection cooled, eliminating fan noise during performances, presentations and other noise-sensitive applications.

Key Features

• One-metre RGB LED pixel batten
• Black housing
• 224 tri-colour SMD 5050 LEDs
• LEDs divided into 16 controllable segments
• Wide 120° viewing angle
• Interchangeable clear and frosted front screens included
• Suitable for pixel effects, chases and smooth colour washes
• 10kHz refresh rate
• Selectable 3, 3, 5, 24, 48 and 53-channel DMX modes
• Static colour operation
• Automatic programs
• Sound-activated programs
• Master/slave operation
• Built-in chase effects
• Independent RGB colour mixing
• 0 to 100% electronic dimming
• Variable-speed strobe
• Adjustable program speed and sound sensitivity
• Four-button menu with LED display
• 3-pin XLR DMX input and output
• IEC power input and output
• Up to 16 fixtures can be power linked at 240V, including the first fixture
• Convection-cooled operation
• Mounting brackets and floor-standing feet included
• Power consumption: 50W
• Power supply: 100 to 240V AC, 50/60Hz
• Dimensions: 85 x 1035 x 60mm (H x W x D)
• Weight: 1.5kg

Frequently Asked Questions

Q: Can the 16 sections be controlled individually?

A: Yes. The 48 and 53-channel DMX modes provide individual RGB control over all 16 segments.

Q: Can the SpectraPix Batten be used without a DMX controller?

A: Yes. Static colours, automatic programs and sound-activated effects can be selected directly from the onboard control panel.

Q: Are both front screens included?

A: Yes. The fixture includes clear and frosted front screens, allowing you to choose between defined pixel effects and a softer blended wash.

Q: Can multiple SpectraPix Battens run together?

A: Yes. Fixtures can be connected by DMX and operated in master/slave mode. The IEC output also supports power linking, subject to the manufacturer’s stated limits.

Q: Can the batten be placed on the floor?

A: Yes. The supplied brackets can be used as floor-standing feet or for suitable professional mounting applications.

Q: Is the Equinox SpectraPix Batten suitable for outdoor use?

A: No. It is designed for indoor use and must be protected from rain, moisture and liquids.
