This Equinox SpectraPix bundle provides a complete twin-batten lighting package for DJs, live performers, venues and mobile event companies. It includes two black SpectraPix LED Battens, an Accu-Case ASC-AC-210 padded carrying case and a 3m DMX cable for linking the fixtures.

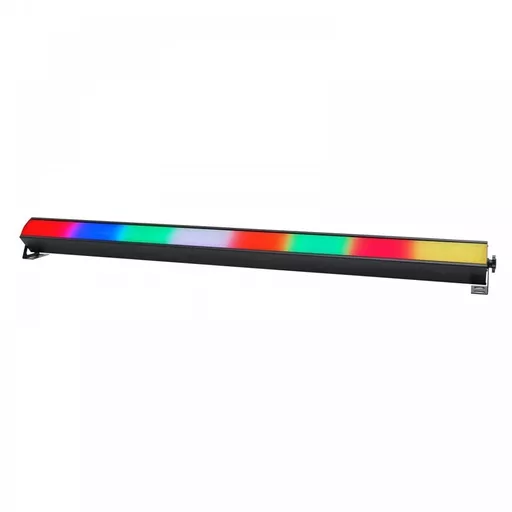

Each one-metre batten contains 224 tri-colour RGB LEDs divided into 16 controllable segments. Together, the two fixtures can produce coordinated colour washes, animated chases and pixel effects across stages, dancefloors, backdrops and performance areas.

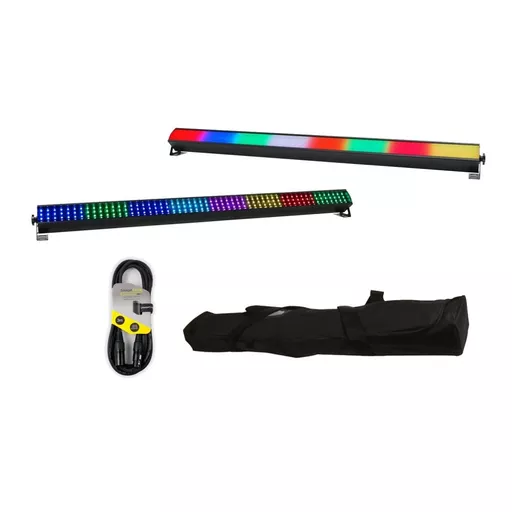

Bundle Contents

• 2 x Equinox SpectraPix LED Battens in black
• 1 x Accu-Case ASC-AC-210 padded carrying case
• 1 x 3m 3-pin XLR DMX cable

Each batten is also supplied with clear and frosted front screens, mounting brackets, adjustable knobs and a power cable.

Coordinated Pixel Effects

The 224 RGB LEDs in each batten are divided into 16 segments, providing 32 controllable segments across the complete twin-fixture package.

Selectable 3, 5, 24, 48 and 53-channel DMX modes provide options ranging from straightforward RGB colour control to independently programmed pixel effects. The included DMX cable can be used to connect the two battens for coordinated operation.

Standalone and Sound-Activated Operation

A separate DMX controller is not essential. Both battens offer static colours, automatic programs, sound-activated effects and master/slave operation.

One fixture can be set as the master and connected to the second using the included DMX cable. The second batten will then follow the selected program, making it easy to create a coordinated show without additional control equipment.

Program speed, sound sensitivity, dimming and variable strobe settings can be adjusted using the four-button control panel and LED display.

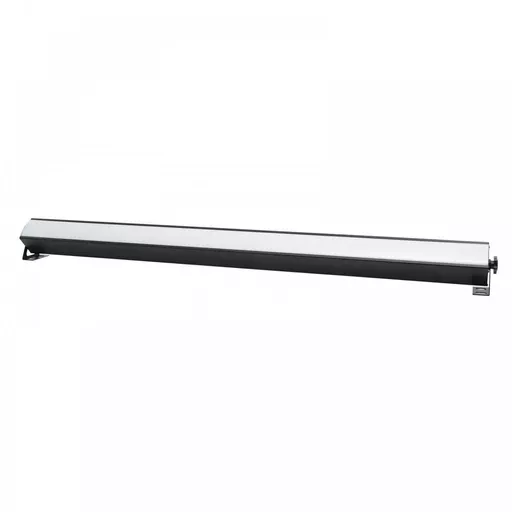

Clear and Frosted Front Screens

Each SpectraPix Batten includes clear and frosted front screens. The clear screen displays the individual LED segments more prominently for sharper pixel chases, while the frosted screen blends the output into a softer wash.

The screens can be selected to suit the application, whether the battens are being used as visible stage effects or to illuminate walls, backdrops and performance areas.

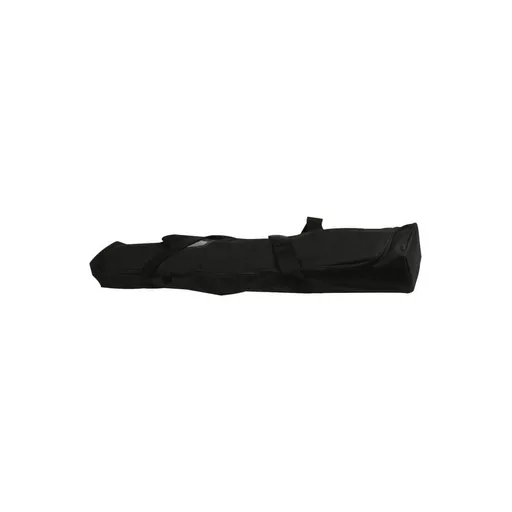

Padded Transport Case

The Accu-Case ASC-AC-210 is a padded carrying case designed to accommodate both SpectraPix Battens. It helps protect the fixtures during transport and storage while keeping the pair together between events.

The lightweight soft-case design is particularly practical for mobile DJs, bands and event companies regularly moving lighting equipment between venues.

Key Features

• Complete twin LED batten lighting bundle
• Suitable for DJs, live events, stages and venues
• Two black Equinox SpectraPix Battens
• 224 tri-colour SMD 5050 RGB LEDs per batten
• 448 RGB LEDs across the complete bundle
• 16 controllable segments per fixture
• 32 segments across both battens
• Wide 120° viewing angle
• Clear and frosted front screens included with each fixture
• 10kHz refresh rate
• Selectable 3, 3, 5, 24, 48 and 53-channel DMX modes
• Static colour, automatic and sound-activated operation
• Master/slave functionality
• Built-in chase programs
• Independent RGB colour mixing
• 0 to 100% dimming
• Variable-speed strobe
• Four-button menu with LED display
• 3-pin XLR DMX input and output
• IEC power input and output
• Convection-cooled operation
• Floor-standing and mounting brackets included
• 3m DMX cable included for linking the battens
• Accu-Case ASC-AC-210 padded case included
• Power consumption: 50W per batten
• Batten dimensions: 85 x 1035 x 60mm each (H x W x D)
• Case dimensions: 1136 x 171 x 121mm
• Batten weight: 1.5kg each

Frequently Asked Questions

Q: What is included in this bundle?

A: The bundle includes two black Equinox SpectraPix Battens, one Accu-Case ASC-AC-210 padded case and one 3m DMX cable.

Q: Can the two battens operate together without a controller?

A: Yes. The included DMX cable can connect the fixtures in master/slave mode so that the second batten follows the programs running on the first.

Q: Is a DMX controller required?

A: No. The battens have built-in static colours, automatic programs and sound-activated effects. A controller is only required for customised DMX programming.

Q: Can all 16 segments be controlled individually?

A: Yes. The 48 and 53-channel DMX modes provide individual RGB control over the 16 segments in each batten.

Q: Does the case hold both battens?

A: Yes. The Accu-Case ASC-AC-210 is designed to carry and protect both SpectraPix Battens.

Q: Will I need another DMX cable when using a controller?

A: The included cable links the two battens together. An additional DMX cable is normally required to connect an external controller to the first fixture.

Q: Can the battens be used outdoors?

A: No. The SpectraPix Battens are designed for indoor use and must be protected from rain, moisture and liquids.
