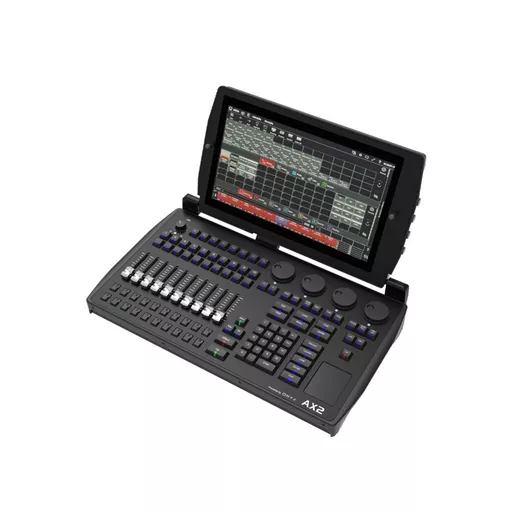

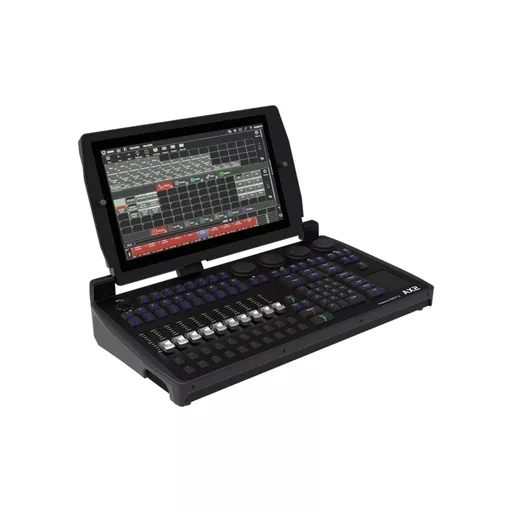

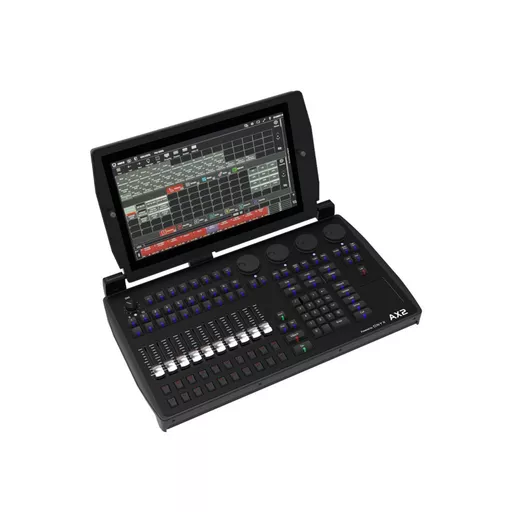

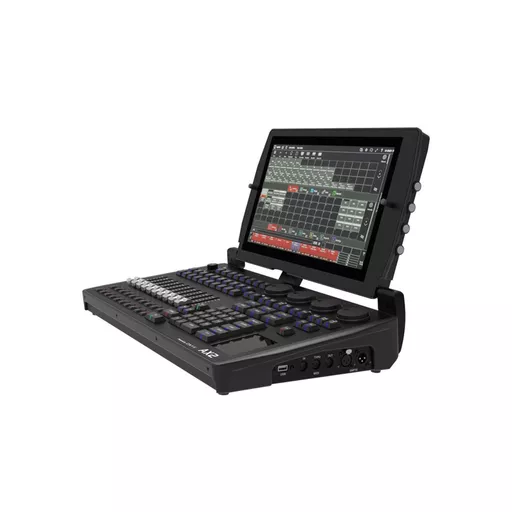

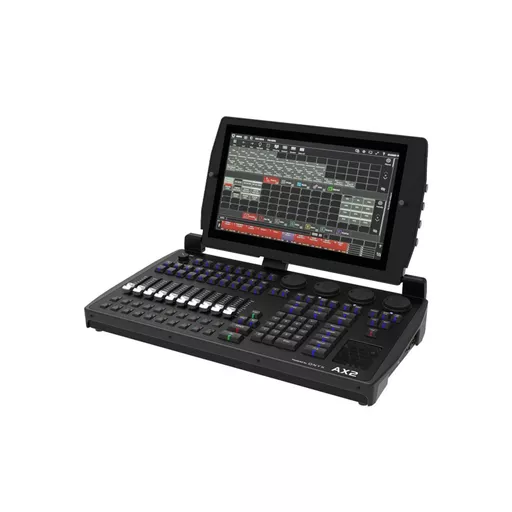

The ADJ AX2 is a compact, fully integrated professional lighting controller powered by the ONYX platform from Obsidian Control Systems. Combining touchscreen operation with a comprehensive physical control surface, it provides lighting designers with the speed and flexibility required for touring productions, theatres, live events, houses of worship and permanent venue installations.

Integrated processing supports up to 32 DMX universes directly from the console without requiring a separate external processing system. Four five-pin DMX/RDM ports provide physical universe connections, while dual Gigabit network ports support Art-Net, sACN and ONYX X-Net for larger networked lighting systems.

Touchscreen and Hands-On Lighting Control

A bright, adjustable 15.6-inch Full HD multi-touch display provides a clear view of the ONYX programming interface. The main screen is supported by an additional 3.5-inch RGB touchscreen for accessing parameter groups, effects, fanning and global timing controls.

Ten 60mm playback faders each have four assignable function buttons, while eight rotary encoders provide direct fixture-parameter control. A full numerical keypad, command keys, dedicated Grand Master and Master Go controls help experienced programmers work quickly without relying entirely on the touchscreen.

ONYX Software with Integrated DYLOS Pixel Engine

The ONYX platform provides a professional programming environment for controlling conventional fixtures, moving heads, LED lighting and complex networked systems. Its scalable workflow makes the AX2 suitable for both fixed installations and touring productions.

The integrated DYLOS media engine adds five zones of pixel control, allowing media, animations and effects to be mapped across compatible pixel-controlled fixtures. SMPTE and MIDI connectivity also supports timecoded productions, show control and multimedia applications.

Powerful Integrated Hardware

An Intel i5 Hexa-Core processor, 16GB of DDR4 RAM and a 500GB NVMe storage drive provide responsive operation and fast show loading. The console uses a quiet thermal design with copper heat-pipe cooling and runs a Windows 11 IoT Embedded operating system.

Two DisplayPort connections support up to two additional 4K touch displays, providing more workspace for fixture views, playbacks, cue lists and programming windows.

Key Features

• Fully integrated professional DMX lighting controller
• Powered by Obsidian Control Systems’ ONYX platform
• Integrated processing for up to 32 DMX universes
• DYLOS media engine with five zones of pixel control
• Adjustable 15.6-inch Full HD multi-touch display
• 1920 × 1080 main-screen resolution
• Internal 3.5-inch RGB touchscreen
• Support for two external 4K touch displays
• Ten 60mm playback faders
• Four assignable function buttons per playback
• Eight rotary encoders with push functionality
• Eight customisable multifunction keys
• Full numerical keypad and command-key section
• Dedicated Grand Master control
• Master Go section with Go, Pause, Snap and Release
• Four five-pin DMX/RDM universe inputs and outputs
• Dual Gigabit Ethernet ports
• Art-Net, sACN and ONYX X-Net support
• MIDI In, Out and Thru connections
• MIDI Show Control, MIDI notes and MIDI timecode support
• SMPTE timecode input and output
• Two DisplayPort outputs supporting resolutions up to 4K
• Four USB 3.0 ports and one USB 2.0 port
• 3.5mm microphone input and audio output
• Compatible with supported Windows USB touchscreens
• Intel i5 Hexa-Core processor
• 16GB DDR4 RAM
• 500GB NVMe M.2 storage
• Integrated graphics processor
• Windows 11 IoT Embedded operating system
• Quiet copper heat-pipe cooling system
• Connection for the included XLR desk lamp
• External 100–240V AC to 12V DC power supply included
• Maximum power output from the power supply: 132W
• Dimensions (W × H × D): 540 × 121 × 300mm
• Weight: 4.6kg

Frequently Asked Questions

Q: How many DMX universes can the ADJ AX2 control?

A: The AX2 has integrated processing for up to 32 DMX universes. Four universes can be connected directly through the five-pin DMX/RDM ports, with additional universes distributed through Art-Net or sACN networking.

Q: Does the AX2 require an external computer?

A: No. The AX2 is a fully integrated lighting console with its own processor, memory, storage, operating system and touchscreen. An external computer is not required for normal operation.

Q: Which lighting-control software does the AX2 use?

A: It runs the professional ONYX lighting-control platform developed by Obsidian Control Systems.

Q: Can the AX2 control pixel-mapped lighting fixtures?

A: Yes. The integrated DYLOS media engine provides five zones of pixel control for creating media-driven looks, animations and effects across compatible pixel-controlled fixtures.

Q: Can additional monitors be connected?

A: Yes. Two DisplayPort connections support up to two external 4K touch displays. Supported Windows USB touchscreens can also be used.

Q: Does the AX2 support timecoded lighting shows?

A: Yes. It has SMPTE timecode input and output, together with MIDI In, Out and Thru connections for MIDI timecode, MIDI Show Control and MIDI notes.

Q: Is RDM supported?

A: Yes. The four locking five-pin XLR ports support DMX and RDM universe input or output.

In the Box

• ADJ AX2 lighting controller
• RGB LED desk lamp with angled XLR connector
• Protective dust cover
• USB cable
• 12V DC, 11A external power supply
• 1.5m IEC mains cable
• USB recovery flash drive
• Installation manual
