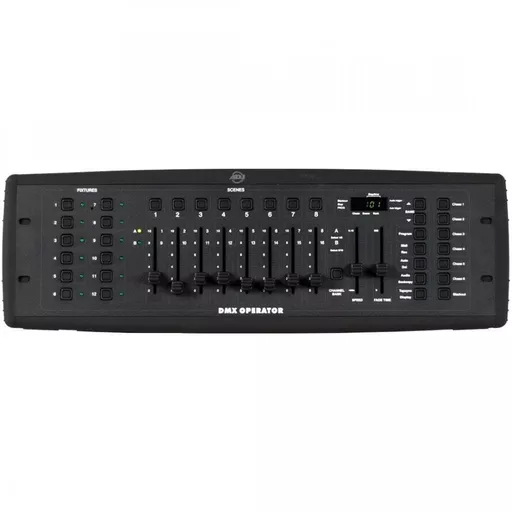

ADJ DMX Operator DMX Controller with 192 DMX Channels

DMXOPERATOR



Product Code: DMXOPERATOR

Brand: ADJ



ADJ DMX Operator DMX Controller with 192 DMX Channels

Brand: ADJ

ADJ DMX Operator DMX Controller with 192 DMX Channels

Product Code: DMXOPERATOR

£120.00

3 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




ADJ's DMX Operator controls up to 192 DMX channels. With it, you can record up to 6 chases which you can then playback with separate fade and step speeds. The 8 individual faders provide easy controllability for any DMX 512 intelligent fixture.

ADJ's DMX Operator Controller has 12 individual fixture buttons which allow you to control up to 12 separate intelligent lighting fixtures of up to 16 DMX channels each. With ADJ's DMX Operator Controller, you can record up to 6 chases with separate fade times and step speeds. The 8 individual channel faders provided you with easy controllability of any DMX512 moving light.


  • An affordable solution for controlling DMX products
  • Control up to192 DMX channels
  • Programmable up to 240 scenes
  • 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
  • Fixtures with less than 16 DMX channels may be combined on 1 DMX scanner button
  • Record up to 6 programmable chases with fade time and speeds
  • 8 individual faders provide easy programmability for Intelligent Lighting or Dimmer Packs
  • MIDI controllable
  • DMX-512, 3-pin XLR signal
  • Built-in Microphone
  • Remote control: Blackout controlled by MIDI input signal
  • Blind function - override chases on the fly
  • Use in conjunction with the ELP-DMX20 or the ELD-DMX20
  • Polarity switch to accommodate different types of cable requirements
  • Power input: DC 9V-12V, 220 mA min. power supply included
  • Dimensions: 5.25" x 19" x 2.5" (133 x 483 x 64 mm)
  • 19 in. rack mount - 3 rack spaces
  • Weight: 2.3 kgs
