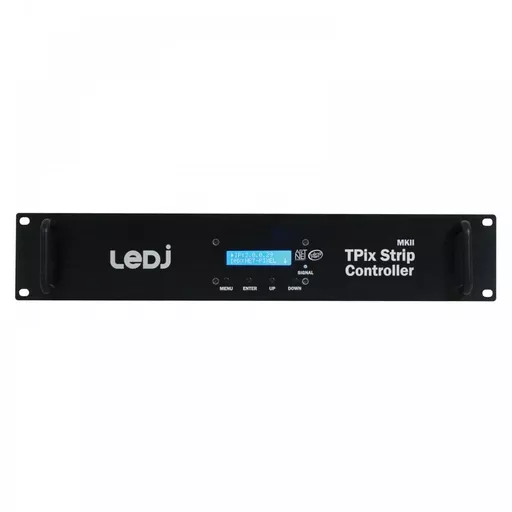

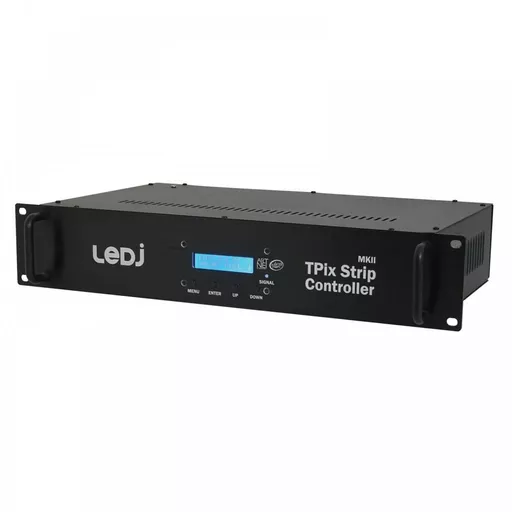

LEDJ TPix Strip Controller 40/80 MKII

LEDJ487



Product Code: LEDJ487

Brand: LEDJ



LEDJ TPix Strip Controller 40/80 MKII

Brand: LEDJ

LEDJ TPix Strip Controller 40/80 MKII

Product Code: LEDJ487

£409.00

33 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




This 48V system allows for greater cable lengths between TPix MKII controllers and TPix MKII strips. A host of built in macros can be triggered from the menu system or via DMX for simple operation, or for full pixel control, the Art-Net or Kling-Net protools may be used. The on-board network  switch allows for the Art-Net or Kling-Net to be fully daisy chained for fast connection.




  • DMX channels: 10/55 or 480 selectable
  • Art-Net channels: 1920 (based on 16 strips of 120 channels each)
  • 4 push button menu with LCD display

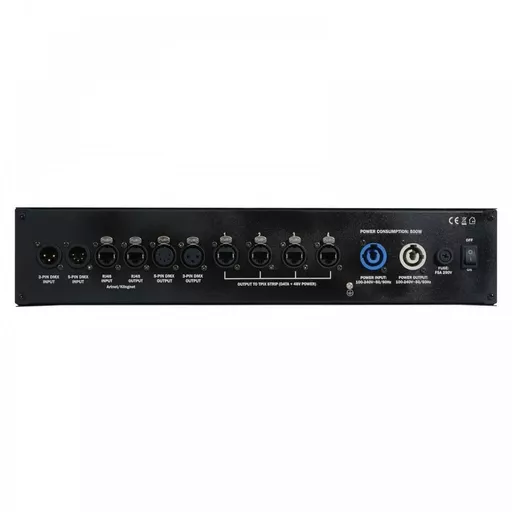

  • 5-Pin XLR input/output
  • 3-Pin XLR input/output
  • etherCON input/output (Art-Net/Kling-Net)
  • Four RJ45 sockets for outputs to TPix Strip
  • Power consumption: 500W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: F5A 250V
  • Dimensions (H x W x D): 88 x 483 x 290mm
  • Weight: 3.9kg
