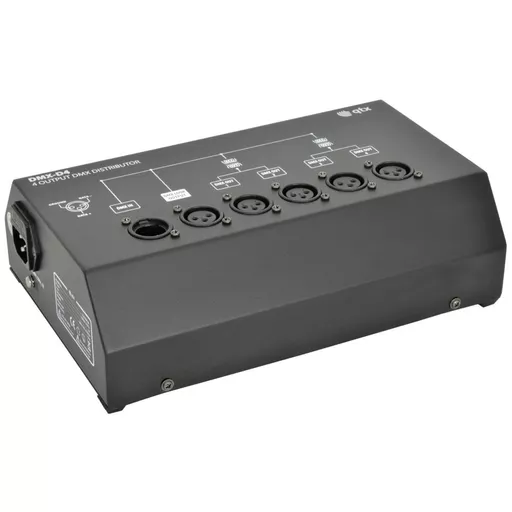

QTX DMX-D4 4-Way DMX Booster / Distributor

DMX-D4



Product Code: DMX-D4

Brand: QTX



QTX DMX-D4 4-Way DMX Booster / Distributor

Brand: QTX

QTX DMX-D4 4-Way DMX Booster / Distributor

Product Code: DMX-D4

£76.00

71 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing.

  • DMX Loop out or DMX terminated (supplied)
  • 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
  • Powered by mains to boost signal over a long distance

  • Power supply 230Vac, 50Hz (IEC)
  • DMX inputs 1
  • DMX outputs 4
  • Dimensions 248 x 165 x 70mm
  • Weight 1.5kg
